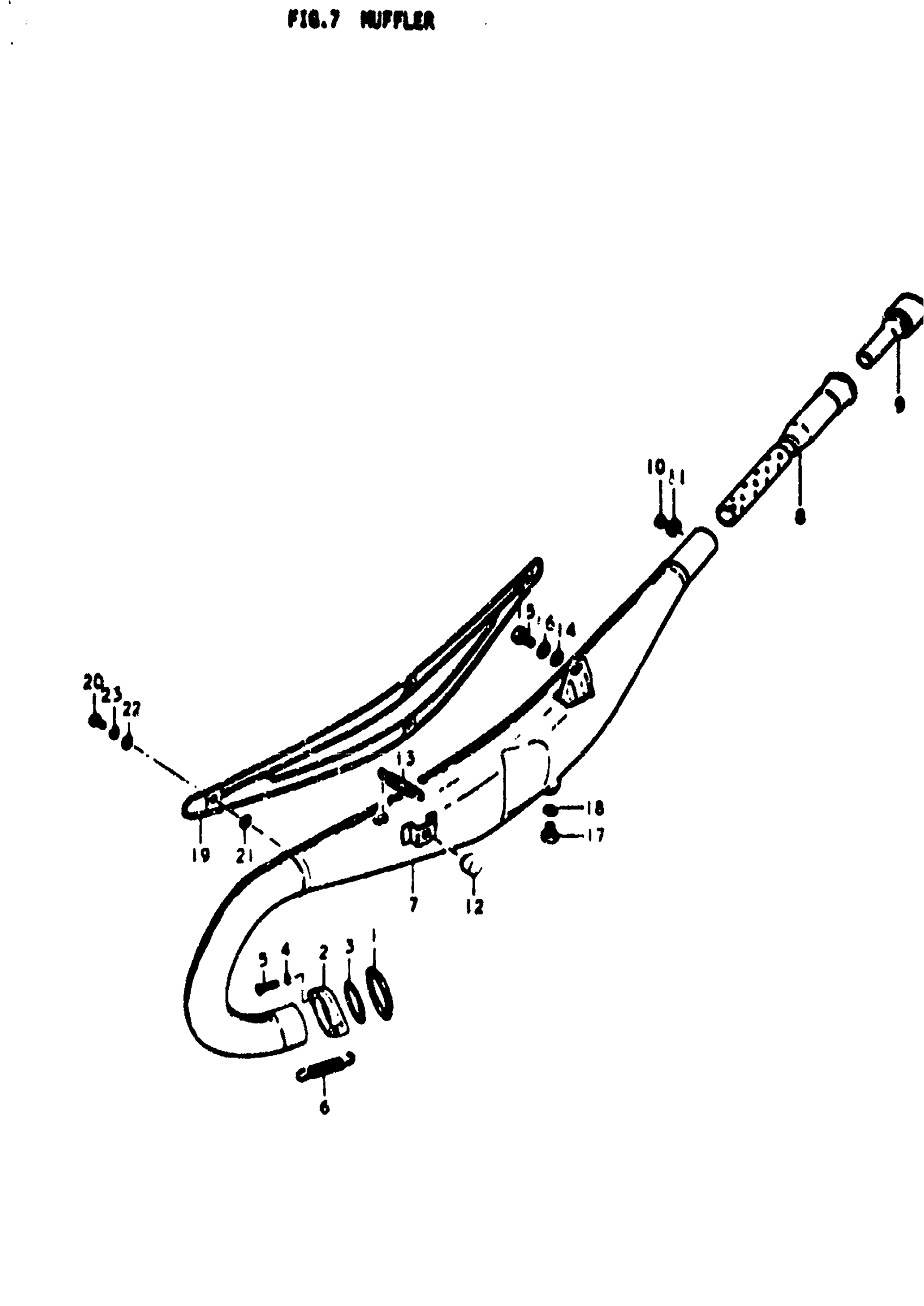

Suzuki TS185 (1972) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE | 45x50.5x4.8 RESIN

14181-28080

$10.11

2

CLAMP, EXHAUST PIPE

14182-28000

$16.49

3

CUSHION,EXH PIP | 39x46x2 This part replaces 14184-28010.

14184-28011

$4.62

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT This part replaces 01112-06208.

01500-06207

$2.28

6

SPRING

09443-11002

$3.10

7

MUFFLER ASSY | Includes Item(s) 8 - 11

14301-29602

Unavailable

8

ARRESTOR, SPARK

14810-29602

Unavailable

9

TUBE, CLEAN OUT

14850-29600

Unavailable

10

SCREW This part replaces 02111-05087.

02112-05087

$1.49

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

CUSHION | R

09329-10001

$2.12

12

CUSHION | J

09321-10002

$2.22

13

SPRING

09443-11002

$3.10

14

FUEL TANK UPPER WASHER | R This part replaces 09320-08005.

09161-08006

$2.07

15

BOLT, REAR | R This part replaces 01122-08208.

01500-08207

$2.53

15

PLUG, DRAIN | J This part replaces 01122-08168.

01500-0816B

$2.50

16

WASHER (8.5X18X2.0) | 8.5x18x2 This part replaces 09160-08013.

09160-08120

$2.19

17

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

18

GASKET | 10x14 2x2

09168-10002

$2.13

19

COVER, MUFFLER

14780-29001

Unavailable

20

SCREW This part replaces 02112-06128.

02112-06127

$1.84

21

GASKET,MUFFLER | 6.2x12x1.5 This part replaces 09168-06005.

09168-06105

$2.12

22

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
