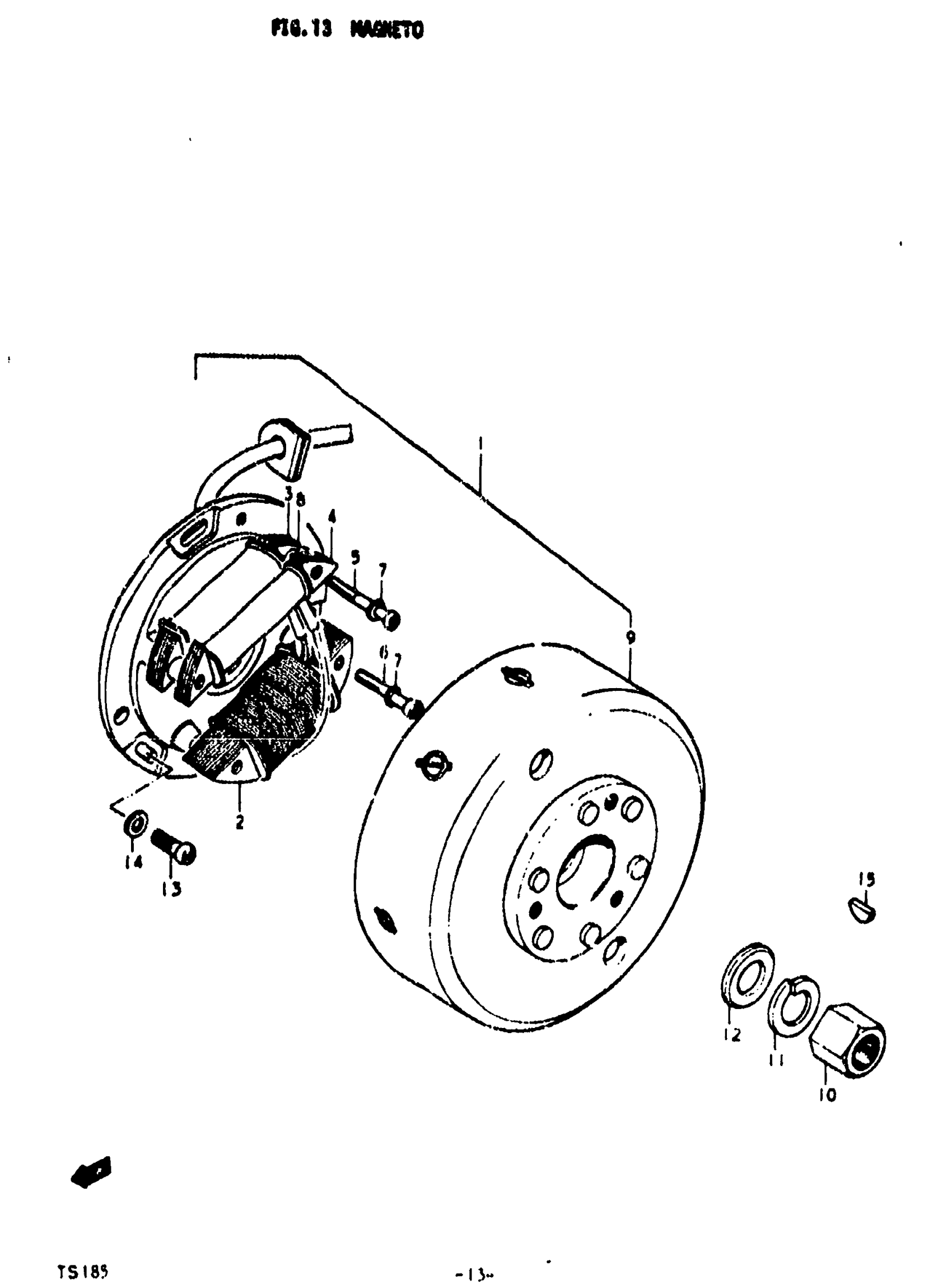

Suzuki TS185 (1972) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 9

32100-30620

Unavailable

2

COIL, LIGHTING

32120-30620

Unavailable

3

COIL, PRIMERY

32140-30020

Unavailable

4

COIL, PUISER

32150-30020

Unavailable

5

SCREW This part replaces 02111-04358.

02112-0435B

Unavailable

6

SCREW (4X30) This part replaces 02111-04308.

09125-04023

$2.30

7

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

8

SPACER

32160-30020

Unavailable

9

ROTOR, FLYWHEEL

32102-30620

Unavailable

10

NUT

09140-14011

Unavailable

11

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

12

WASHER | 14x27x3

09160-14015

Unavailable

13

SCREW This part replaces 02112-05168.

02112-05167

$1.97

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

KEY This part replaces 08341-31049.

09420-04008

$3.42
