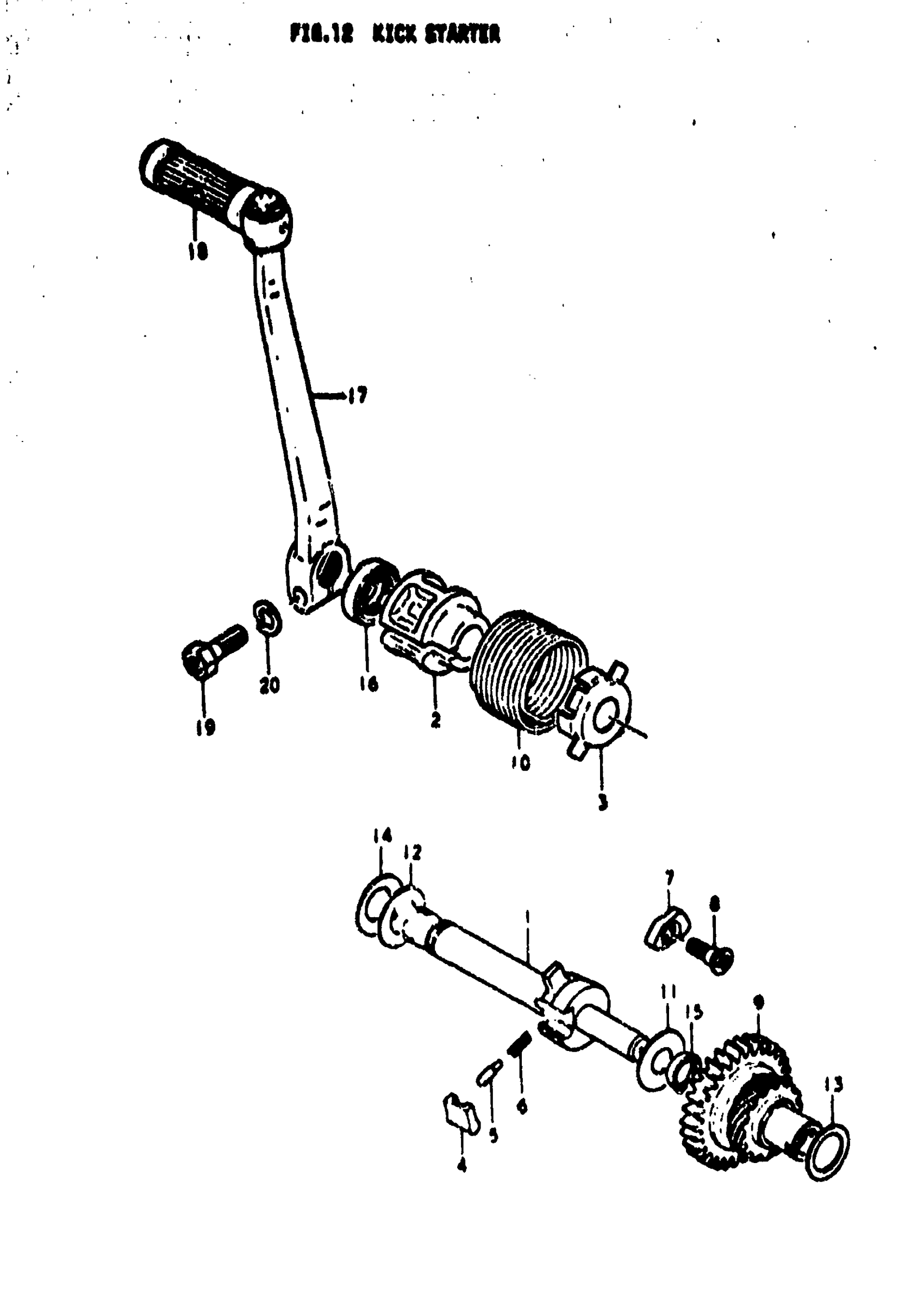

Suzuki TS185 (1972) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STAR This part replaces 26211-23000.

26211-23010

Unavailable

2

GUIDE, SPRING

26221-25030

Unavailable

3

HOLDER, SPRING

26222-25000

Unavailable

4

PAML, KICK STARTER

26231-20000

$7.74

5

PIN

09209-05011

$2.20

6

SPRING

09440-04010

$1.54

7

LIFTER, POWL

26232-01000

$6.38

8

SCREW

09139-06002

$2.38

9

GEAR, KICK STARTER DRIVE | NT:31/15 FROM 26240-28001

26240-28002

Unavailable

10

SPRING

09448-48001

Unavailable

11

WASHER | 12x30x1.5

08211-12302

$2.16

12

WASHER | 16x30.5x0.5

09160-16016

$2.04

13

SHIM (20X28X1) | 20x27x1 This part replaces 08211-20281.

09181-20167

$2.62

14

WASHER | 16x30.5x1.5

09164-16001

$2.12

15

OIL SEAL, DRIVE GEAR

09284-12006

Unavailable

16

SEAL,OIL(16X30X This part replaces 09285-16002.

09285-16005

$2.75

17

LEVER ASSY, KICK STARTER | R; TO 26300-29002 WITH 01122-08458AND 09180-08001

26300-29001

Unavailable

17

LEVER ASSY,KICK | J; FROM 26300-29002; Includes Item(s) 18 This part replaces 26300-12002.

26300-29004

$61.90

18

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

19

BOLT This part replaces 01122-08258.

01500-08257

$2.50

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
