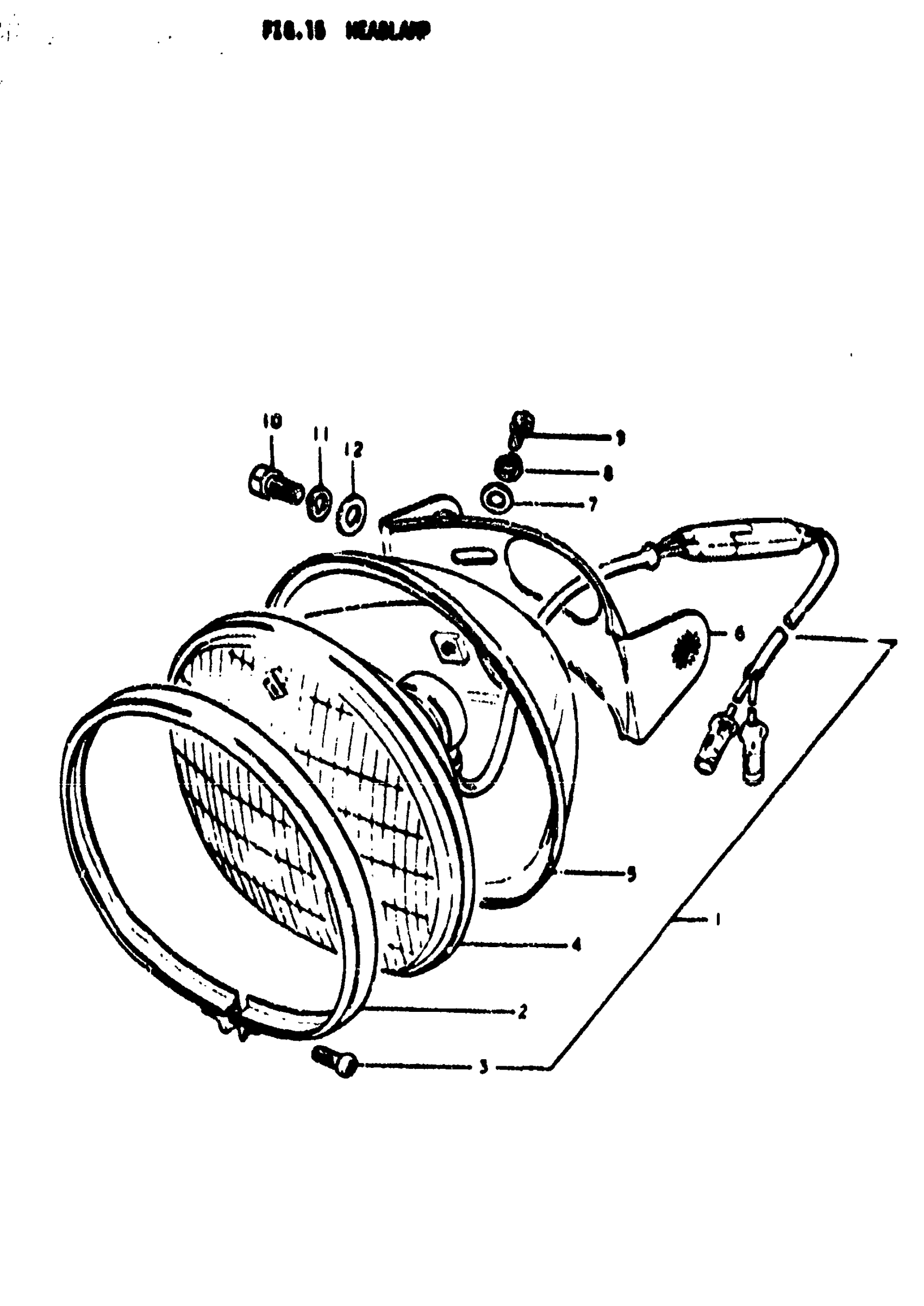

Suzuki TS185 (1972) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-20610

Unavailable

2

RIM, HEAD LAMP

35127-20610

Unavailable

3

SCREW This part replaces 02111-04107.

02112-04107

$1.55

4

UNIT, HEAD LAMP | 6V,25/25W

35121-20611

Unavailable

5

RIM, UNIT

35131-20610

Unavailable

6

BRACKET, HEED LAMP

35151-20610

Unavailable

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

9

BOLT This part replaces 01112-06108.

01500-06107

$2.06

10

BOLT This part replaces 01122-10208.

01500-1020B

$3.16

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

WASHER (10.5X22X2.3) | 10.5x22x2.5 This part replaces 09160-10037.

09160-10039

$2.26
