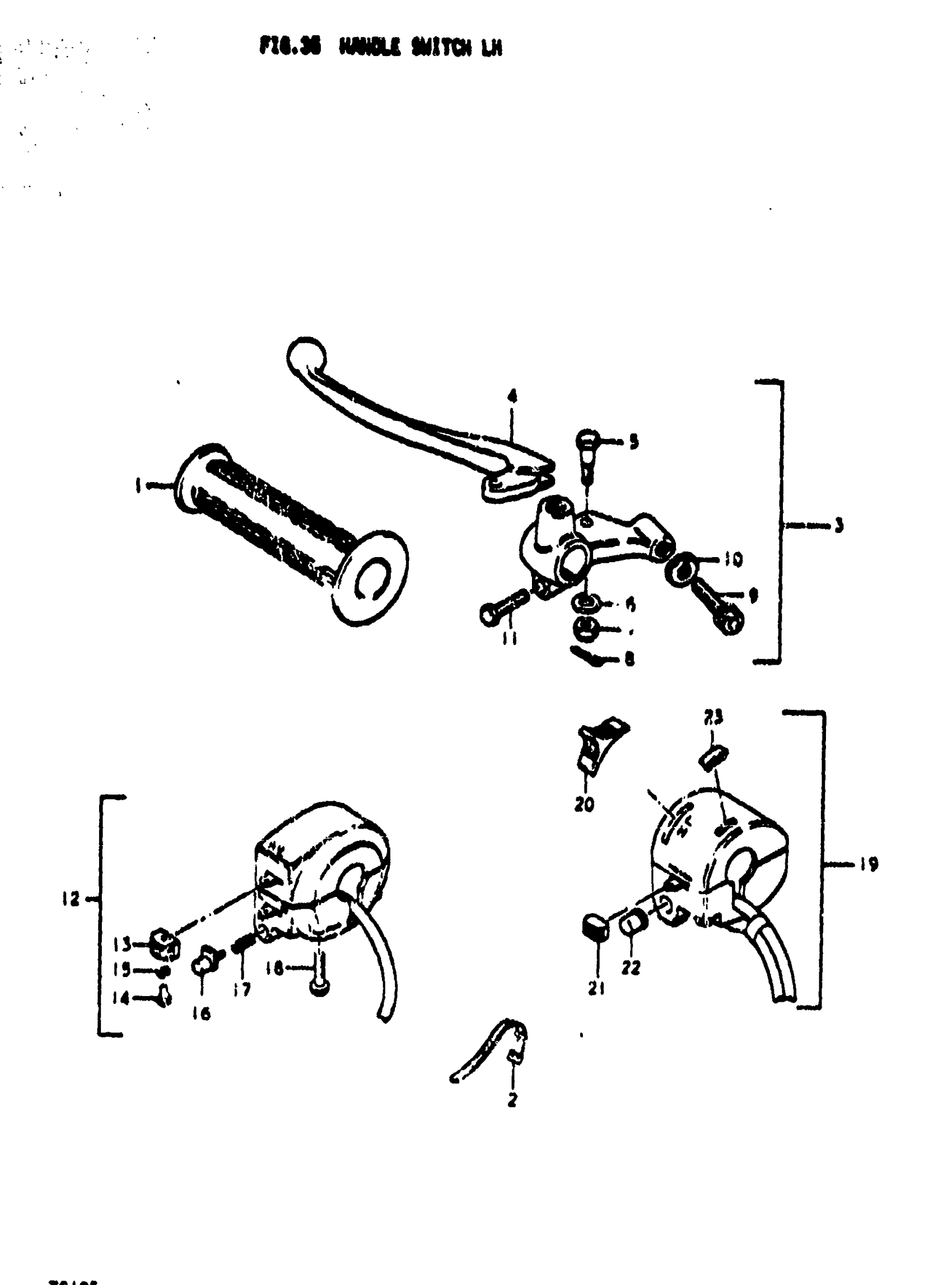

Suzuki TS185 (1972) HANDLE SWITCH LH Diagram

#

Description
Price

1

GRIP, LM

57211-15110

Unavailable

2

BAND | L:120

09407-12402

$3.04

3

LEVER ASSY, CLUTCH | R; TO 57500-18012 WITH 56741-31700

57500-18610

Unavailable

3

LEVER ASSY, CLUTCH | J; Includes Item(s) 4 - 11 This part replaces 57500-18012.

57500-30501

Unavailable

4

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

Unavailable

5

BOLT This part replaces 57451-11010.

01500-06207

$2.28

6

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.84

7

NUT, PIVOT

57433-11010

$5.64

8

PIN This part replaces 04111-16158.

04111-1620A

$1.49

9

ADJUSTER, CABLE

57441-11010

$5.62

10

NUT, CABLE ADJUSTER

57442-11010

$2.79

11

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

12

SWITCH ASSY, HANDLE LH | R; TO 57700-28611; Includes Item(s) 13 - 18 This part replaces 57700-28600.

57700-28611

Unavailable

13

KNUB, SWITCH | R; FROM 57742-26010

57742-26010

Unavailable

14

SCREW | R This part replaces 02111-03067.

02112-0306B

$1.59

15

WASHER,LOCK | R This part replaces 08321-21038.

09162-03001

$1.49

16

BUTTON, HORN | R

57850-31010

Unavailable

17

SPRING, HORN BUTTON | R

57761-26010

Unavailable

18

SCREW | R

09125-05109

Unavailable

19

SWITCH ASSY, HANDLE LH | J; Includes Item(s) 20 - 23 This part replaces 57700-28610.

57700-28611

Unavailable

20

KNOB, DIMMER SWITCH | J; FROM 57712-28050

57712-28051

Unavailable

21

KNOB, TURN SIGNAL SWITCH | J

57742-28050

Unavailable

22

BUTTON, HORN | J

57751-28050

Unavailable

23

CAP | J

57715-28610

Unavailable
