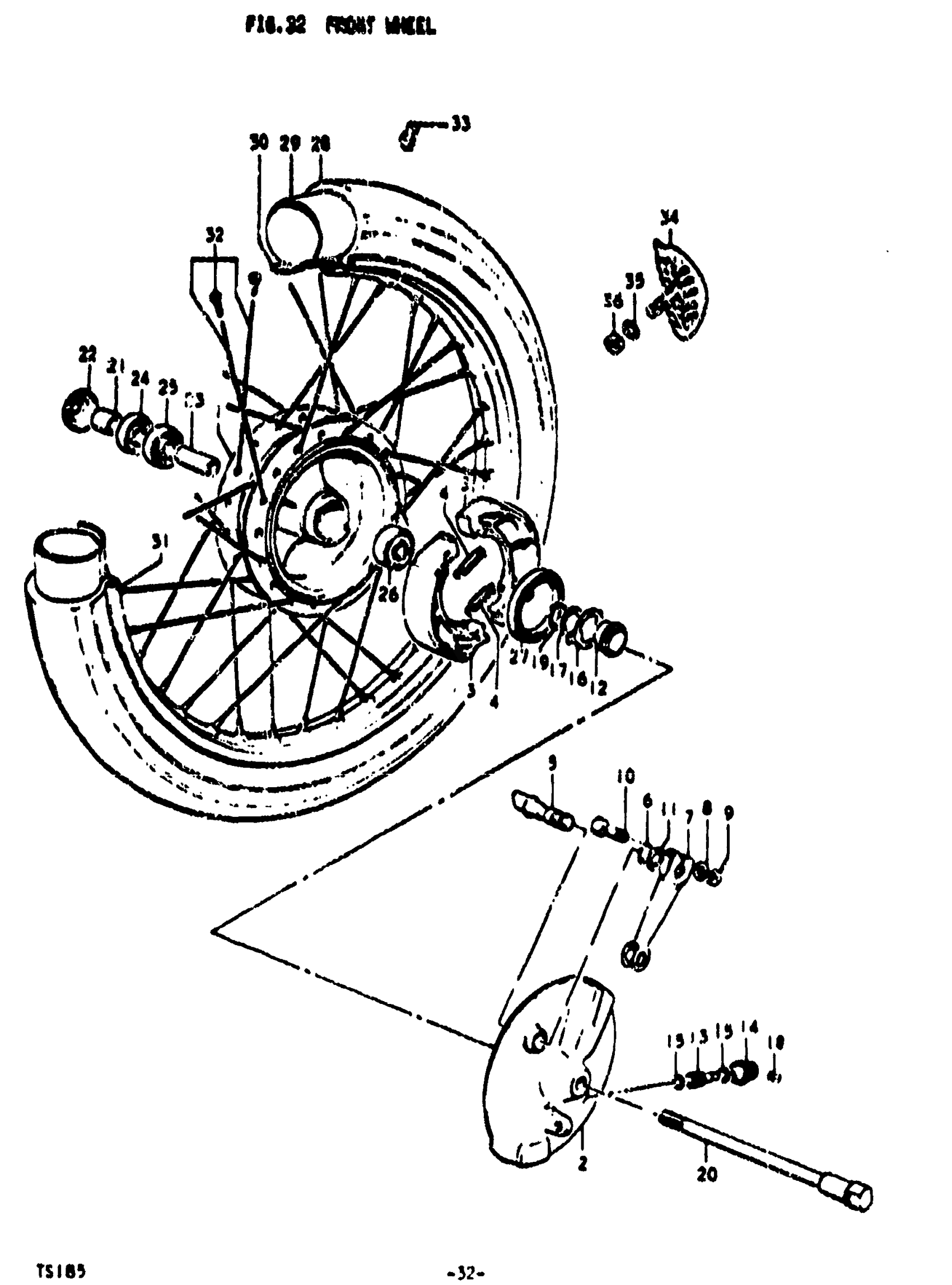

Suzuki TS185 (1972) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54110-28001.

54110-28003

Unavailable

2

PAUL, BRAKE ANGHOR

54210-28002

Unavailable

3

SHOE/SPRING SET | TO 54410-01005 This part replaces 54410-01004.

54400-35860

$36.32

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM | TO 54441-01002

54441-28001

Unavailable

5

SHAFT, BRAKE CAM

54441-01002

$18.80

6

DUSY SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM | FROM 54451-03001 TO 54451-03602 This part replaces 54451-03601.

54451-03002

$16.87

7

LEVER, BRAKE CAM | FROM 54451-03602

54451-03002

$16.87

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER | 6x31 This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER

09160-12011

$1.54

12

NO DESCRIPTION AVAILABLE This part replaces 54611-28000.

54611-28002

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 54621-28000.

54621-28001

Unavailable

14

BUSHING, METER DRIVEN GEAR

54632-01001

$12.80

15

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER, METER DRIVE GEAR

54661-07000

$4.52

17

WASHER | 18.5x24x1

09160-18002

$2.38

18

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

19

CIRCLIP

08331-11189

Unavailable

20

AXLE, FRONT

54711-28000

Unavailable

21

SPACER | 12x18x16.5

09180-12040

$8.35

22

COVER, FRONT HUB DUST SEAL | FROM 54892-28000

54892-28001

Unavailable

23

SPACER (12.5X19X52) | 12.6x19x52 This part replaces 09180-12041.

09180-12144

$10.30

24

SEAL,OIL (18X32X7) This part replaces 09284-18002.

09285-18002

$5.39

25

BEARING This part replaces 08113-62010.

08113-6201B

$10.15

26

BEARING This part replaces 08143-62010.

08143-6201B

$10.80

27

OIL SEAL This part replaces 09285-43001.

09283-43004

$14.03

28

TIRE, FRONT | 3.00-19 SEMI-KNOBBY

55100-29600

Unavailable

29

TUBE, INNER | 3.00-19

55200-29010

Unavailable

30

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-29010.

55261-15020

$3.15

31

RIM, WHEEL | 1.40x19

55311-29600

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 55300-28806.

55320-28020

Unavailable

33

BALANCER WHEEL (30G) | 30GM This part replaces 55412-11000.

55413-41F00

$7.50

34

STOPPER, BEAD

65270-28600

$54.75

35

WASHER This part replaces 08322-11088.

08322-01087

$2.13

36

NUT This part replaces 08312-11088.

08310-00087

$2.13
