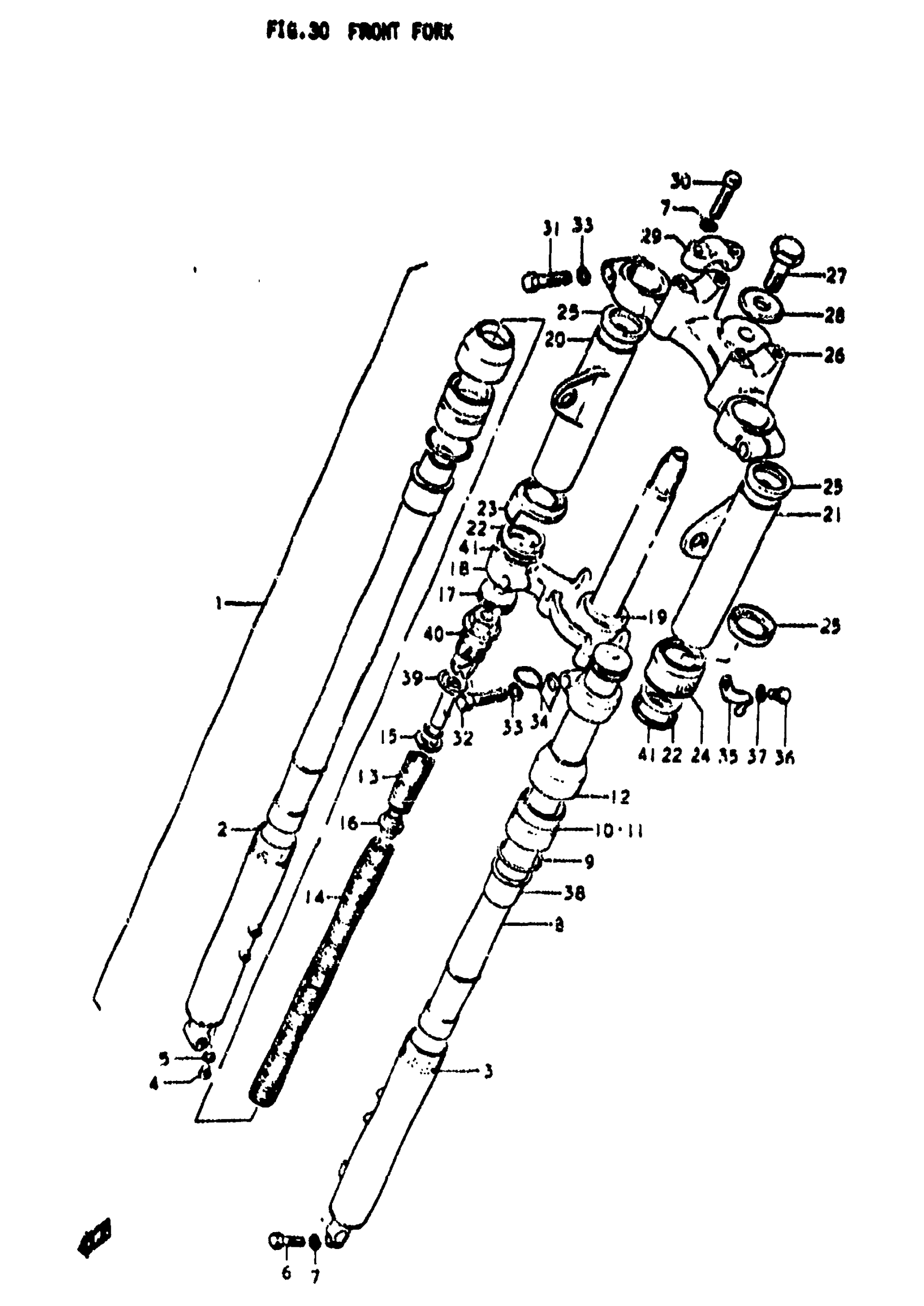

Suzuki TS185 (1972) FRONT FORK Diagram

#

Description
Price

1

FORK ASSY, FRONT | Includes Item(s) 2 - 41

51100-29601

Unavailable

2

TUBE, OUTER RH

51130-28600

Unavailable

3

TUBE, OUTER LM

51140-28600

Unavailable

4

SCREW This part replaces 02111-04087.

02112-04087

$1.49

5

GASKET

51183-03010

$2.07

6

BOLT This part replaces 01122-08258.

01500-08257

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

TUBE, INNER

51110-28010

Unavailable

9

O RING, OUTER TUBE NUT

51154-07010

Unavailable

10

NUT, OUTER TUBE | FROM 51150-25010

51150-25011

Unavailable

11

OIL SEAL | FROM 51153-08010

51153-08011

Unavailable

12

DUST SEAL

51173-25010

$7.19

13

SPRING A

51171-29010

Unavailable

14

SPRING B | L:360

51184-29010

Unavailable

14

SPRING B | L:298.5

51184-29011

Unavailable

15

GUIDE, SPRING

51172-28010

Unavailable

16

SPACER, SPRING GUIDE | FROM 51192-29010

51192-29011

Unavailable

17

CAP, INNER TUBE

51189-29010

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 51410-28011.

51410-36260

Unavailable

19

RACE, OUTER

51621-33001

$16.25

20

COVER, FORK RH

51530-28601

Unavailable

21

COVER, FORK LH

51540-28601

Unavailable

22

CUSHION, FORK COVER LOWER | RJ This part replaces 51553-25010.

51553-25210

$4.68

23

COVER, STEERING STEM RH

51554-28010

Unavailable

24

COVER, STEERING STEM LH

51557-28010

Unavailable

25

GUIDE, COVER

51551-25010

Unavailable

26

HEAD, STEERING STEM | FROM 51311-28012-019 This part replaces 51311-28210-019.

51311-29320-291

Unavailable

27

BOLT This part replaces 51351-20010.

51351-29400

$31.22

28

WASHER, STEERING STEM

51356-22011

Unavailable

29

HOLDER, HANDLEBAR

56211-22011

Unavailable

30

BOLT This part replaces 01221-08307.

01204-08307

$1.99

31

BOLT, INNER TUBE UPPER

51451-15110

Unavailable

31

BOLT, INNER TUBE UPPER

51451-15111

Unavailable

32

BOLT, INNER, TUBE LOWER | FROM 51451-28011

51451-28012

Unavailable

33

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

34

CLIP, CABLE

51455-28010

Unavailable

35

CLIP, CABLE | FROM 51453-05110

51453-30011

Unavailable

36

SCREW This part replaces 02112-06108.

02112-06107

$1.49

37

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

38

NO DESCRIPTION AVAILABLE This part replaces 51152-25010.

51152-25011

Unavailable

39

O RING This part replaces 51181-25010.

51181-29401

$3.37

40

CAP, INNER TUBE

51180-29010

Unavailable

41

GUIDE, CUSHION

51558-28010

Unavailable
