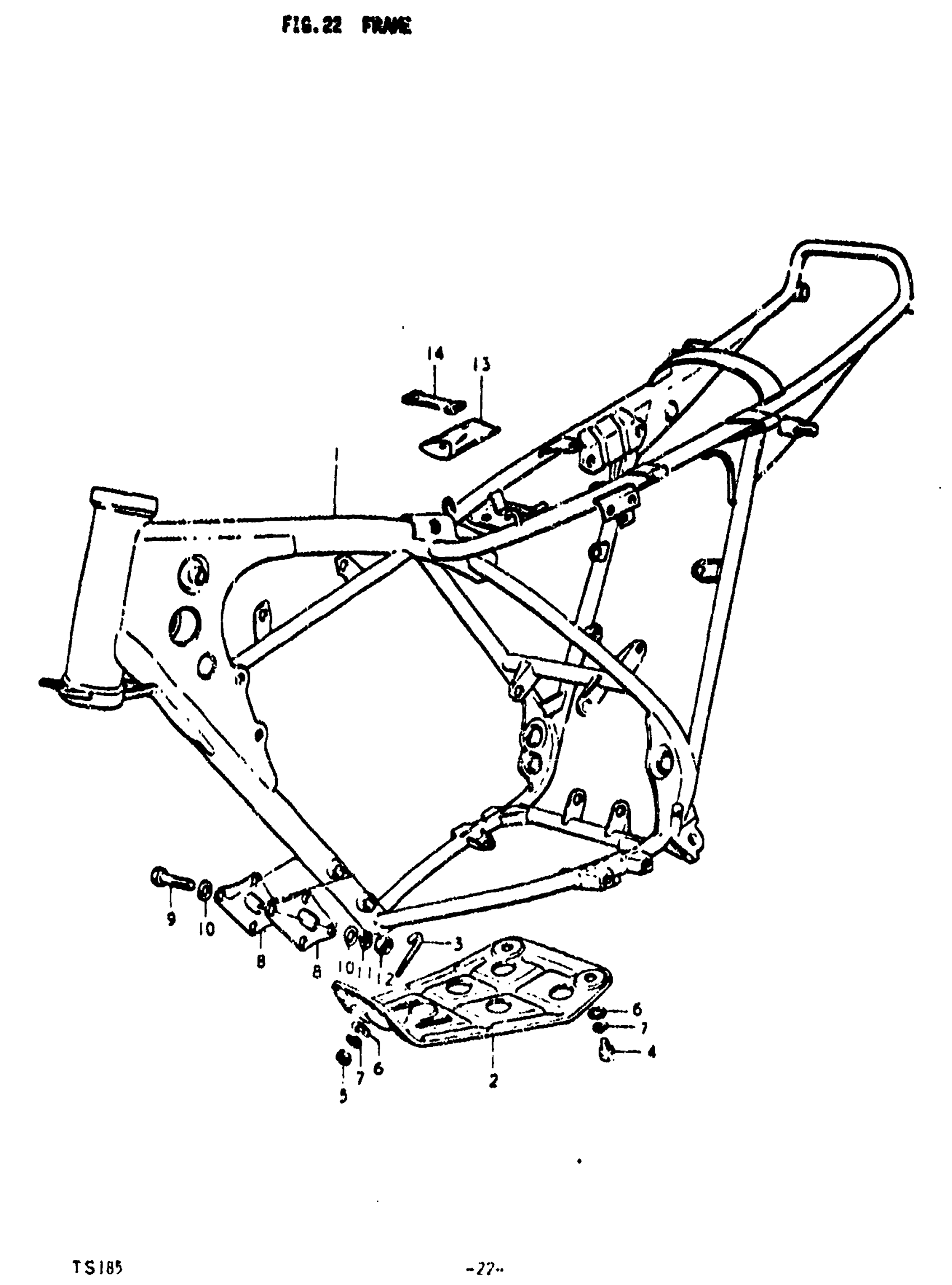

Suzuki TS185 (1972) FRAME Diagram

#

Description
Price

1

FRAME | R; TO 41100-29700-019 This part replaces 41100-29001-019.

41100-29701-019

Unavailable

1

FRAME | R; TO 41100-29700-019 This part replaces 41100-29700-019.

41100-29701-019

Unavailable

1

FRAME | J

41100-29701-019

Unavailable

2

PROTECTOR, ENGINE

11911-29000

Unavailable

3

BOLT, ENGINE PROTECTOR

11921-16400

Unavailable

4

BOLT This part replaces 01131-06128.

01500-06127

$1.97

5

.NUT This part replaces 08311-11068.

08310-00067

$2.13

6

WASHER This part replaces 08322-21068.

08322-01067

$2.13

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

PLATE, ENGINE MOUNTING

41591-28000

Unavailable

9

BOLT This part replaces 01122-08808.

01500-0880B

$3.49

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

NUT This part replaces 08312-11088.

08310-00087

$2.13

13

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02

14

BAND, TOOL

09462-00017

$3.23
