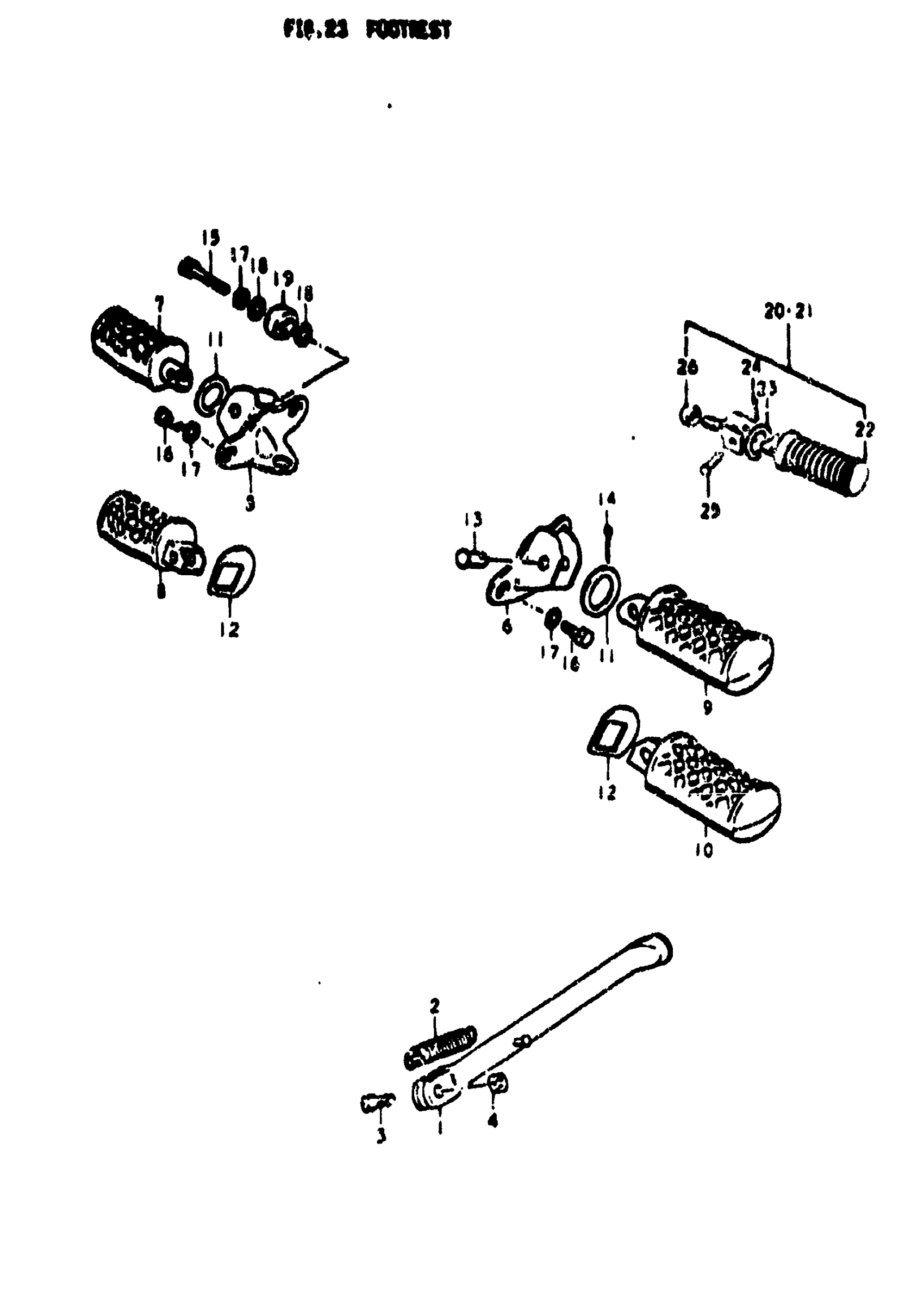

Suzuki TS185 (1972) FOOTREST Diagram

#

Description
Price

1

STAND, PROP

42310-29000

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT | 10x30

09100-10067

$2.61

4

NUT This part replaces 08312-32108.

08310-00107

$2.19

5

FOOTREST HOLDER, FRONT RH This part replaces 43510-29000.

43510-29001

Unavailable

6

FOOTREST BAR, FRONT LH This part replaces 43520-29000.

43520-29001

Unavailable

7

RUBBER, RH | R; TO 43550-75301 WITH 43561-25300 This part replaces 43550-25000.

43550-25301

Unavailable

8

FOOTREST, RH | J

43550-25301

Unavailable

9

RUBBER, LH | R; TO 43560-25301 WITH 43581-25300 This part replaces 43560-25000.

43560-25301

Unavailable

10

FOOTREST, LH | J

43560-25301

Unavailable

11

WASHER This part replaces 09160-22002.

09160-22033

$3.89

12

WASHER, FRONT FOOTREST | J

43581-25300

Unavailable

13

PIN

09200-08002

$2.05

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

BOLT This part replaces 01122-08358.

01500-0835B

$3.04

16

BOLT, LH | 8x14 This part replaces 09100-08067.

09100-08143

$2.29

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

CUSHION,KICK LEVER STOPPER

43534-16400

Unavailable

20

FOOTREST ASSY, PILLION RH

43600-28000

Unavailable

21

FOOTREST ASSY,P | Includes Item(s) 22 - 26 This part replaces 43600-03001.

43600-09D00

$27.30

22

RUBBER

43612-03001

$5.15

23

WASHER This part replaces 09160-19006.

09160-19024

$2.65

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

25

PIN

09200-06010

$1.72

26

NUT This part replaces 08312-32108.

08310-00107

$2.19
