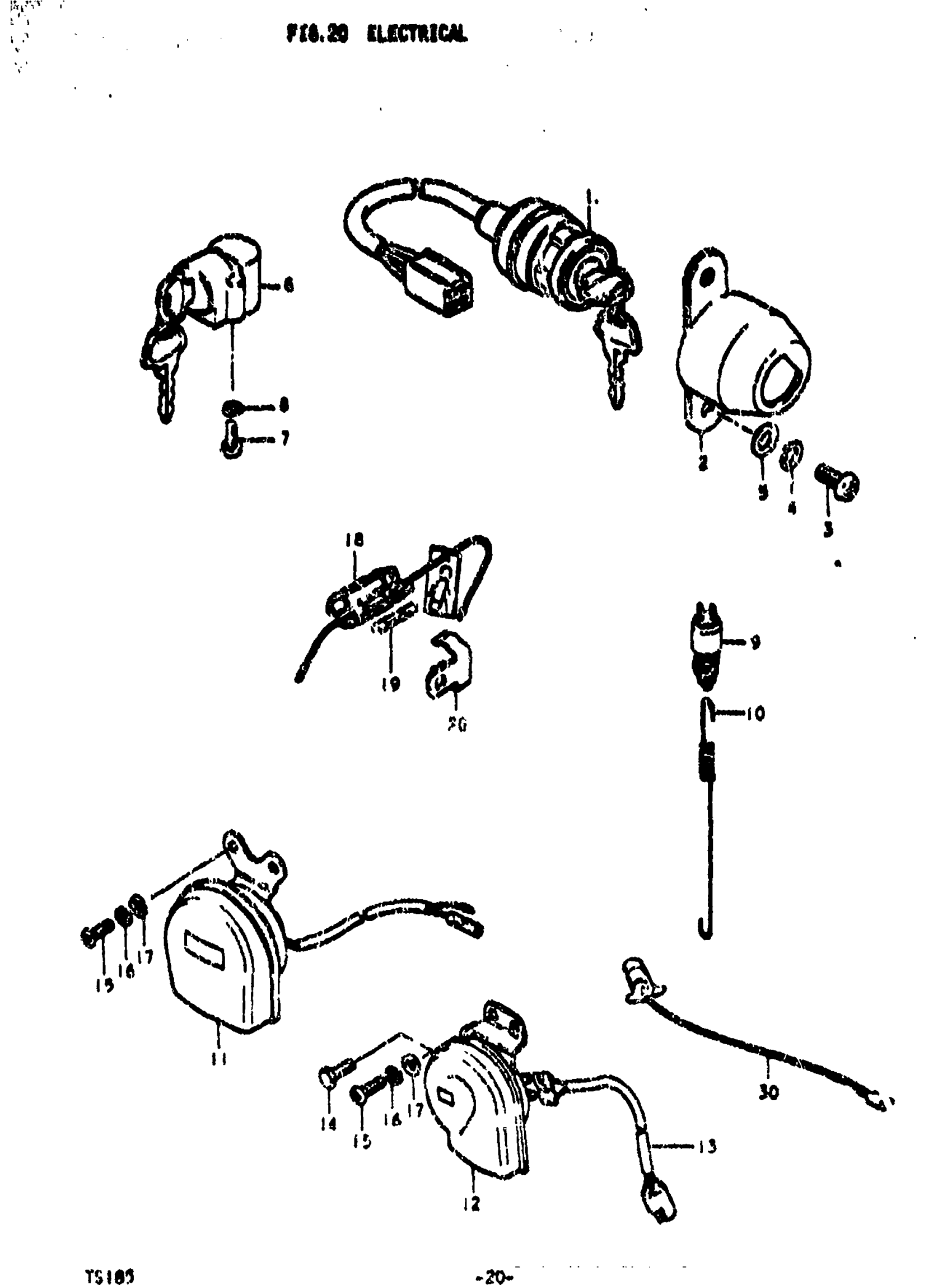

Suzuki TS185 (1972) ELECTRICAL (2) Diagram

#

Description
Price

1

SWITCH ASSY, IGNITION | TO 37110-30611

37110-30610

Unavailable

2

BRACKET, IGNITION SWITCH

37115-16401

Unavailable

3

SCREW This part replaces 02112-06128.

02112-06127

$1.84

4

LOCK WASHER This part replaces 08321-21060.

08321-01067

$2.13

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

LOCK ASSY, STEERING | FROM 51900-19010 This part replaces 50000-25837.

51910-25311

$40.33

7

SCREW This part replaces 02111-05127.

02112-05127

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

SWITCH ASSY, BRAKE LAMP

37610-53011

$30.75

10

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

11

HORN | R; TO 38500-25331 WITH 36870-31030 This part replaces 38500-20030.

38500-25332

Unavailable

12

HORN | R; TO 78500-25332

38500-25331

Unavailable

12

HORN | R

38500-25332

Unavailable

13

LEAD WIRE, HORN

36870-31030

Unavailable

14

BOLT | J This part replaces 01112-06108.

01500-06107

$2.06

15

SCREW | R This part replaces 02112-06128.

02112-06127

$1.84

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

FUSE CASE ASSY | Includes Item(s) 19 This part replaces 36740-15010.

36740-15011

$9.38

19

FUSE | 15A

09481-15001

$2.06

20

HOLDER, FUSE | J

36791-25001

Unavailable
