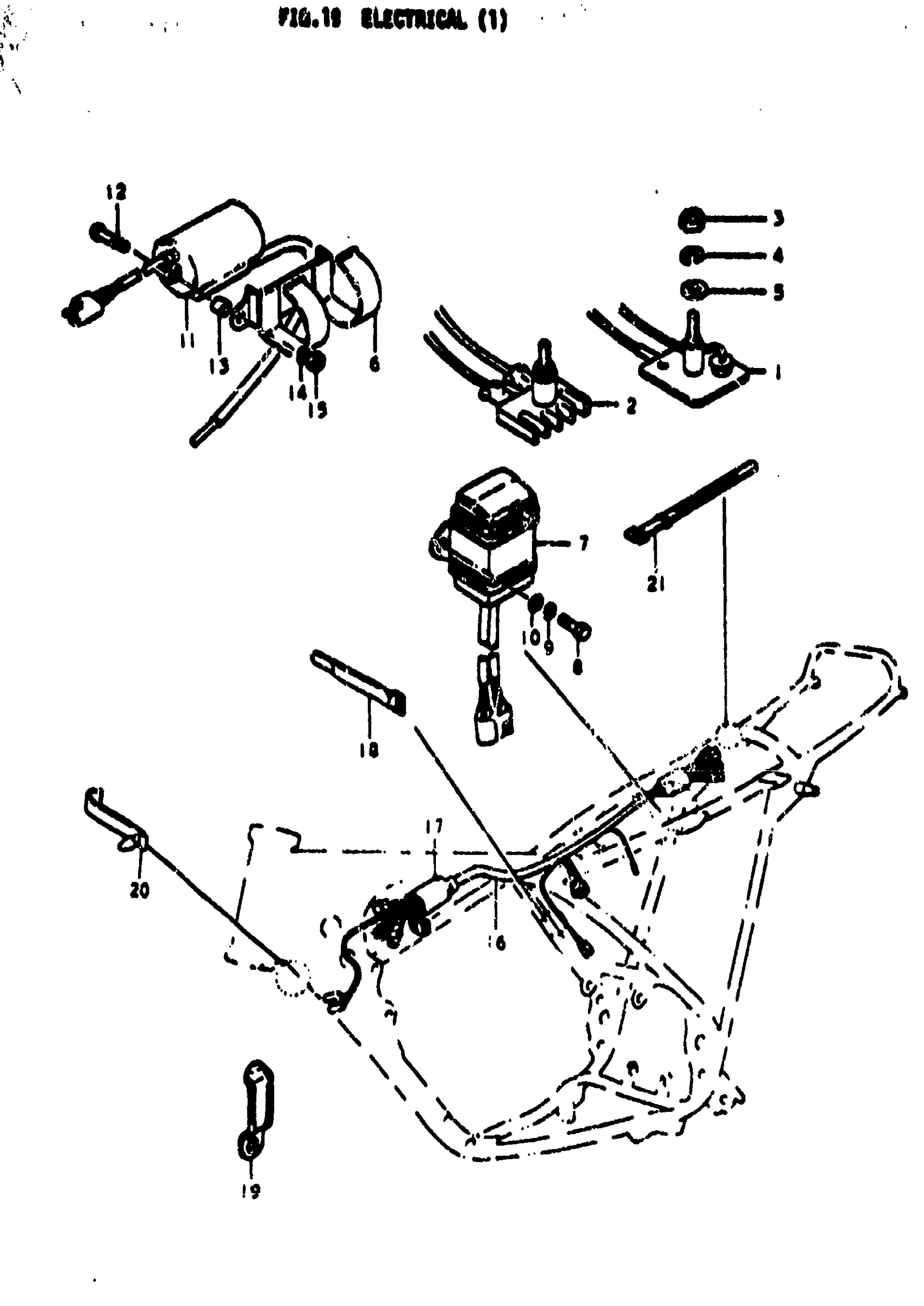

Suzuki TS185 (1972) ELECTRICAL (1) Diagram

#

Description
Price

1

RECTIFIER | R This part replaces 32800-16420.

32800-16421

Unavailable

2

RECTIFIER ASSY | J; FROM 32800-16420

32800-16421

Unavailable

3

NUT This part replaces 08311-11058.

08310-00057

$1.84

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

WASHER This part replaces 08322-21058.

08322-01057

$2.13

6

CLAMP

36652-30000

Unavailable

7

UNIT ASSY, CDI

31900-30020

Unavailable

8

BOLT This part replaces 09128-06006.

09128-06057

$1.65

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

COIL ASSY, IGNITION This part replaces 33410-30020.

33410-14120

$115.17

12

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

13

SPACER | 5.5x5x9x10

09180-05008

Unavailable

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

NUT This part replaces 08311-11058.

08310-00057

$1.84

16

WIRING HARNESS

36610-29611

Unavailable

17

BOOT, WIRING HARNESS

36618-30000

$9.00

18

CLAMP | L:140

09407-14401

$3.77

19

CLAMP | FROM 09403-07307

09403-07306

$2.75

20

BAND

33881-18400

Unavailable

21

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.28
