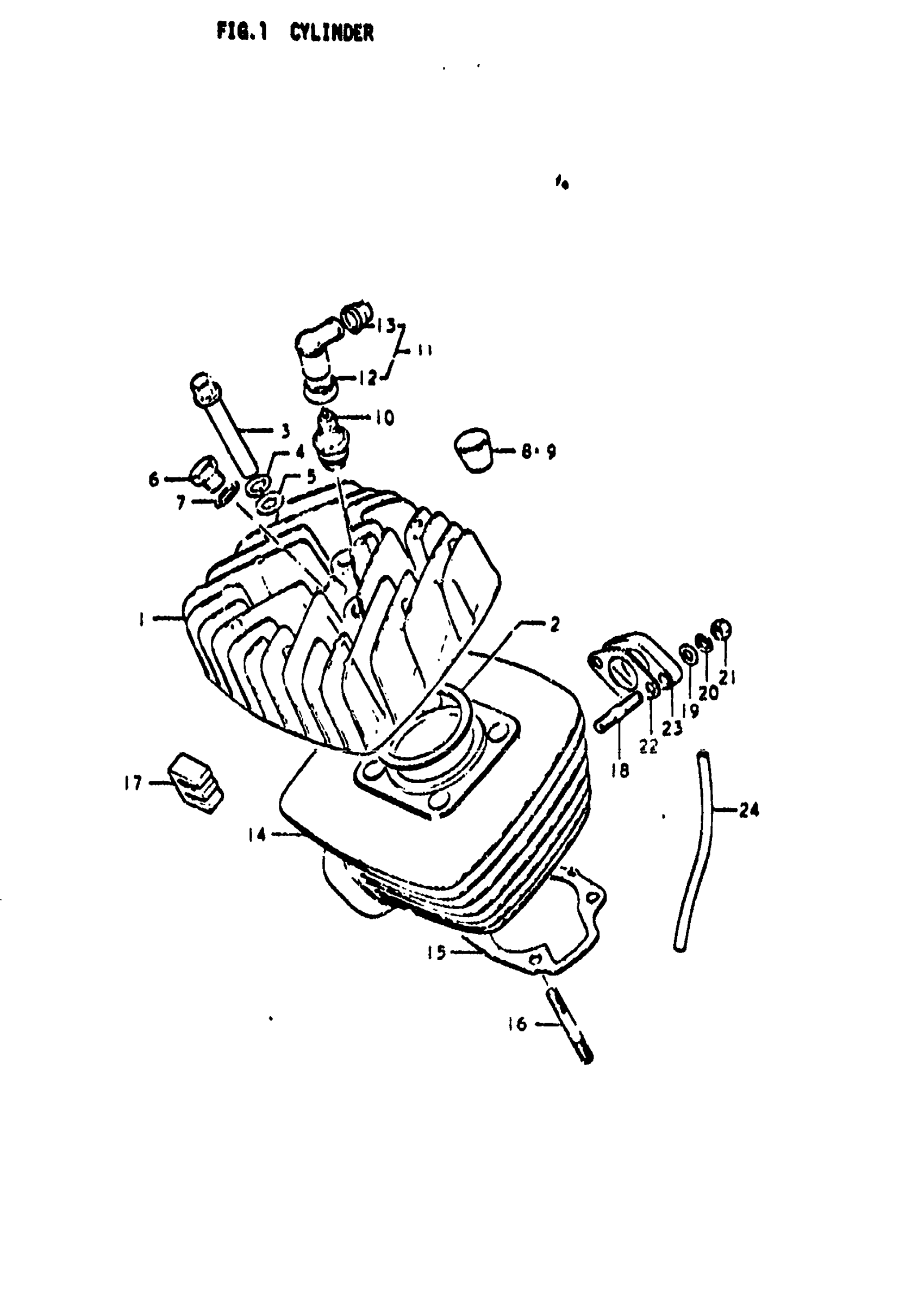

Suzuki TS185 (1972) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-29001

Unavailable

2

GASKET, CYLINDER HEAD

11141-29000

Unavailable

3

NUT

09159-08006

$5.83

4

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

5

WASHER This part replaces 08322-11128.

08322-01127

$1.84

6

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

7

GASKET | 15.7x19.5x2

09168-14004

$1.83

8

PAD, CYLINDER HEAD This part replaces 11151-25000.

11252-25000

$4.52

9

PAD, CYLINDER HEAD (B)

11151-16400

Unavailable

10

SPARK PLUG | NO, W22FS

09482-00083

Unavailable

10

SPARK PLUG | NGK, B7HS

09482-00082

$2.98

10

SPARK PLUG B8HS | NGK, B8HS OPT This part replaces 09482-00057.

09482-00198

$2.93

11

CAP SET,SPARK P | FROM 33503-10801; Includes Item(s) 12 - 13 This part replaces 33500-69810.

33500-69811

$22.48

12

SEAL, SPARK PLUG CAP | FROM 33541-22000

33541-69010

$4.37

13

SEAL,HIGH TENSION CORD (SIDE) | FROM 33347-31000 This part replaces 33542-98000.

33542-38B00

$4.34

14

CYLINDER | J This part replaces 11210-29000.

11210-29001

Unavailable

15

GASKET,CYLINDER This part replaces 11241-29000.

11241-29001

Unavailable

16

BOLT,STUD This part replaces 01421-08758.

01421-0875A

$4.77

17

RUBBER PAD CYLI This part replaces 11251-28000.

11251-28001

$5.24

18

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

GASKET,CARBURET This part replaces 13125-11000.

13125-11000-H17

$2.52

23

INSULATOR, CARBURETOR

13129-11000

Unavailable

24

HOSE | 3x3x140 This part replaces 09344-03014.

09351-30001-600

$3.57
