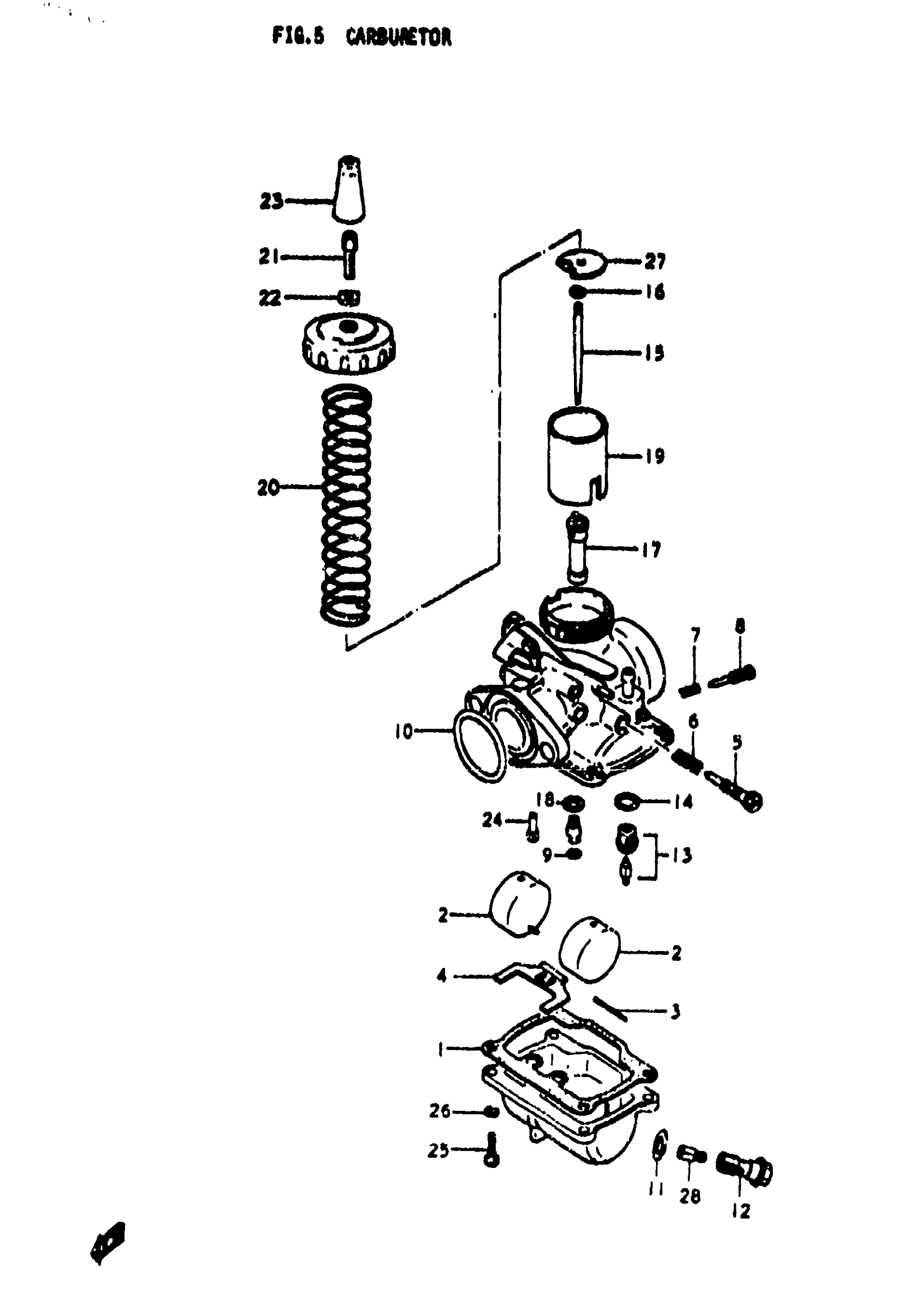

Suzuki TS185 (1972) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | FROM 13200-29601; Includes Item(s) 1 - 28

13200-29604

Unavailable

1

GASKET, FLOAT CHAMBER

13251-11010

$5.62

2

FLOAT

13252-18620

$21.82

3

.PIN, FLOAT | FROM 13254-11010 This part replaces 13254-35013.

13254-01010

$3.62

4

ARM, FLOAT

13253-28010

Unavailable

5

SCREW, THROTTLE STOP | 4.30

13267-28110

Unavailable

5

SCREW, THROTTLE STOP | 4.90 This part replaces 13267-15110.

13267-40230

$9.85

6

SPRING, THROTTLE STOP

13268-03110

$5.45

7

SPRING, PILOT AIR

13268-01010

$5.28

8

SCREW, PILOT AIR

13269-15010

Unavailable

9

O RING, NEEDLE JET

13294-28010

$4.48

10

O RING This part replaces 13295-28010.

13295-28011

$3.35

11

WASHER, UNION BOLT

13332-97010

Unavailable

12

UNION BOLT | FROM 1333-28010

13333-29110

Unavailable

13

VALVE,NEEDLE This part replaces 13370-28010.

13370-48051

$62.80

14

GASKET, NEEDLE VALVE

13392-58600

$1.82

15

NEEDLE, JET | 5DH4-3

13383-29010

Unavailable

16

CLIP, NEEDLE

13394-03010

Unavailable

17

NOZZLE, NEEDLE | 0-6 This part replaces 09494-00085.

09494-00139

Unavailable

18

WASHER, NEEDLE JET

13382-03110

$2.80

19

VALVE, THROTTLE | CA:2.9

13551-97010

Unavailable

20

SPRING, THROTTLE VALVE This part replaces 13573-97010.

13573-30900

$7.20

21

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

22

NUT, CABLE ADJUSTER

13661-16600

$4.64

23

BOOT, CABLE ADJUSTER | R; TO 13681-16801

13681-16600

$3.77

23

BOOT, CABLE ADJUSTER | J

13681-16601

$8.26

24

JET, PILOT (25) | #25 This part replaces 09492-25003.

09492-25005

$9.55

25

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

26

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

27

SEAT, THROTTLE SPRING

13581-28010

$7.95

28

JET, MAIN | #130

09491-26003

$9.85

28

JET, MAIN (120) | #120 OPT This part replaces 09491-24002.

09491-24014

Unavailable

28

JET, MAIN | #125 OPT This part replaces 09491-25004.

09491-25009

Unavailable

28

JET,MAIN #135 | #135 OPT This part replaces 09491-27005.

09491-27015

Unavailable

28

JET, MAIN | #140 OPT This part replaces 09491-28002.

09491-28009

Unavailable

28

JET, MAIN | #145 OPT

09491-29002

$10.80
