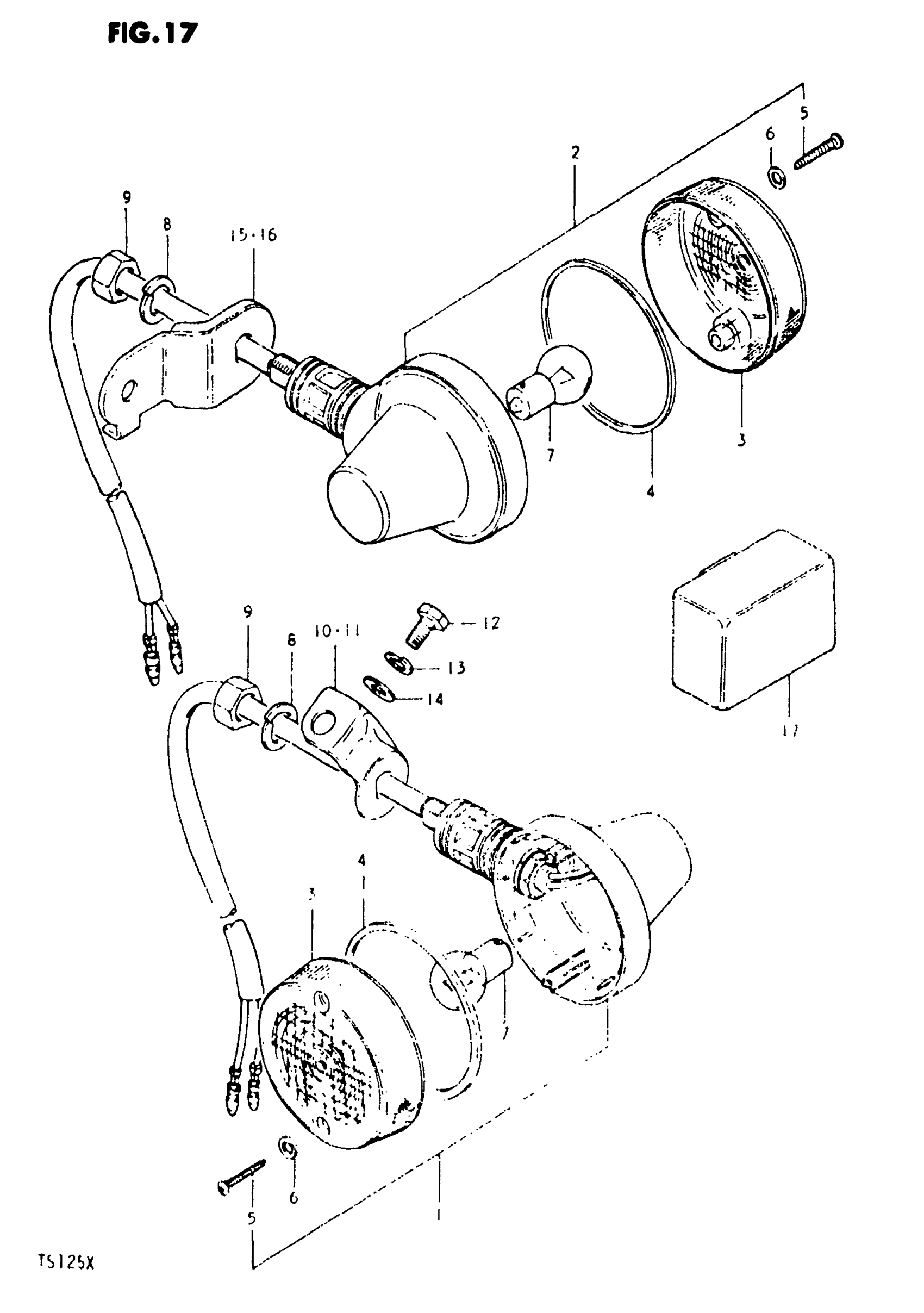

Suzuki TS125 (1981) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY REAR | MODEL T This part replaces 35603-48521-999.

35603-48532-999

$75.02

1

LAMP ASSY REAR | MODEL X This part replaces 35601-48532.

35603-48532-999

$75.02

2

LAMP ASSY REAR | MODEL T This part replaces 35603-48521-999.

35603-48532-999

$75.02

2

LAMP ASSY REAR | MODEL X; Includes Item(s) 3 - 6 This part replaces 35603-48532.

35603-48532-999

$75.02

3

LENS,FR TRNSIG | MODEL T This part replaces 35612-48510.

35612-01A70

$9.33

3

LENS,FR TRNSIG | MODEL X This part replaces 35612-48530.

35612-01A70

$9.33

4

GASKET

35613-28620

$4.55

5

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

6

GASKET

35627-43010

$2.28

7

BULB (6V, 21CP)

09471-06011

Unavailable

8

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

9

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

$3.05

10

BRACKET, FORNT RH (BLACK)

51251-29900-291

$11.07

11

BRACKET, FRONT LH (BLACK)

51252-29900-291

$11.07

12

BOLT This part replaces 01107-06128.

01500-06127

$1.97

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

BRACKET,RR TRNS This part replaces 41580-48500.

41580-46530

$14.43

16

BRACKET, RR TUR This part replaces 41590-48500.

41590-46530

$14.43

17

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

Unavailable
