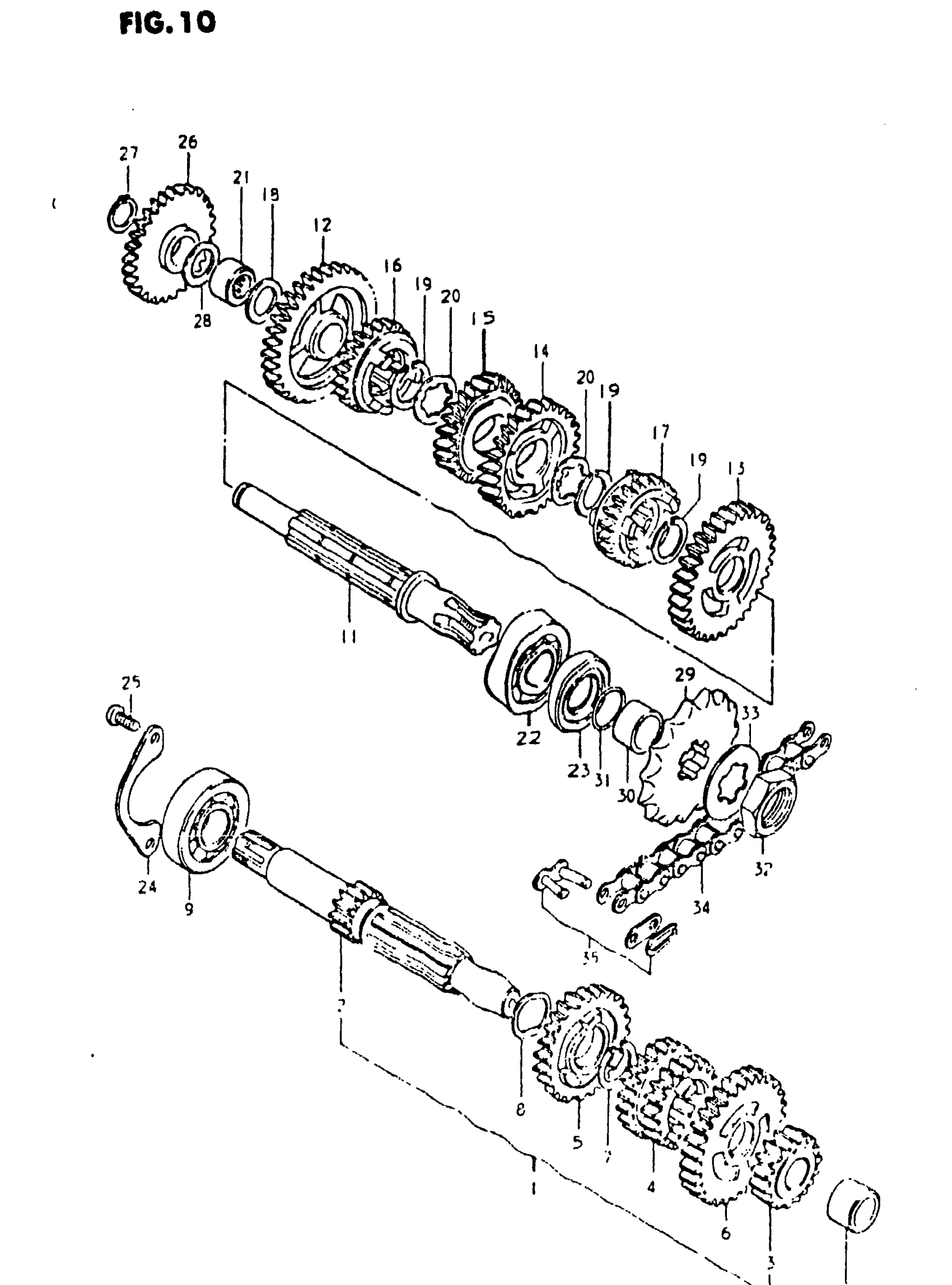

Suzuki TS125 (1981) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8

24120-48011

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 24121-48001.

24121-48002

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 24221-48000.

24221-48001

Unavailable

4

GEAR,3RD / 4TH This part replaces 24231-48000.

24231-48001

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 24251-48010.

24251-48012

Unavailable

6

GEAR,6TH DRIVE This part replaces 24260-48011.

24260-48012

Unavailable

7

CIRCLIP

09380-20007

$2.43

8

WASHER (20X26X1) This part replaces 08211-20261.

09181-20139

$2.62

9

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

10

BUSH

09300-15009

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 24131-48000.

24131-48701

Unavailable

12

GEAR, 1ST DRIVEN (NT:34)

24310-48001

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 24321-48002.

24321-48003

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 24331-48000.

24331-48001

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 24341-48000.

24341-48001

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 24351-48011.

24351-48012

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 24361-48011.

24361-48012

Unavailable

18

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.57

19

CIRCLIP

09380-20007

$2.43

20

WASHER

09167-20011

$2.31

21

BEARING, RH

09263-15012

$15.48

22

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

23

OIL SEAL

09283-25035

$6.51

24

RETAINER, BEARING

24741-48000

Unavailable

25

SCREW This part replaces 02112-06128.

02112-06127

$1.84

26

NO DESCRIPTION AVAILABLE This part replaces 26260-28002.

26260-28003

Unavailable

27

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

28

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.57

29

SPROCKET, ENGINE This part replaces 27511-48000.

27511-27100

$29.03

30

SPACER

09180-20039

$7.31

31

O RING

09280-20001

$1.65

32

NUT

09140-20001

$3.37

33

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

34

CHAIN ASSY,DRIV | Includes Item(s) 35 This part replaces 27600-29070.

27600-46912-134

$70.38

35

JOINT (RK) This part replaces 27620-20210.

27620-40220

$11.07
