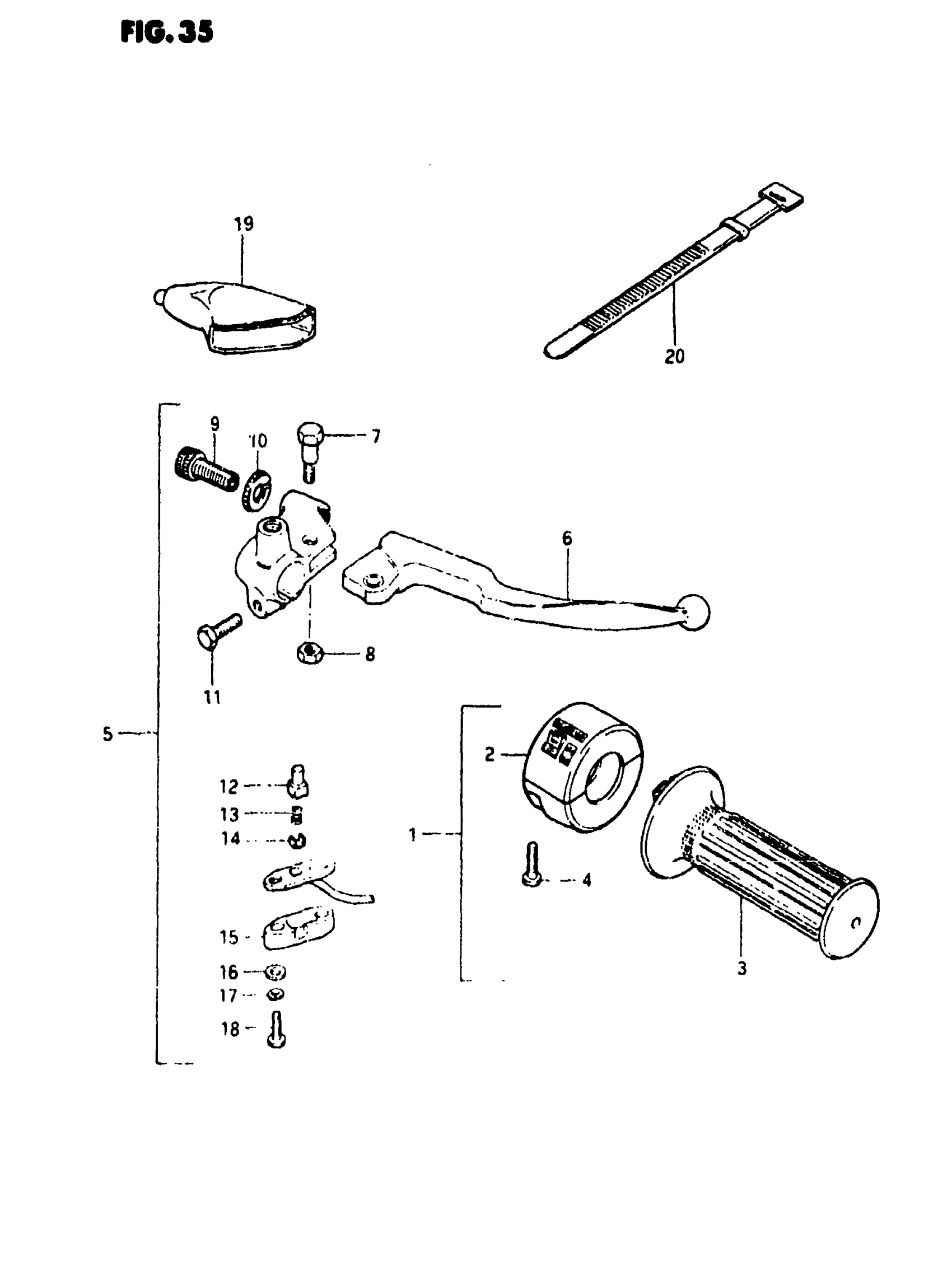

Suzuki TS125 (1981) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

CASE ASSY, THROTTLE | Includes Item(s) 2 - 4 This part replaces 57100-30510.

57100-30540

Unavailable

2

CASE ASSY, THROTTLE

57100-30540

Unavailable

3

GRIP, THROTTLE

57110-30501

$35.12

4

SCREW This part replaces 02112-05258.

02112-05257

$1.49

5

LEVER ASSY, BRAKE | Includes Item(s) 6 - 18

57300-48500

Unavailable

6

LEVER, BRAKE

57420-26500

$29.23

7

BOLT This part replaces 57431-11011.

57431-11013

$6.31

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

ADJUSTER, CABLE

57441-26010

$4.48

10

NUT

57442-11010

$2.79

11

BOLT This part replaces 01107-06208.

01500-06207

$2.28

12

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

13

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

14

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

15

COVER

57481-33010

$5.84

16

WASHER This part replaces 08322-21038.

08322-01037

$1.93

17

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

18

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

19

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56

20

BAND

09407-12402

$3.04
