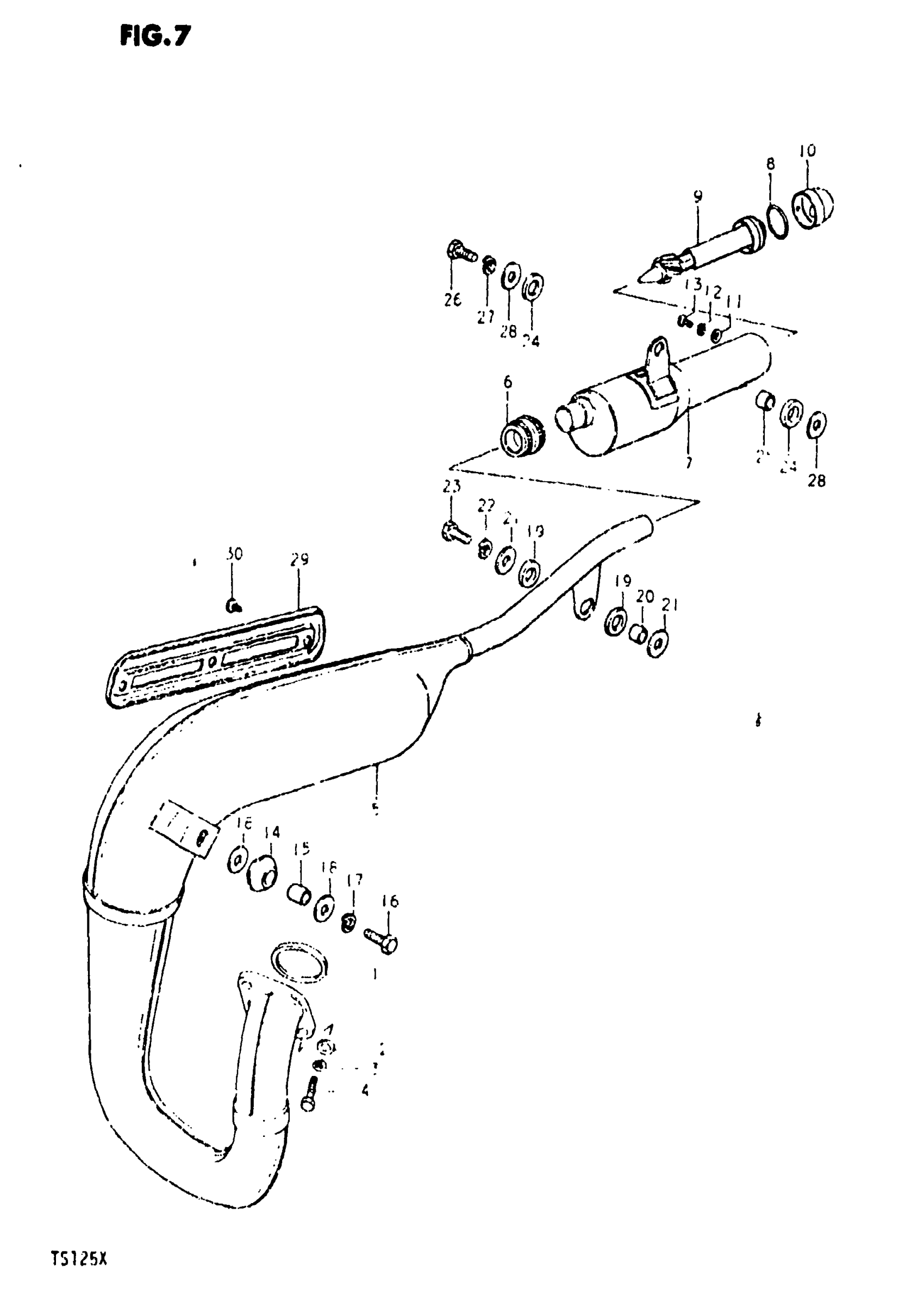

Suzuki TS125 (1981) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

2

WASHER This part replaces 08322-21068.

08322-01067

$2.13

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

5

MUFFLER ASSY This part replaces 14310-48500.

14310-48520-H01

Unavailable

6

CONNECTOR | MODEL T This part replaces 14771-48001.

14771-48002

$13.04

6

CONNECTOR | MODEL X

14771-48002

$13.04

7

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 13 This part replaces 14303-48500.

14303-48500-H01

Unavailable

8

O RING

09280-55001

$5.52

9

TUBE, CLEAN OUT

14850-30510

Unavailable

10

COVER, TAIL

14649-48510

Unavailable

11

SCREW

09128-06013

$1.49

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

DAMPER,MUFFLER, This part replaces 14772-30500.

14772-30501

$3.03

15

SPACER,8.5X12X1 This part replaces 09180-08048.

09180-08302

$2.19

16

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

19

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

20

SPACER,8.5X14X9 This part replaces 09180-08075.

09180-08200

$2.97

21

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

$2.03

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

BOLT This part replaces 01107-08258.

01500-08257

$2.50

24

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

25

SPACER, TAIL COVER RR RR This part replaces 09180-08050.

09180-08199

$2.12

26

BOLT This part replaces 01107-08258.

01500-08257

$2.50

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

$2.03

29

COVER, MUFFLER

14781-48500

Unavailable

30

SCREW This part replaces 02112-06088.

02112-06087

$1.49
