Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 7 This part replaces 44300-22071.

44300-22077

$53.92

2

CAP

44347-28071

$8.98

3

O-RING This part replaces 44346-28070.

44346-28071

$2.40

4

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

5

SPRING

44357-32470

$2.21

6

O RING, LEVER This part replaces 44353-32470.

44353-12C01

$7.44

7

SCREW

44343-41370

$2.22

8

BOLT This part replaces 09128-06006.

09128-06057

$1.65

9

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

10

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

11

CLIP

09401-08402

$1.49

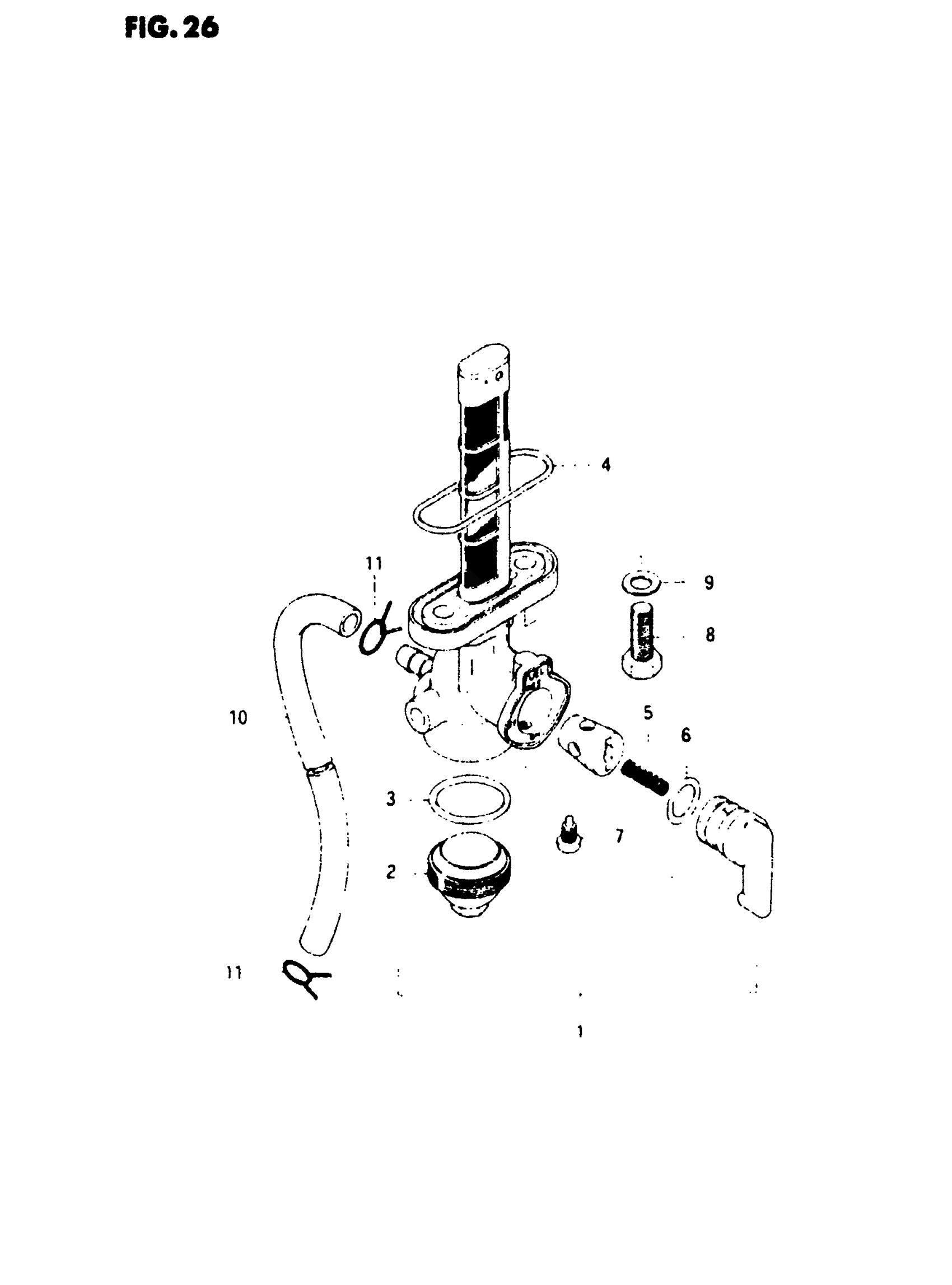

Suzuki TS125 (1981) FUEL COCK Diagram
