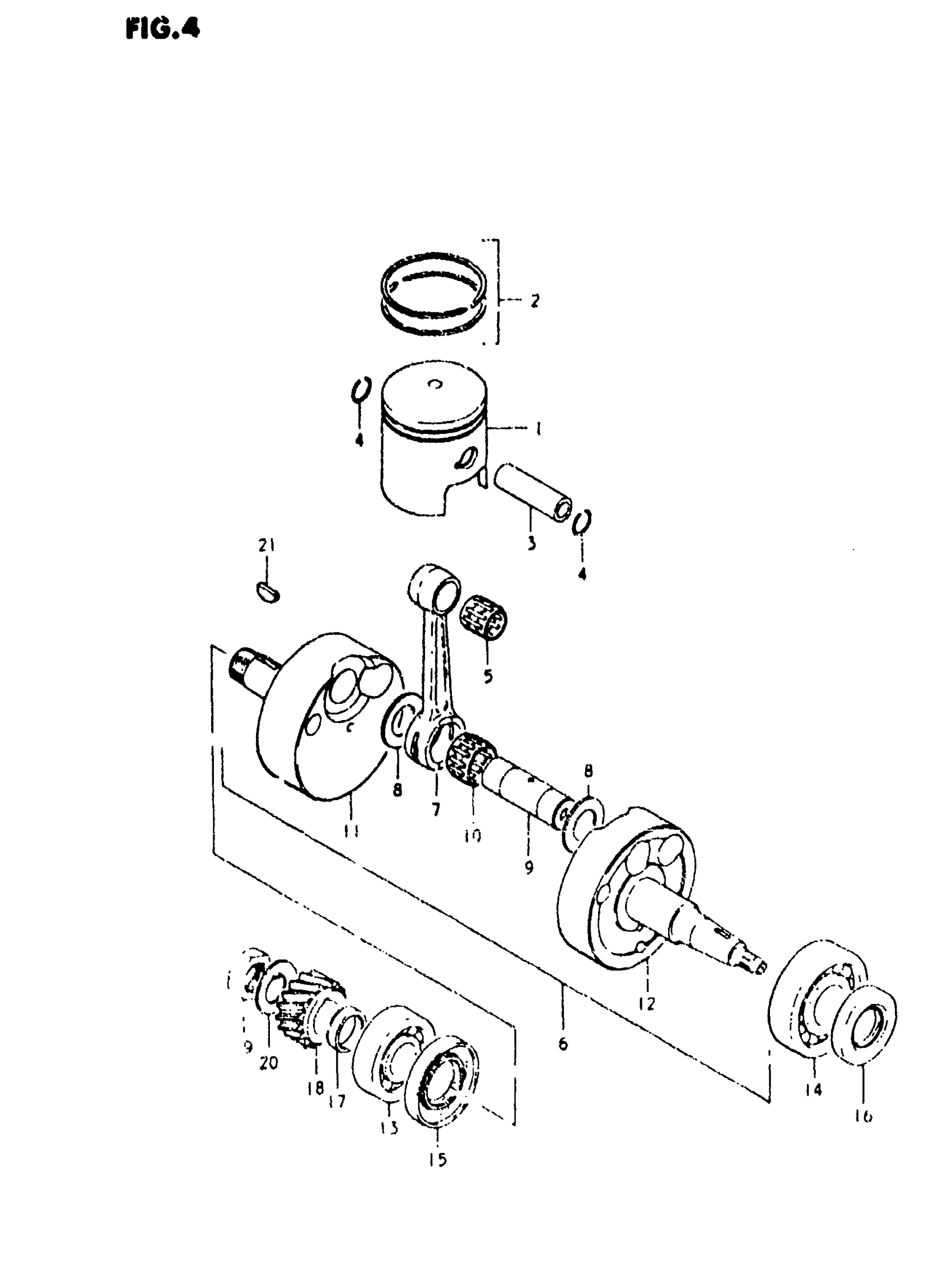

Suzuki TS125 (1981) CRANKSHAFT Diagram

#

Description
Price

1

PISTON STD This part replaces 12110-48000.

12110-48001

$54.28

1

PISTON SET,OS:. This part replaces 12110-48000-050.

12100-48000-050

$105.88

1

PISTON SET,OS:1 This part replaces 12110-48000-100.

12100-48000-100

$105.27

2

RING SET, PISTO This part replaces 12140-28010.

12140-28021

$38.70

2

RING SET PISTON This part replaces 12140-28010-050.

12140-28011-050

$38.70

2

RING SET PISTON This part replaces 12140-28010-100.

12140-28011-100

$40.17

3

PIN This part replaces 12151-28000.

12151-05200

$12.50

4

RING

09381-14001

$1.49

5

ROLLR BRG,14X18 This part replaces 09263-14006.

09263-14022

$11.97

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 12 This part replaces 12200-48001.

12200-48002

Unavailable

7

CONNECTING ROD This part replaces 12161-12002.

12161-39300

$69.47

8

WASHER

09160-19001

$3.27

9

PIN, CRANK | MODEL T This part replaces 12211-48000.

12211-48001

$38.85

9

PIN, CRANK | MODEL X

12211-48001

$38.85

10

BEARING

09263-19009

$16.75

11

CRANKSHAFT, RH

12221-48000

Unavailable

12

CRANKSHAFT,L This part replaces 12261-48001.

12261-48002

Unavailable

13

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

$23.28

14

BEARING, LH

09262-25049

$38.05

15

OIL SEAL, RH

09283-26007

$7.37

16

OIL SEAL, LH

09283-25066

$7.50

17

SPACER

09180-20037

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 21111-28000.

21111-28001

Unavailable

19

NUT

09140-18002

$3.87

20

WASHER

09166-18001

$2.71

21

KEY

08341-31059

$2.48
