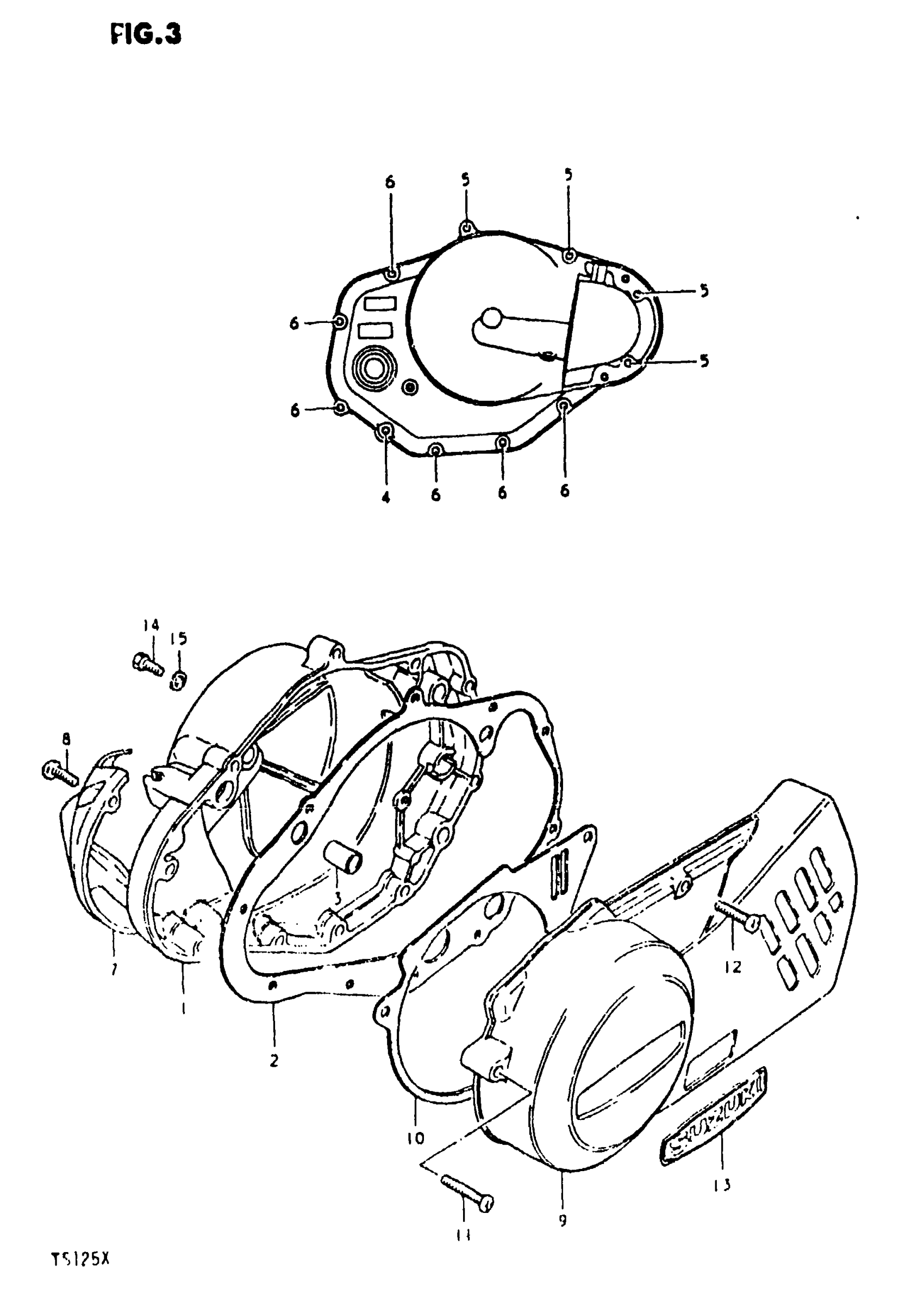

Suzuki TS125 (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-48000

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-48000.

11482-48000-H17

$11.98

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW This part replaces 02112-06308.

02112-06307

$1.97

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

COVER, CLUTCH RELEASE ARM

11451-48000

Unavailable

8

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

9

COVER, MAGNETO

11351-48200

Unavailable

10

GASKET | MODEL T

11483-48000

Unavailable

11

SCREW This part replaces 02112-06308.

02112-06307

$1.97

12

SCREW This part replaces 02112-06258.

02112-06257

$1.78

13

EMBLEM

68233-31000

$9.61

14

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

15

GASKET

09168-06001

$1.49
