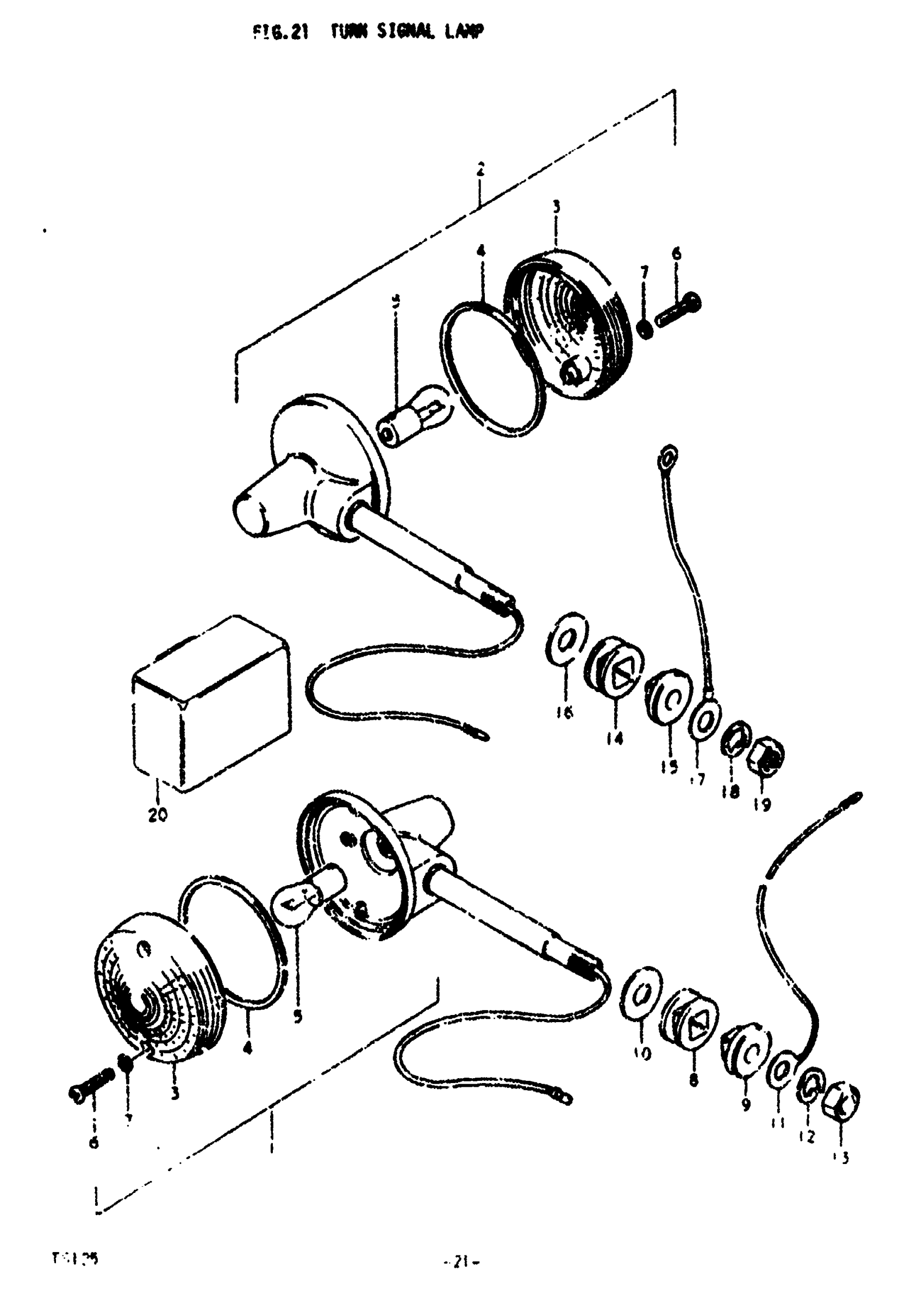

Suzuki TS125 (1979) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TR This part replaces 35601-30531.

35601-39370-999

Unavailable

2

LAMP RR TURN SI | Includes Item(s) 3 - 7 This part replaces 35603-30531.

35603-32620-999

Unavailable

3

LENS

35612-28620

$8.98

4

GASKET

35613-28620

$4.55

5

BULB | 6V, 21CP

09471-06011

Unavailable

6

SCREW This part replaces 35623-47610.

03211-04207

$1.49

7

GASKET

35627-43010

$2.28

8

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

9

SPACER

35695-32200

Unavailable

10

WASHER, UPPER, OUTER | 10.5x30x2.3 This part replaces 09160-10006.

09160-10501

$2.33

11

LEAD WIRE, FRONT EARTH

36660-33000

$4.52

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

13

NUT This part replaces 08310-12108.

08310-00107

$2.19

14

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

15

SPACER

35695-32200

Unavailable

16

WASHER, UPPER, OUTER | 10.5x30x2.3 This part replaces 09160-10006.

09160-10501

$2.33

17

CORD RR TURN LA This part replaces 36852-38000.

36851-26410

Unavailable

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

19

NUT This part replaces 08310-12108.

08310-00107

$2.19

20

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

Unavailable
