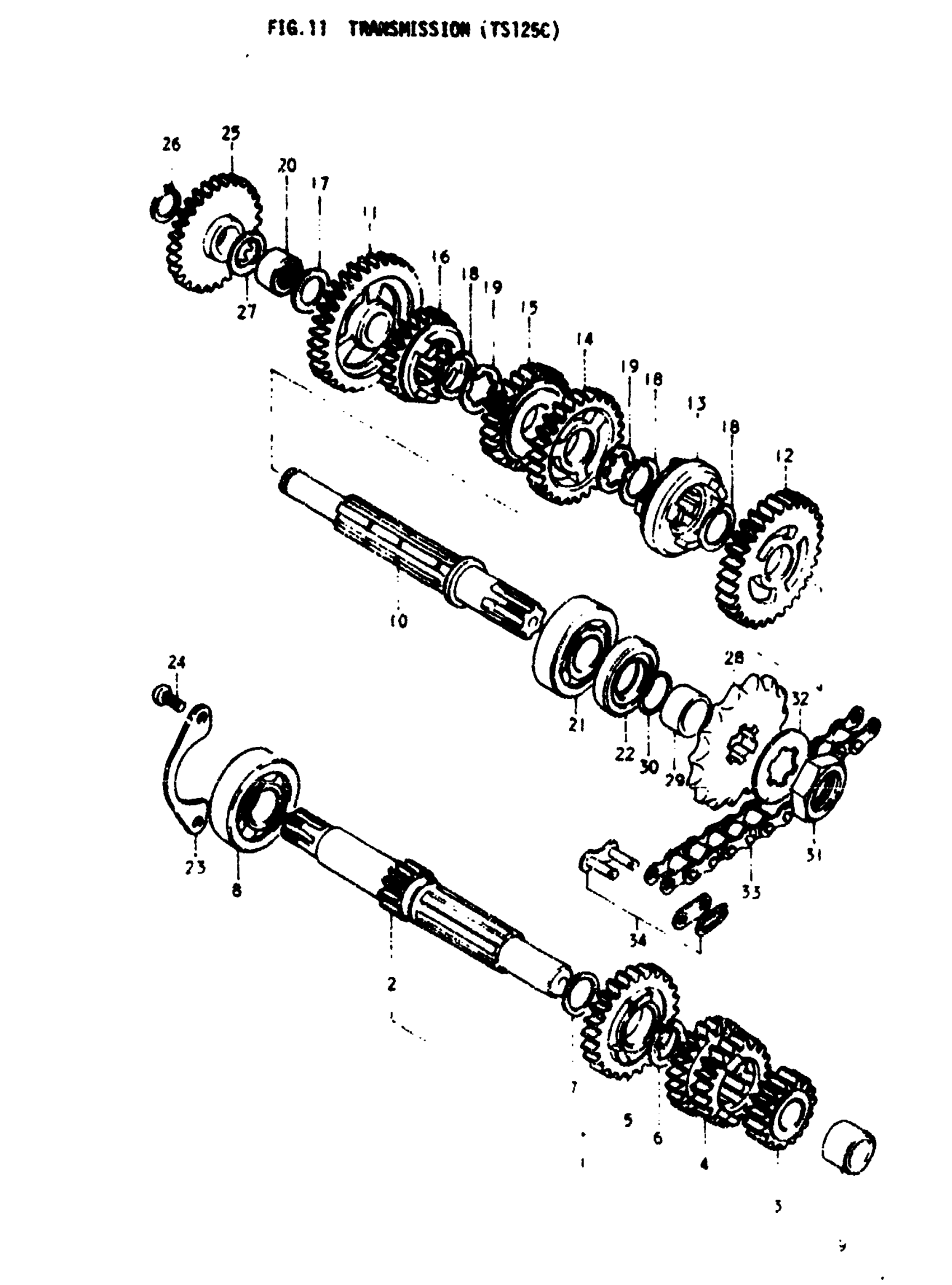

Suzuki TS125 (1979) TRANSMISSION (TS125C) Diagram

#

Description
Price

1

SHAFT, ASSY, COUNTER | Includes Item(s) 2 - 7

24120-48001

Unavailable

2

NO DESCRIPTION AVAILABLE | NT:11 This part replaces 24121-48001.

24121-48002

Unavailable

3

NO DESCRIPTION AVAILABLE | NT:15 This part replaces 24221-48000.

24221-48001

Unavailable

4

GEAR,3RD / 4TH | NT:19/21 This part replaces 24231-48000.

24231-48001

Unavailable

5

NO DESCRIPTION AVAILABLE | NT:24 This part replaces 24251-48001.

24251-48003

Unavailable

6

CIRCLIP

09380-20007

$2.43

7

WASHER (20X26X1) | 20x26x1 This part replaces 08211-20261.

09181-20139

$2.62

8

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

9

BUSH

09300-15009

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 24131-48000.

24131-48701

Unavailable

11

GEAR, 1ST DRIVEN | NT:34

24310-48001

Unavailable

12

NO DESCRIPTION AVAILABLE | NT:30 This part replaces 24321-48001.

24321-48003

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 24421-48000.

24421-48001

Unavailable

14

NO DESCRIPTION AVAILABLE | NT:26 This part replaces 24331-48000.

24331-48001

Unavailable

15

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24341-48000.

24341-48001

Unavailable

16

GEAR,5TH DRIVEN | NT:21 This part replaces 24351-48000.

24351-48002

Unavailable

17

WASHER, SUB T/M IDLE, LH | 15x26x1 This part replaces 08211-15261.

09181-15195

$2.57

18

CIRCLIP

09380-20007

$2.43

19

THRUST WASHER

09167-20011

$2.31

20

BEARING, RH

09263-15012

$15.48

21

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

22

OIL SEAL

09283-25035

$6.51

23

RETAINER, COUNTERSHAFT BEARING

24741-48000

Unavailable

24

SCREW This part replaces 02112-06128.

02112-06127

$1.84

25

NO DESCRIPTION AVAILABLE | NT:29 This part replaces 26260-28002.

26260-28003

Unavailable

26

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

27

WASHER, SUB T/M IDLE, LH | 15x26x1 This part replaces 08211-15261.

09181-15195

$2.57

28

SPROCKET, ENGINE | NT:15 This part replaces 27511-48000.

27511-27100

$29.03

29

SPACER | 20x25x12.5

09180-20039

$7.31

30

O RING

09280-20001

$1.65

31

NUT

09140-20001

$3.37

32

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

33

CHAIN, DRIVE (RK428FDZ,124LE) | #428x114L; Includes Item(s) 34 This part replaces 27600-36011.

27600-29B20-124

Unavailable

34

JOINT (DID) This part replaces 27620-36011.

27620-36012

Unavailable
