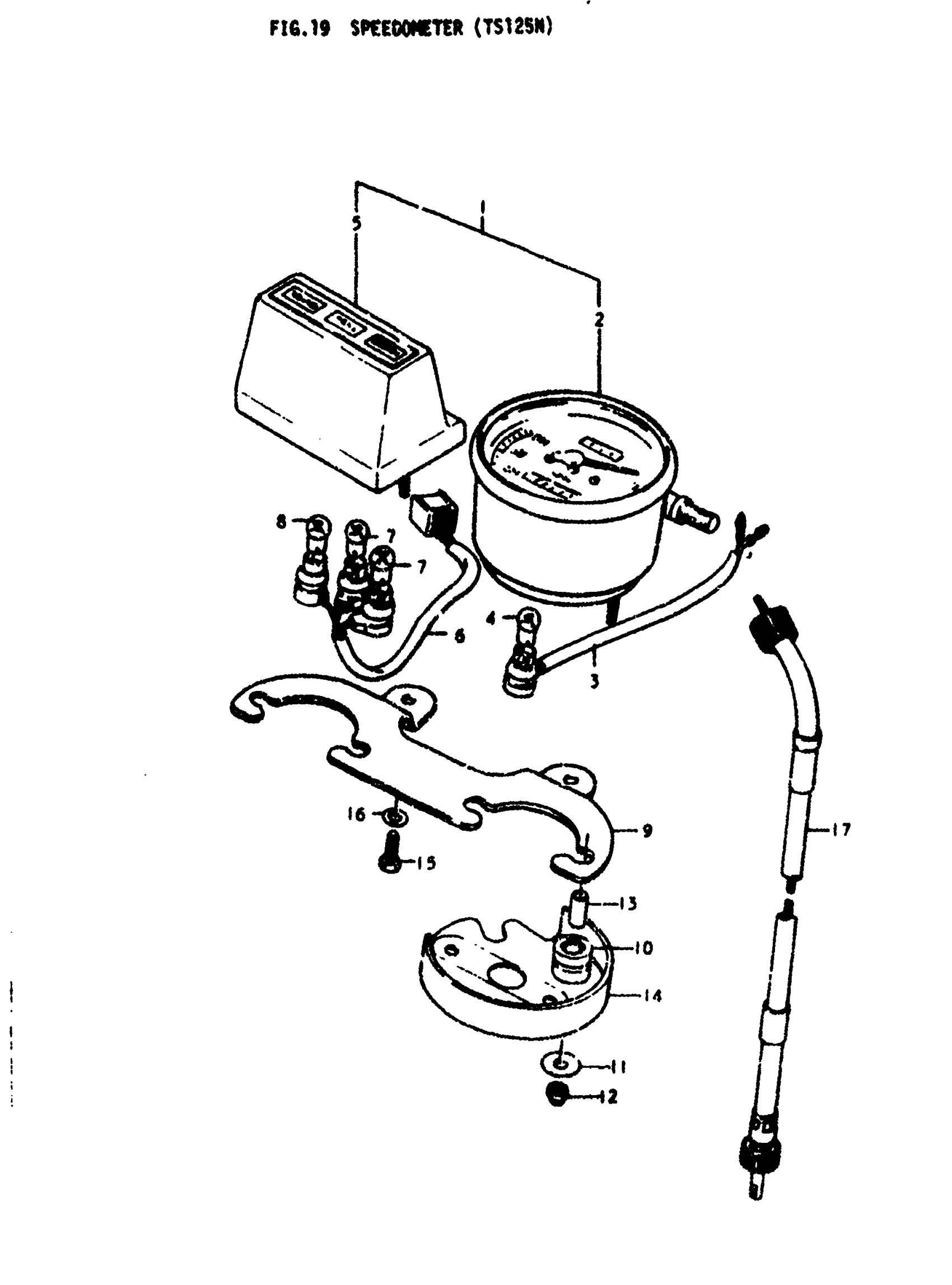

Suzuki TS125 (1979) SPEEDOMETER (TS125N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | KILO & MILE SCALE; Includes Item(s) 2 - 14 This part replaces 34100-48030.

34100-48031

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34101-30511.

34101-30512

Unavailable

3

SOCKET

34170-30640

Unavailable

4

BULB | 6V,3W

09471-06002

$2.25

5

PILOT BOX ASSY

36380-48030

Unavailable

6

SOCKET

36325-48030

Unavailable

7

BULB | 6V,3W

09471-06002

$2.25

8

BULB | 6V,1.7W

09471-06001

$2.18

9

BRACKET, SPEEDOMETER

34950-29300

Unavailable

10

CUSHION This part replaces 34955-30520.

34189-29330

$4.58

11

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

12

NUT This part replaces 34185-45060.

08313-1005A

$1.93

13

SPACER

34972-29300

Unavailable

14

UNDER PLATE, SPEEDOMETER

34193-48030

Unavailable

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

CABLE ASSY,SPEE This part replaces 34910-48032.

34910-48991

$33.55
