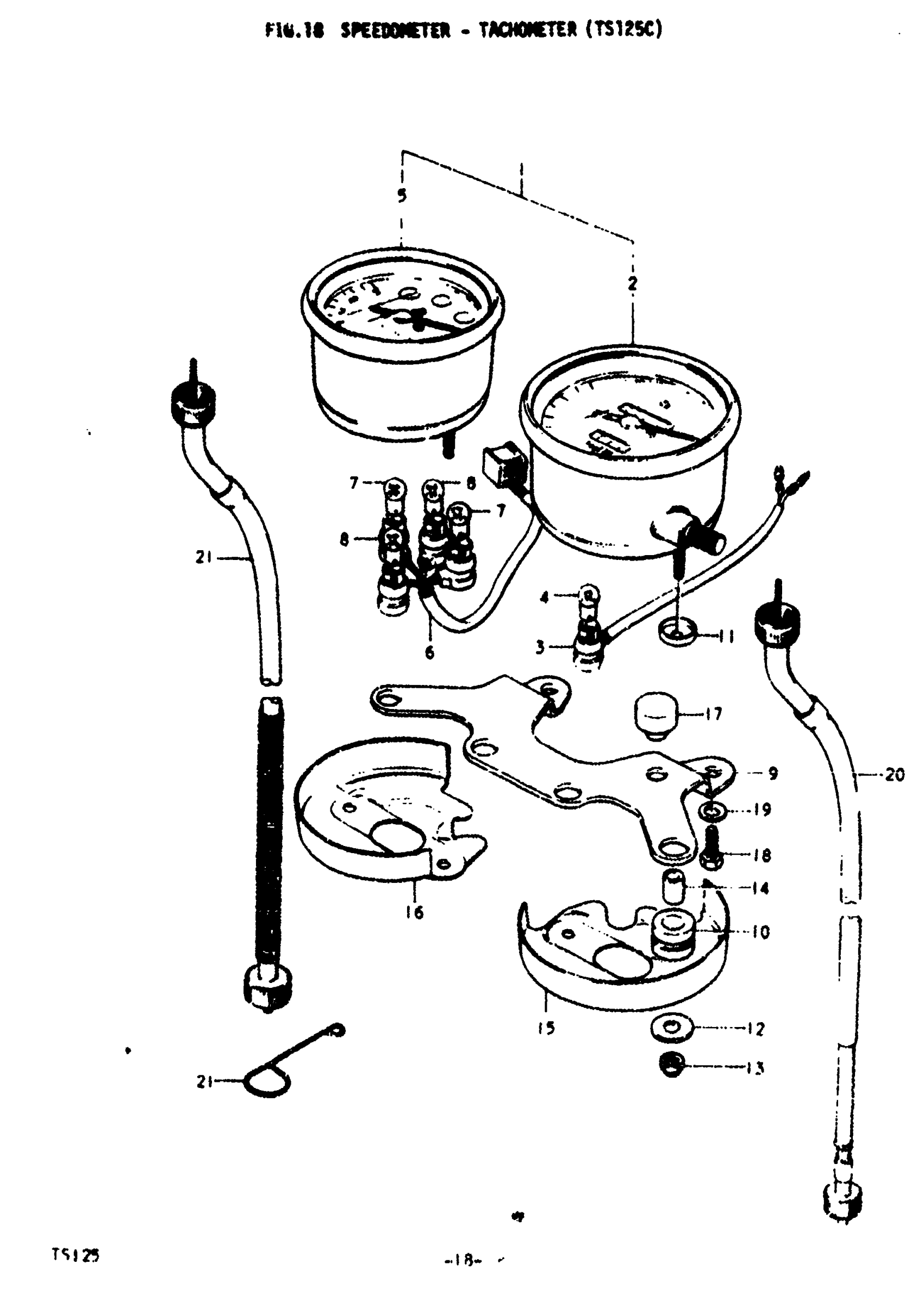

Suzuki TS125 (1979) SPEEDOMETER - TACHOMETER (TS125C) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | KILO & MILE SCALE; Includes Item(s) 2 - 17 This part replaces 34100-48010.

34100-48012

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34101-48010.

34101-48013

Unavailable

3

SOCKET

34173-28310

Unavailable

4

BULB | 6V,1.7W

09471-06001

$2.18

5

NO DESCRIPTION AVAILABLE This part replaces 34201-28311.

34201-48003

Unavailable

6

SOCKET, TACHOMETER This part replaces 34273-28310.

34273-05320

Unavailable

7

BULB | 6V,1.7W

09471-06001

$2.18

8

BULB | 6V,3W

09471-06002

$2.25

9

BRACKET

34951-28310

Unavailable

10

CUSHION

34189-28310

Unavailable

11

WASHER This part replaces 34968-36010.

09160-05013

$1.49

12

WASHER (5.5X16X1.2) This part replaces 34181-28310.

09160-05037

$1.49

13

NUT This part replaces 34185-28310.

08313-1005B

$2.70

14

SPACER

34187-28310

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 34193-28310.

34193-28312

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 34293-28310.

34293-28312

Unavailable

17

STOPPER, SPEEDOMETER

34956-28011

Unavailable

18

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

CABLE ASSY,SPEE This part replaces 34910-48031.

34910-48991

$33.55

20

CABLE ASSY,SPEE This part replaces 34910-48032.

34910-48991

$33.55

21

CABLE ASSY,TACH This part replaces 34940-48031.

34940-29903

$42.43

21

CABLE ASSY,TACH This part replaces 34940-48033.

34940-29903

$42.43

22

GUIDE, TACHOMETER CABLE

34997-48000

Unavailable
