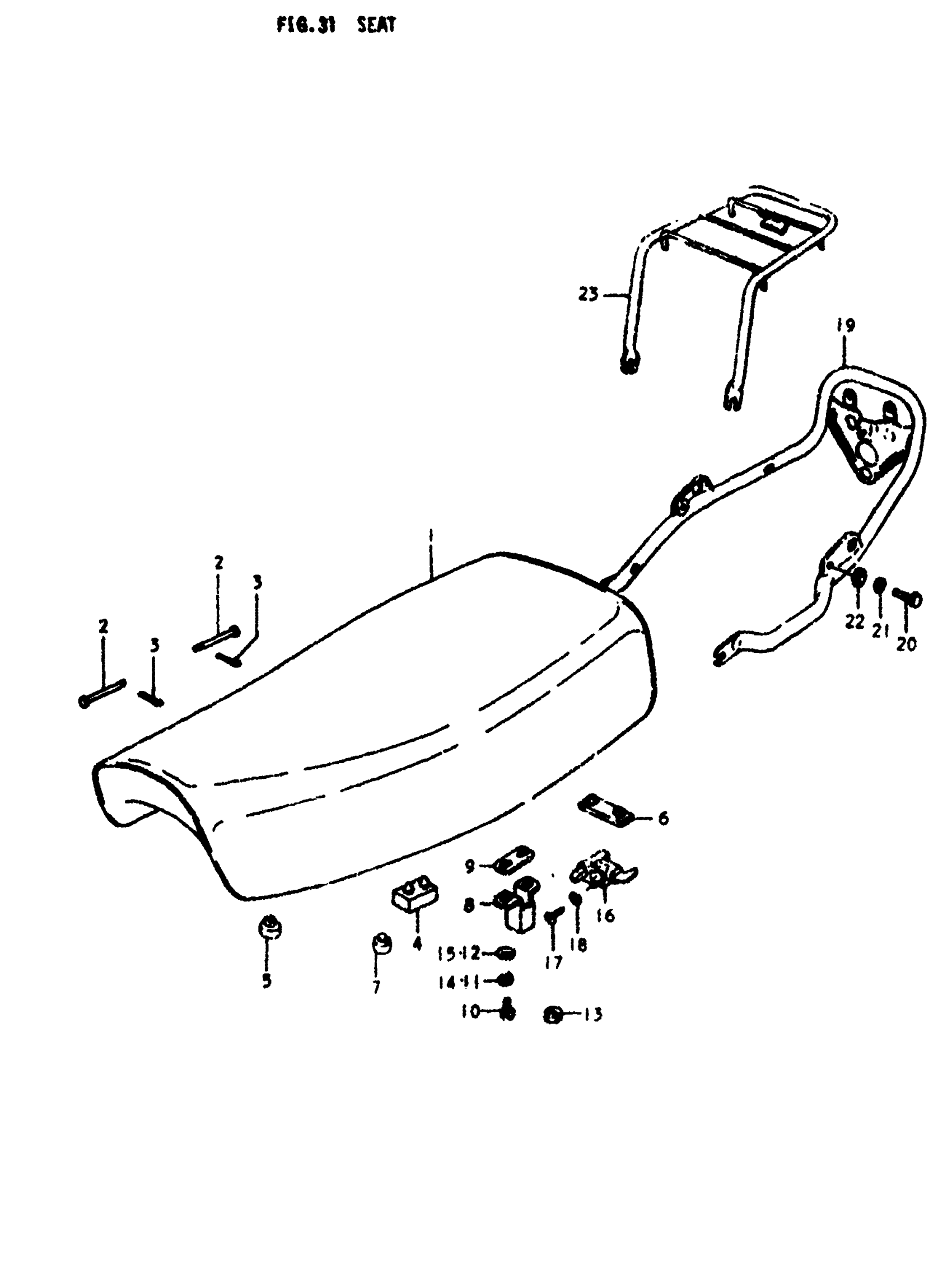

Suzuki TS125 (1979) SEAT Diagram

#

Description
Price

1

SEAT ASSY | C

45100-29600-865

Unavailable

1

SEAT ASSY | N This part replaces 45100-29620-865.

45100-29320-865

Unavailable

2

PIN

09200-06018

$2.06

3

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

4

CUSHION

09321-08006

$2.90

5

CUSHION

09321-10002

$2.22

6

CUSHION

09321-08009

$3.05

7

CUSHION

09321-10001

$2.61

8

PLATE, CLAMP GUIDE

45213-29300

Unavailable

9

SHIM | C

45217-45001

Unavailable

9

SHIM | N; 8.5x18x1.0

09160-08045

$2.32

10

BOLT | C This part replaces 01107-06128.

01500-06127

$1.97

11

LOCK WASHER | C This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER | C This part replaces 08322-21068.

08322-01067

$2.13

13

.NUT | N This part replaces 08310-11068.

08310-00067

$2.13

14

LOCK WASHER | N This part replaces 08321-31068.

08321-01067

$2.13

15

WASHER | N This part replaces 08322-21068.

08322-01067

$2.13

16

SEAT LOCK SET | C This part replaces 95700-30831.

95700-30832

$74.08

16

SEAT LOCK SET | N

95700-30832

$74.08

17

SCREW This part replaces 02112-05128.

02112-05127

$1.97

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

BAR, REAR COMBINATION LAMP

41580-48620

Unavailable

20

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

WASHER This part replaces 08322-21088.

08322-01087

$2.13

23

CARRIER, SPORTS | C; OPT

46310-48100

Unavailable
