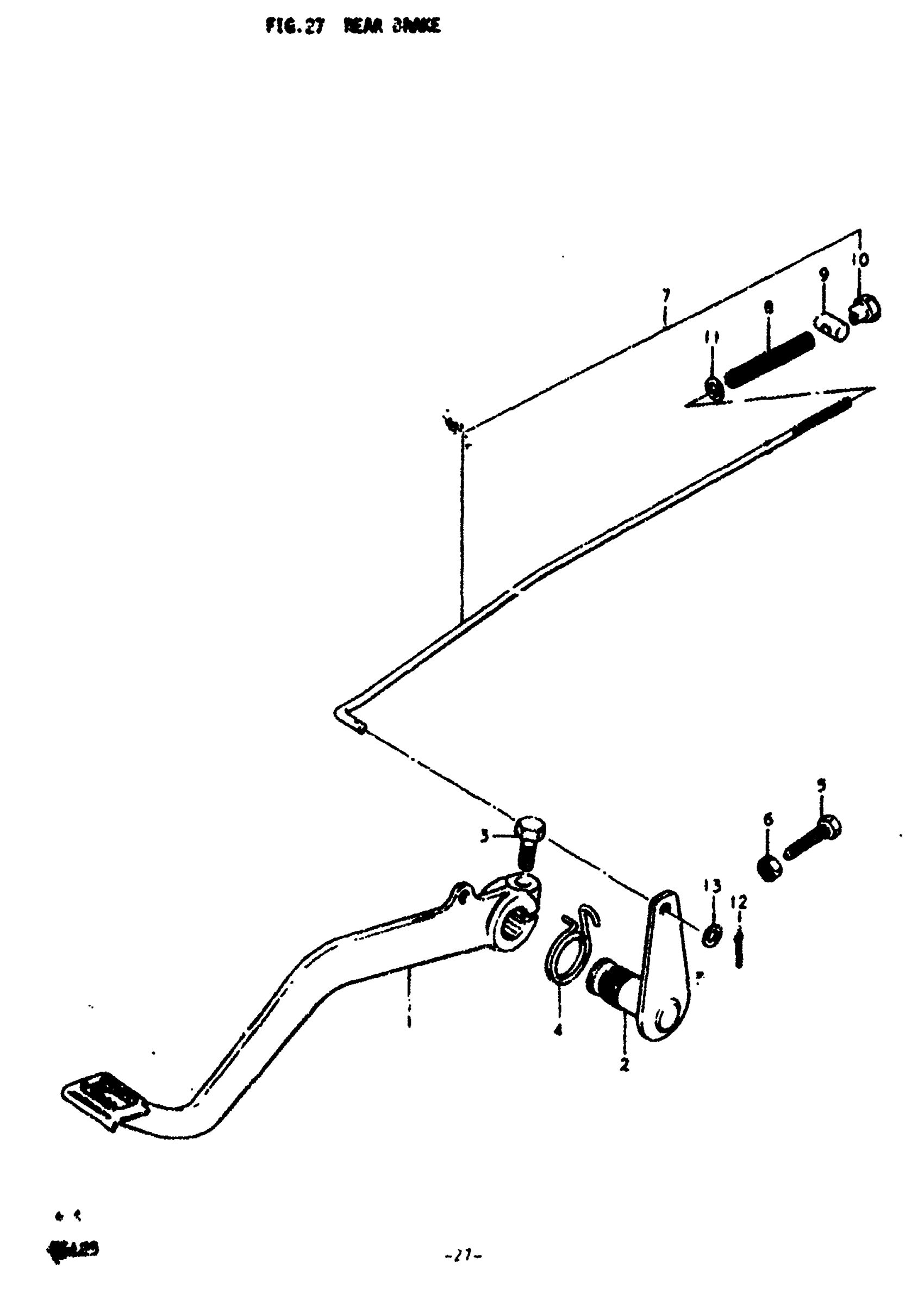

Suzuki TS125 (1979) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-29301

Unavailable

2

ARM, PEDAL LOD

43120-29300

Unavailable

3

BOLT This part replaces 01107-06208.

01500-06207

$2.28

4

SPRING

09448-25001

$4.15

5

BOLT | 6x27

09100-06009

$1.91

6

.NUT This part replaces 08310-11068.

08310-00067

$2.13

7

LOD ASSY, REAR BRAKE | Includes Item(s) 8 - 13

43300-46000

Unavailable

8

SPRING

09440-09004

$2.20

9

PIN

09209-11002

$2.19

10

.NUT This part replaces 09150-06001.

09150-06010

$3.10

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13
