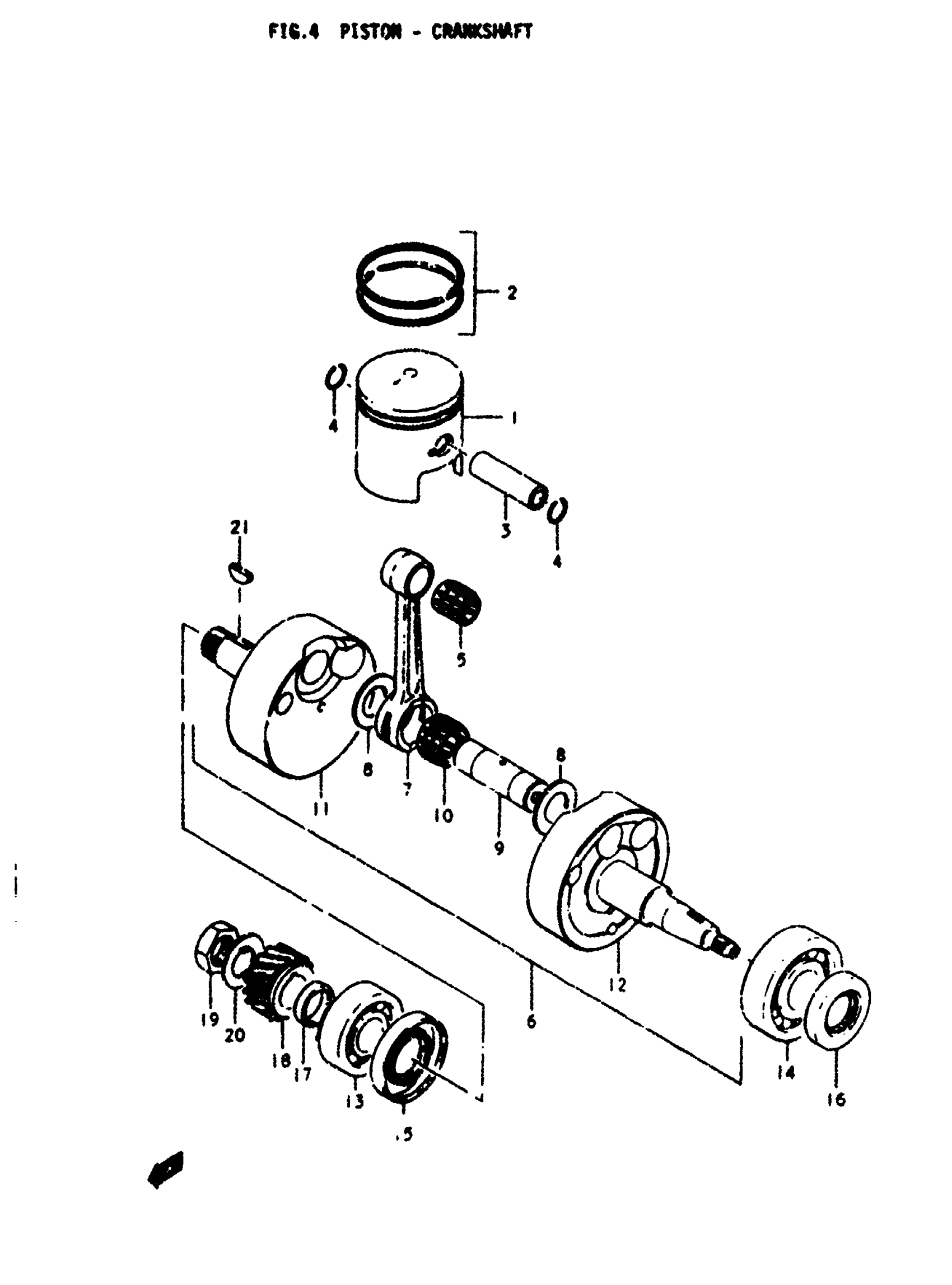

1979 Suzuki TS125 Piston - Crankshaft Diagram

← All diagrams

Find the part on the Piston - Crankshaft diagram for your 1979 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki TS125 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD This part replaces 12110-48000.

12110-48001

1
Out of stock

1

PISTON SET,OS:. | OS:0.5 This part replaces 12110-48000-050.

12100-48000-050

1
Out of stock

1

PISTON SET,OS:1 | OS:1.0 This part replaces 12110-48000-100.

12100-48000-100

1
Out of stock

2

RING SET, PISTO This part replaces 12140-28010.

12140-28021

1
Out of stock

2

RING SET PISTON | OS:0.5 This part replaces 12140-28010-050.

12140-28011-050

1
Out of stock

2

RING SET PISTON | OS:1.0 This part replaces 12140-28010-100.

12140-28011-100

1
Out of stock

3

PIN This part replaces 12151-28000.

12151-05200

1
Out of stock

4

RING

09381-14001

2
Out of stock

5

ROLLR BRG,14X18 This part replaces 09263-14006.

09263-14022

1
Out of stock

6

NO DESCRIPTION AVAILABLE | CN; Includes Item(s) 7 - 7 This part replaces 12200-48000.

12200-48002

1
Out of stock

7

CONNECTING ROD | C This part replaces 12161-12001.

12161-39300

1
Out of stock

7

CONNECTING ROD | N This part replaces 12161-12002.

12161-39300

1
Out of stock

8

THRUST WASHER | N19x32x1; Includes Item(s) 9 - 12

09160-19001

2
Out of stock

9

PIN, CRANK This part replaces 12211-48000.

12211-48001

1
Out of stock

10

BEARING This part replaces 09263-19007.

09263-19009

1
Out of stock

11

CRANKSHAFT, RH

12221-48000

1
Out of stock

12

CRANKSHAFT,L | C This part replaces 12261-48000.

12261-48002

1
Out of stock

12

CRANKSHAFT,L | N This part replaces 12261-48001.

12261-48002

1
Out of stock

13

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

1
Out of stock

14

BEARING, LH

09262-25049

1
Out of stock

15

OIL SEAL, RH

09283-26007

1
Out of stock

16

OIL SEAL, LH This part replaces 09283-25037.

09283-25066

1
Out of stock

17

SPACER | 20x28x7

09180-20037

1
Out of stock

18

NO DESCRIPTION AVAILABLE | NT:16 This part replaces 21111-28000.

21111-28001

1
Out of stock

19

NUT

09140-18002

1
Out of stock

20

WASHER

09166-18001

1
Out of stock

21

KEY

08341-31059

1
Out of stock
