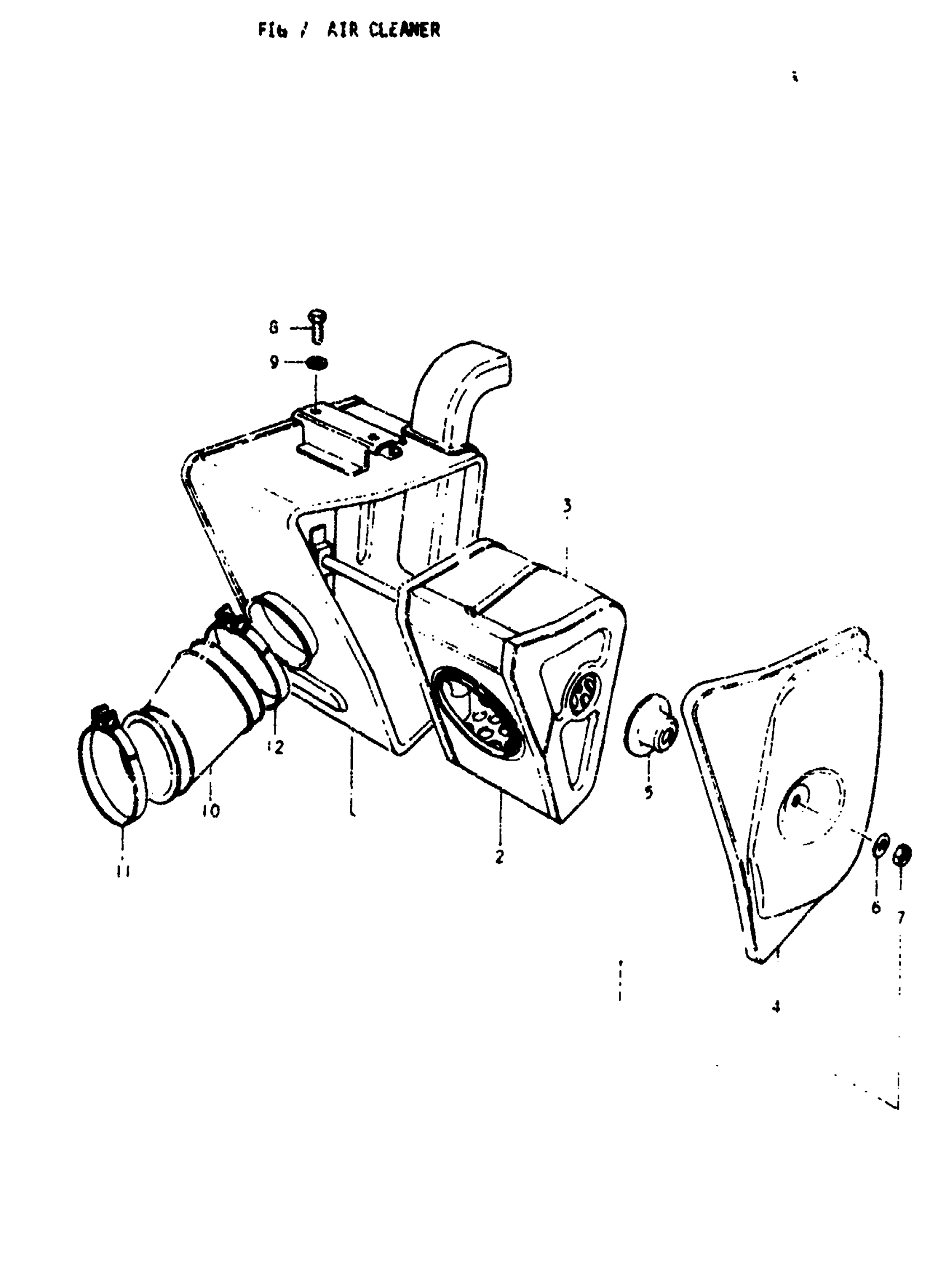

Suzuki TS125 (1979) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | C,N; Includes Item(s) 2 - 4 This part replaces 13700-48010.

13700-48511

Unavailable

2

FILTER ASSY

13780-29310

$28.85

3

FILTER | C,N

13781-29310

$7.60

4

CAP | C,N

13771-29310

$21.62

5

SPACER | C,N; Includes Item(s) 6 - 7

13790-29310

$9.50

6

WASHER | C,N This part replaces 08322-21068.

08322-01067

$1.86

7

.NUT This part replaces 08310-11068.

08310-00067

$1.83

8

BOLT | C,N This part replaces 01107-06128.

01500-06127

$1.97

9

WASHER | C,N This part replaces 08322-21068.

08322-01067

$1.86

10

HOSE, AIR INLET | C,N

13881-48000

$18.93

11

CLAMP, NO. 1 | C,N

09402-52306

$4.49

12

..CLAMP | C,N This part replaces 09402-60306.

09402-60208

$4.62
