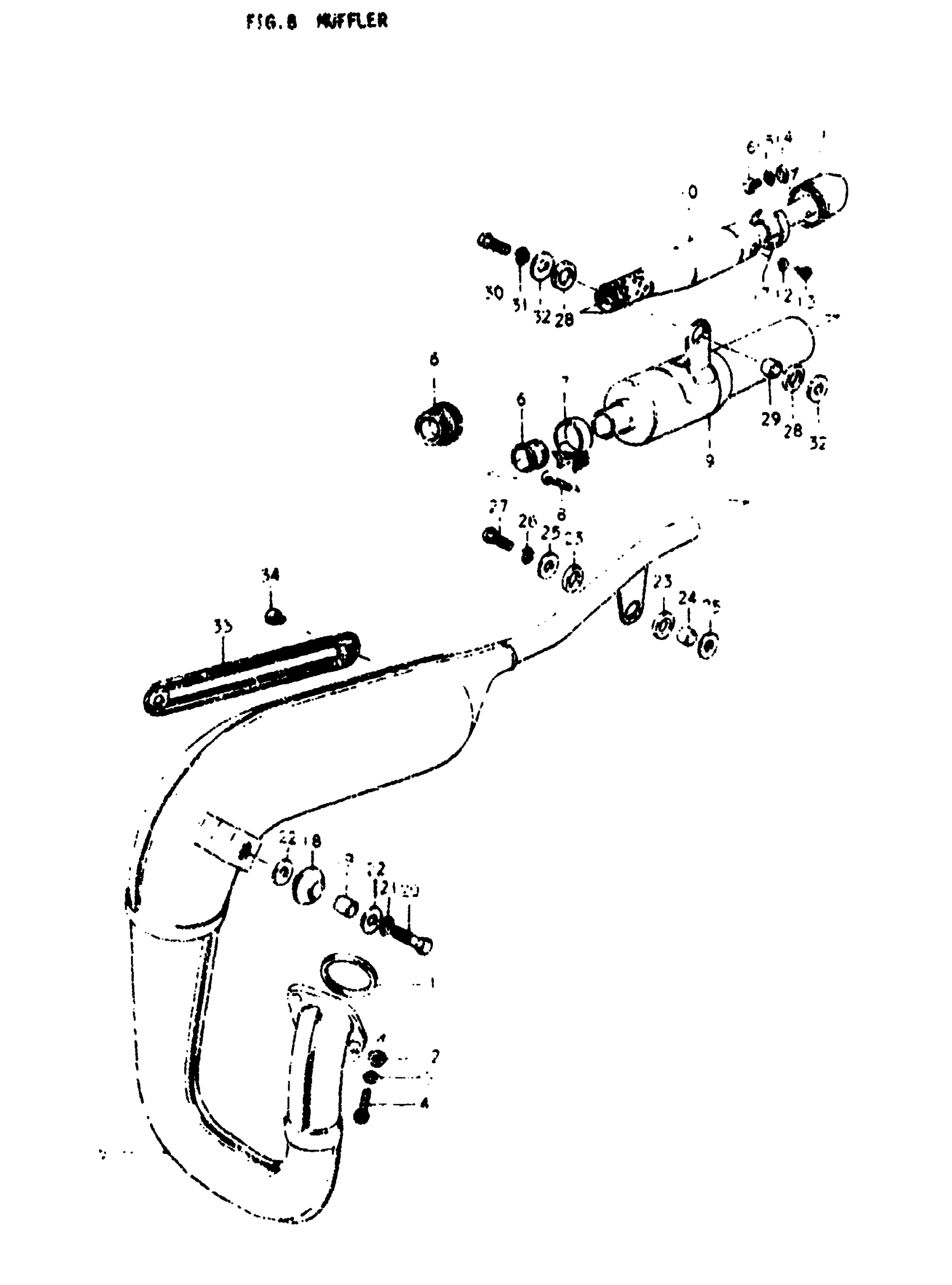

Suzuki TS125 (1979) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

2

WASHER This part replaces 08322-21068.

08322-01067

$2.13

3

LOCK WASHER | N This part replaces 08321-21068.

08321-01067

$2.13

4

BOLT, STARTING MOTOR This part replaces 09128-06012.

09103-06212

$2.47

5

MUFFLER ASSY This part replaces 14310-48000.

14310-48520-H01

Unavailable

6

CONNECTOR | C This part replaces 14771-48000.

14771-48002

$13.04

6

CONNECTOR | N This part replaces 14771-48001.

14771-48002

$13.04

7

CLAMP | C; USED WITH 14771 18000

09402-31602

Unavailable

8

SCREW | C; USED WITH 14771-48000 This part replaces 02112-06208.

02112-06207

$1.78

9

NO DESCRIPTION AVAILABLE | Includes Item(s) 10 - 11 This part replaces 14303-48601.

14303-48601-H01

Unavailable

10

BODY, ARRESTOL | N

14810-38601

Unavailable

11

TUBE, OCEAN OUT

14850-48000

Unavailable

12

LOCK WASHER | Includes Item(s) 13 - 15 This part replaces 08321-21058.

08321-0105A

$1.84

13

SCREW This part replaces 02112-05086.

02112-0508A

$1.49

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

SCREW | Includes Item(s) 17

09128-06013

$1.49

17

BAND, ARRESTOR

14843-38600

Unavailable

18

DAMPER,MUFFLER, This part replaces 14772-30500.

14772-30501

$3.03

19

SPACER,8.5X12X1 | 8x12x15 This part replaces 09180-08048.

09180-08302

$2.19

20

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

WASHER | 8.2x27x2

09360-08007

Unavailable

23

WASHER

09120-14006

Unavailable

24

SPACER,8.5X14X9 This part replaces 09180-08075.

09180-08200

$2.97

25

WASHER (8.5X26X1.6) | 8.2x26x1.6 This part replaces 09160-08005.

09160-08134

$2.03

26

.LOCK WASHER | N This part replaces 08321-21088.

08321-01087

$2.13

27

BOLT | C This part replaces 01107-08258.

01500-08257

$2.50

28

CUSHION | C This part replaces 09320-14006.

14761-03450

$1.80

29

SPACER, TAIL COVER RR RR | 8.6x13x8x9 This part replaces 09180-08050.

09180-08199

$2.12

30

BOLT This part replaces 01107-08258.

01500-08257

$2.50

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

$2.03

33

COVER,MUFLER

14781-48000

$24.20

34

SCREW This part replaces 02112-06088.

02112-06087

$1.49
