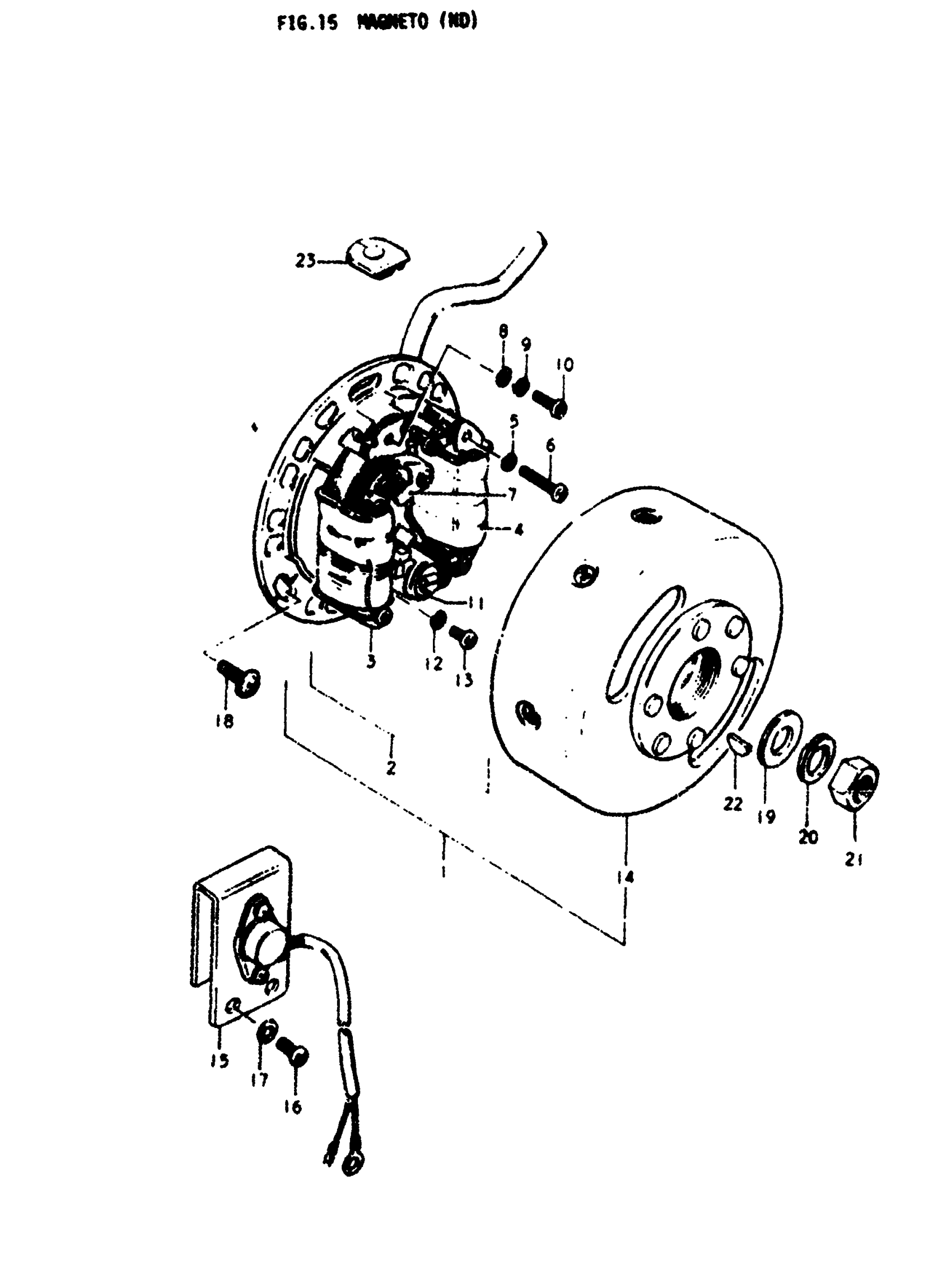

Suzuki TS125 (1979) MAGNETO (NO) Diagram

#

Description
Price

1

STATOR ASSY | C; Includes Item(s) 2 - 14 This part replaces 32100-48600.

32101-48610

Unavailable

2

NO DESCRIPTION AVAILABLE | C This part replaces 32101-48600.

32101-48601

Unavailable

3

COIL, LIGHTING | C

32120-48600

Unavailable

4

COIL, PRIMARY | C

32140-48600

Unavailable

5

LOCK WASHER | C This part replaces 08321-21048.

08321-0104A

$1.84

6

SCREW | C This part replaces 02112-04258.

02112-0425B

$2.34

7

POINT ASSY, CONTACT | C

32240-43012

$38.45

8

WASHER | C This part replaces 08322-21048.

08322-01047

$1.86

9

LOCK WASHER | C This part replaces 08321-21048.

08321-0104A

$1.84

10

SCREW | C

09125-04001

Unavailable

11

CONDENSER | C

32341-43012

Unavailable

12

LOCK WASHER | C This part replaces 08321-21048.

08321-0104A

$1.84

13

SCREW | C This part replaces 02112-04108.

02112-04107

$1.55

14

NO DESCRIPTION AVAILABLE | C This part replaces 32102-48600.

32102-39131

Unavailable

15

REGULATOR, VOLTAGE | C This part replaces 32500-27600.

32500-25600

Unavailable

16

SCREW | C This part replaces 02112-06128.

02112-06127

$1.84

17

WASHER | C This part replaces 08322-21068.

08322-01067

$2.13

18

SCREW

09139-05011

$2.38

19

WASHER This part replaces 08322-21108.

08322-01107

$2.15

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

NUT This part replaces 09140-10003.

09140-10041

$2.38

22

KEY

08341-31039

$1.89

23

GROMMET

09309-09007

Unavailable
