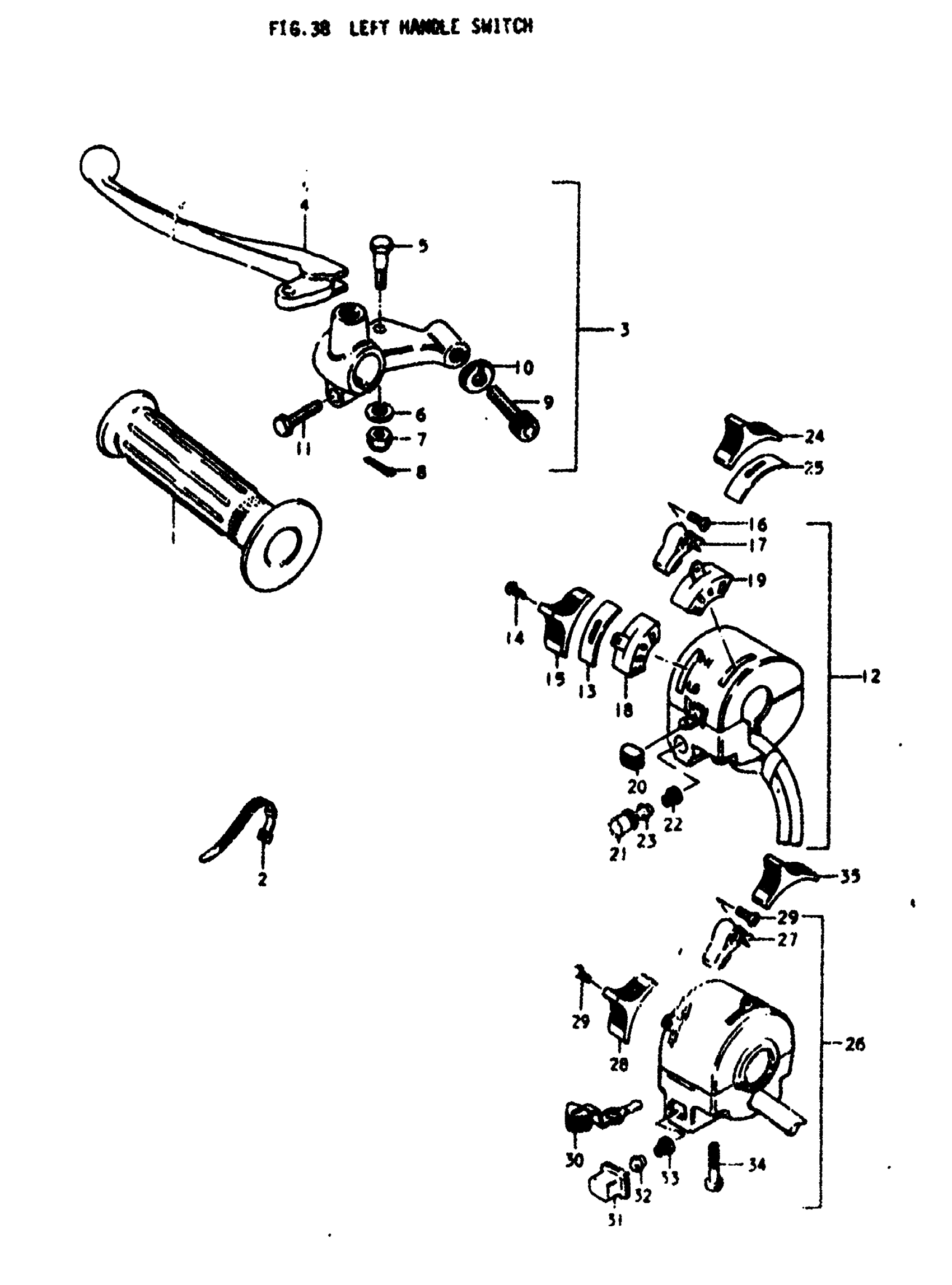

Suzuki TS125 (1979) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH (L:130) | C

57211-28600

$16.32

1

GRIP,L | F.NO 115351~ This part replaces 57211-45020.

57211-45021

$11.44

2

CLAMP | L:120

09407-12402

$3.04

3

LEVER ASSY, CLUTCH (VINYL CORT | CC

37500-26013

Unavailable

3

LEVER ASSY, CLUTCH | C

57400-26014

Unavailable

3

LEVER ASSY, CLUTCH | Includes Item(s) 4 - 11 This part replaces 57500-29301.

57500-30501

Unavailable

4

LEVER, CLUTCH | C

57620-45010

Unavailable

4

LEVER, CLUTCH | C This part replaces 57620-29400.

57620-45010

Unavailable

5

BOLT This part replaces 57431-11010.

57431-11013

$6.31

6

LOCK WASHER | C This part replaces 08321-21068.

08321-01067

$2.13

7

NUT | C

57433-11010

$5.64

7

.NUT | FOR 57500-36013 57500-29301 This part replaces 08319-21068.

08319-2106A

$1.91

8

PIN | C This part replaces 04111-16158.

04111-1620A

$1.49

9

ADJUSTER, CABLE

57441-26010

$4.48

10

NUT

57442-11010

$2.79

11

BOLT This part replaces 01107-06208.

01500-06207

$2.28

12

SWITCH ASSY, HANDLE LH | C; Includes Item(s) 13 - 23

37400-28660

Unavailable

13

PLATE, DIMMER SWITCH | C

37422-28450

Unavailable

14

SCREW | C This part replaces 03221-03088.

03221-0308B

$2.10

15

KNOB, DIMMER | C

57713-28050

Unavailable

16

SCREW | C

03231-03108

Unavailable

17

KNOB, STOP | C

37414-28660

Unavailable

18

BLOCK, DIMMER SWITCH | C

57530-28051

Unavailable

19

BLOCK, LIGHTING SWITCH | C

57730-28631

Unavailable

20

KNOB, TURNSIGNAL | C

57742-28050

Unavailable

21

BUTTON, HORN | C

57751-28050

Unavailable

22

SPRING | C

57761-28050

Unavailable

23

PLATE | C

37522-28050

Unavailable

24

KNOB, LIGHTING | COPT

57712-28052

Unavailable

25

NO DESCRIPTION AVAILABLE | COPT This part replaces 57714-28051.

37412-28450

Unavailable

26

NO DESCRIPTION AVAILABLE | F.NO. : 15351~; Includes Item(s) 27 - 34 This part replaces 37400-32411.

37400-32412

Unavailable

27

KNOB, STOP

37414-45602

Unavailable

28

KNOB, DIMMER

37421-45012

$6.17

29

SCREW This part replaces 02122-03068.

02122-03067

$1.80

30

KNOB, TURN SIGNAL

37513-45011

$7.22

31

BUTTON, HORN

57371-45000

$4.52

32

CONTACT

57372-45000

$4.45

33

SPRING

57382-45000

$3.37

34

SCREW This part replaces 02112-05258.

02112-05257

$1.49

35

KNOB, LIGHTING | OPT FOR 37400-32411

37411-45012

$5.24
