1979 Suzuki TS125 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

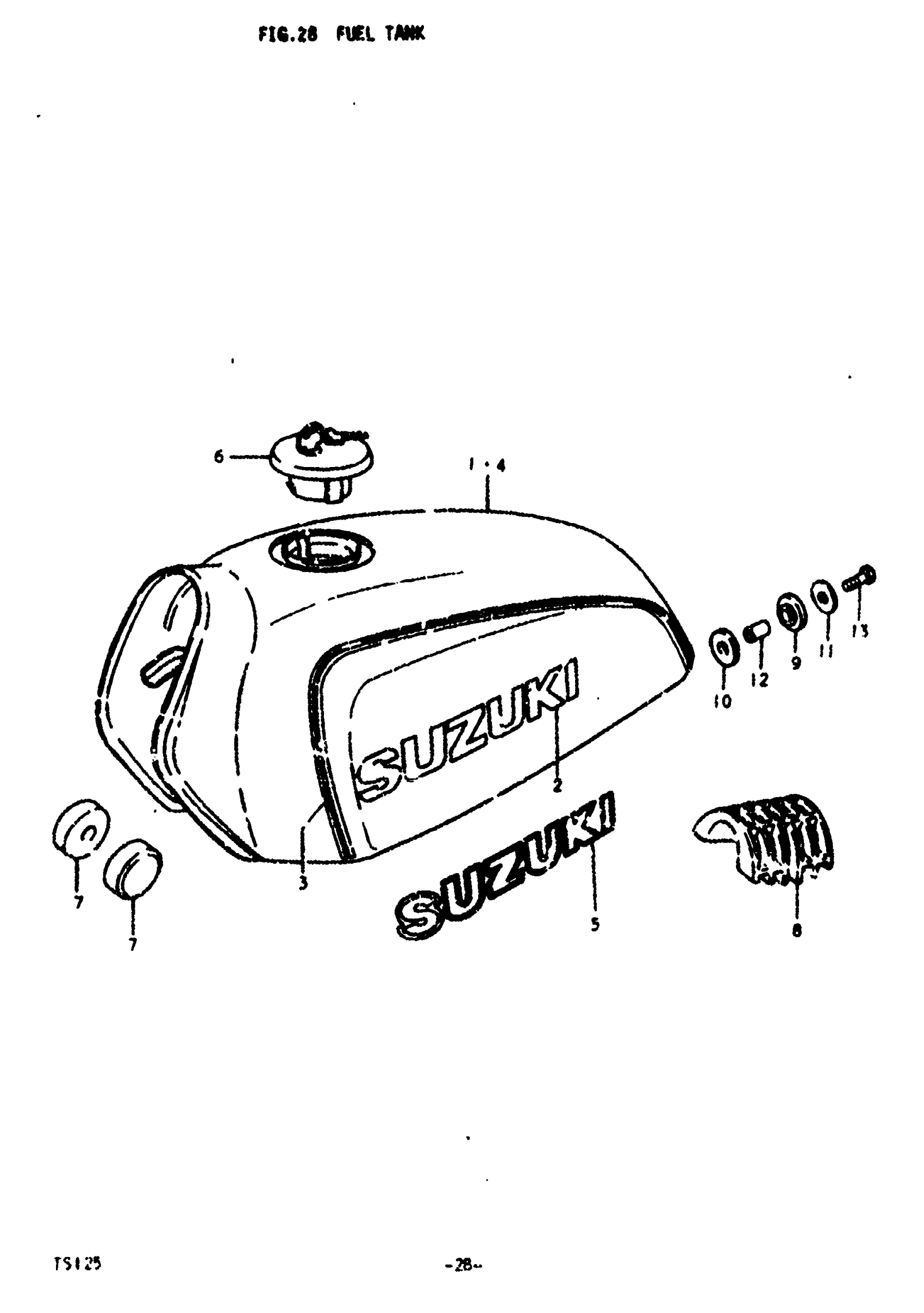

1979 Suzuki TS125 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | C; Includes Item(s) 2 - 3 This part replaces 44100-48000-03J.

44110-29301-13L

1
Out of stock

2

EMBLEM | C This part replaces 68111-28610-064.

68111-43400-13L

1
Out of stock

3

TAPE SET | C

68100-48810-61P

1
Out of stock

4

TANK, FUEL | N; Includes Item(s) 5

44100-48030-03K

1
Out of stock

5

EMBLEM | N

68111-48310-66C

2
Out of stock

6

CAP SET,FUEL TA | C This part replaces 44200-30700.

44200-30832

1
Out of stock

6

CAP SET,FUEL TA | C This part replaces 44200-30701.

44200-30832

1
Out of stock

6

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

1
Out of stock

7

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

8

CUSHION, CENTER

44541-28000

1
Out of stock

9

CUSHION, REAR NO. 1

09320-12013

1
Out of stock

10

CUSHION, REAR NO. 2

09320-12017

1
Out of stock

11

WASHER, EXHAUST SUPPORT | 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

1
Out of stock

12

SPACER 8.2X12X1 | 8.4x12x12 This part replaces 09180-08032.

09180-08143

1
Out of stock

13

BOLT This part replaces 01107-08306.

01500-0830B

1
Out of stock
