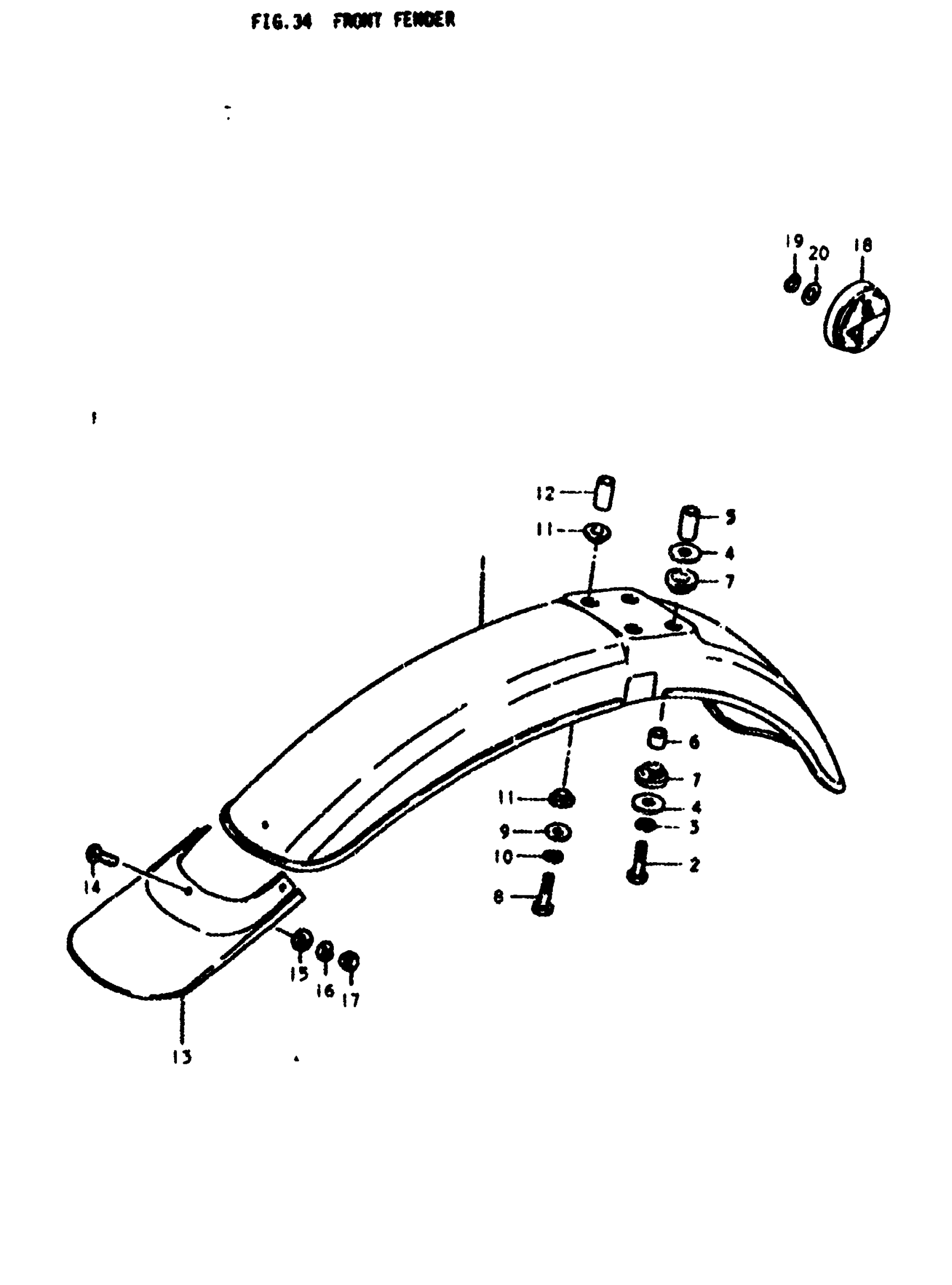

Suzuki TS125 (1979) FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C; TO 53111-48101-185 USED WITH 09180-06048 09180-06031 This part replaces 53111-48100-189.

53111-48101-13L

Unavailable

1

FENDER, FRONT | N

53111-48101-03K

Unavailable

2

BOLT | C This part replaces 01107-06358.

64455-07L00

$1.59

3

LOCK WASHER | C This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER (6.5X24X1.2) | C; 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

$2.03

5

SPACER (6.5X10.5X15) | C; 6.5x10.5x15 This part replaces 09180-06061.

09180-06079

$2.42

6

SPACER | C; 6.5x10.5x13.5 This part replaces 09180-06046.

09180-06292

$2.47

7

CUSHION | C

09320-10003

$2.38

8

BOLT | N This part replaces 01107-06408.

01500-0640B

$2.62

9

WASHER | N This part replaces 08322-21068.

08322-01067

$2.13

10

LOCK WASHER | N This part replaces 08321-21048.

08321-0104A

$1.84

11

WASHER (6.3X16X1) | N This part replaces 09180-06048.

09169-06053

$1.49

12

SPACER (6.5X10X20) | N This part replaces 09180-06031.

09180-06296

$2.45

13

MUD FLAP

53411-28600

Unavailable

14

SCREW

02142-04127

$1.57

15

WASHER This part replaces 08322-21048.

08322-01047

$1.86

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

17

NUT This part replaces 08310-11048.

08310-00047

$2.23

18

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

WASHER This part replaces 08322-21058.

08322-01057

$2.13
