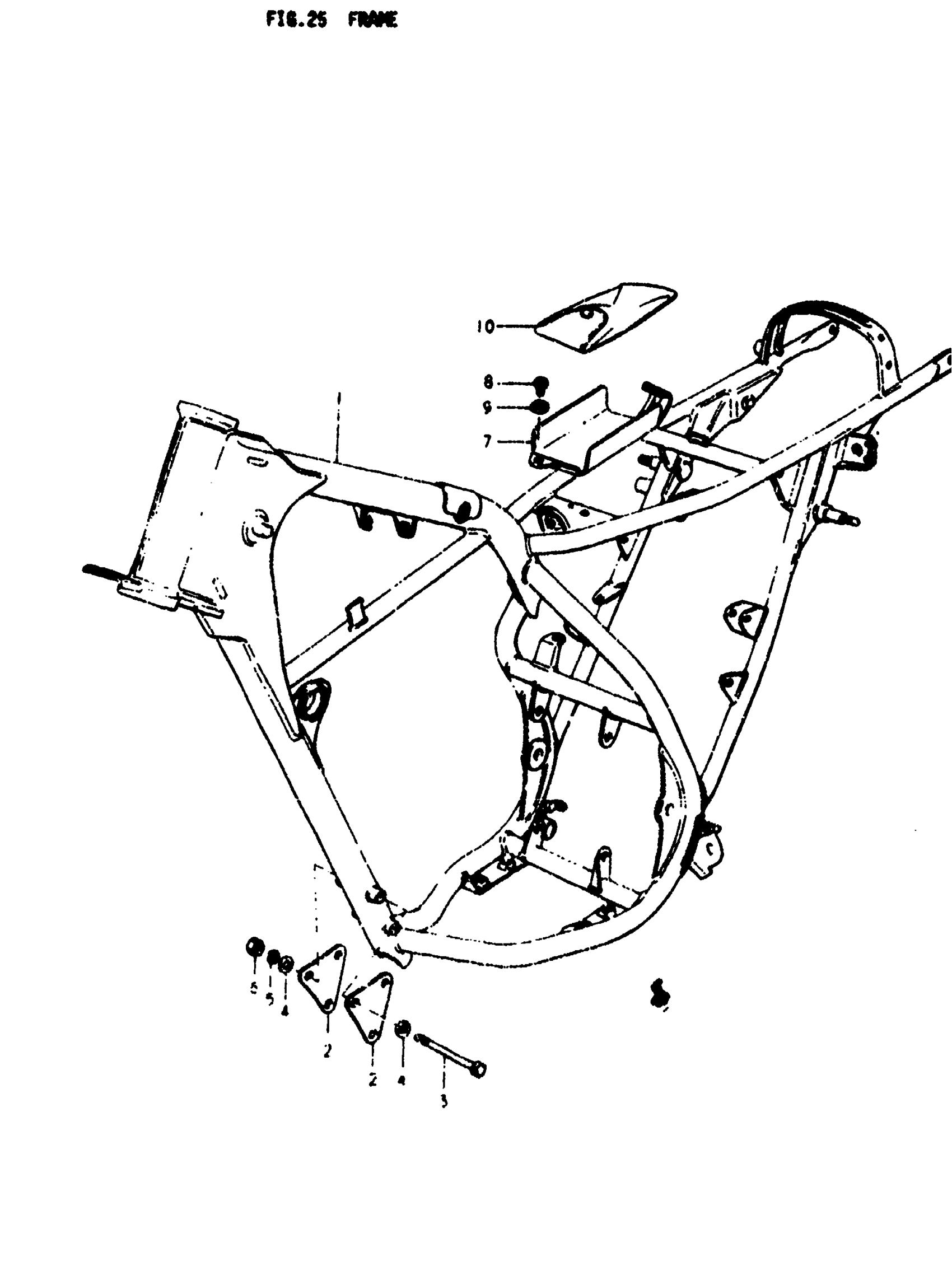

Suzuki TS125 (1979) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C This part replaces 41100-48000-019.

41100-48021-019

Unavailable

1

NO DESCRIPTION AVAILABLE | N This part replaces 41100-48001-019.

41100-48021-019

Unavailable

2

PLATE, ENGINE MOURTING

41991-48000

Unavailable

3

BOLT This part replaces 01107-08758.

01500-0875B

$4.10

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

.NUT This part replaces 08310-12068.

08310-00067

$2.13

7

HOLDER, TOOL

41550-29301

Unavailable

8

SCREW This part replaces 02112-06108.

02112-06107

$1.49

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02
