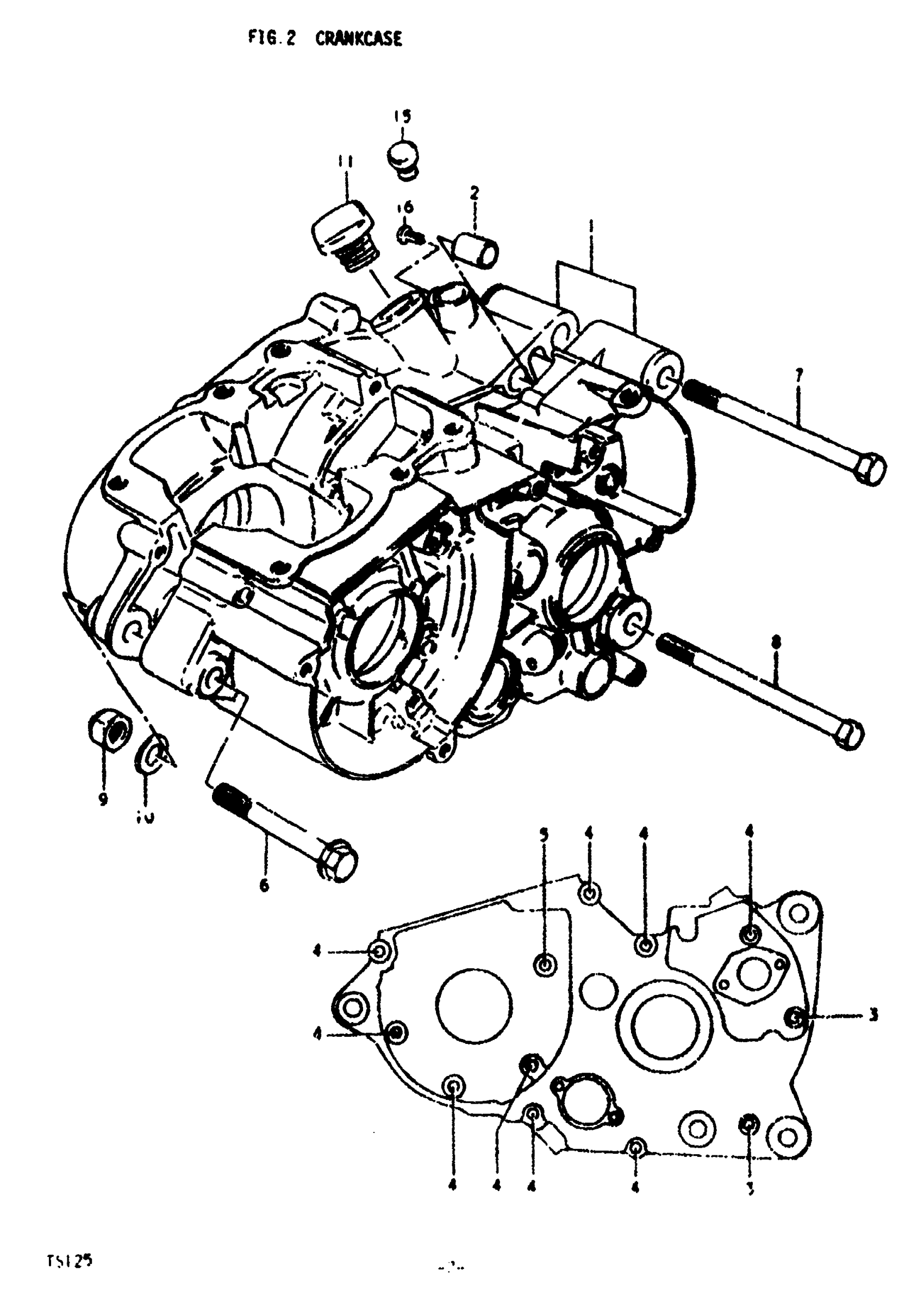

Suzuki TS125 (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 5 This part replaces 11300-48810.

11300-48812

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

SCREW This part replaces 02112-06358.

02112-06357

$1.78

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW This part replaces 02112-06608.

02112-06607

$2.57

6

NO DESCRIPTION AVAILABLE This part replaces 01107-10758.

01500-10753

Unavailable

7

BOLT | 10x110

09100-10009

Unavailable

8

BOLT 10X115 | 10x115 This part replaces 09100-10016.

09100-10152

Unavailable

9

NUT

09159-10011

$3.23

10

WASHER This part replaces 08322-11108.

08322-01107

$2.15

11

PLUG This part replaces 09259-19001.

09259-19005

$2.98

12

PLUG(OD:19) | N This part replaces 09250-14002.

09250-14010

$2.25

13

SCREW | N This part replaces 02112-06068.

02112-06067

$1.93
