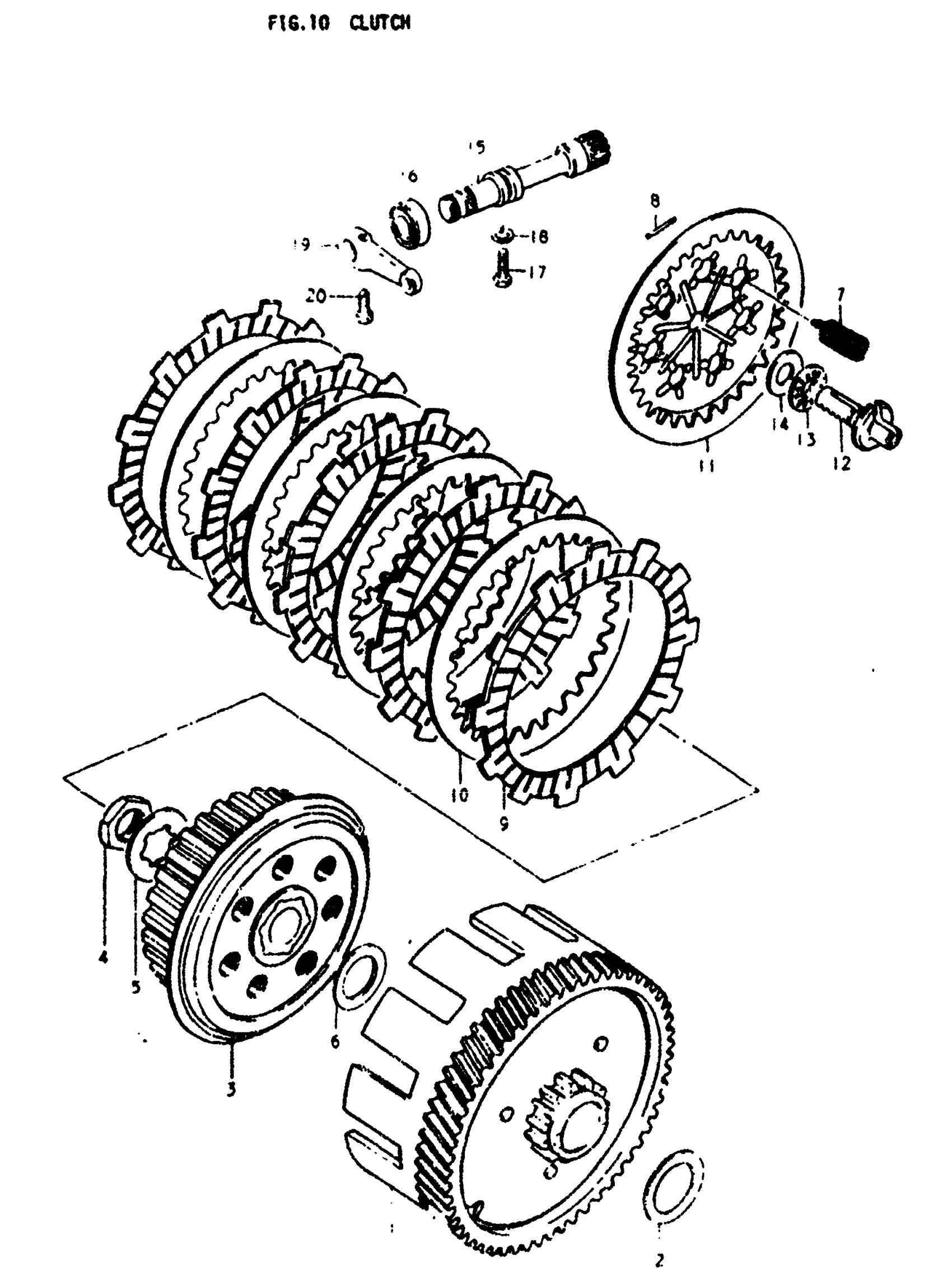

Suzuki TS125 (1979) CLUTCH Diagram

NO DESCRIPTION AVAILABLE | NT:57/17 This part replaces 21200-48001.

21200-48020

Unavailable

THRUST WASHER | 20x32x1

08211-20323

$3.03

HUB, CLUTCH SLEEVE

21410-28000

Unavailable

NUT This part replaces 09140-16001.

09140-16005

$3.75

WASHER

09167-17002

$1.91

THRUST WASHER | 17X28X1.5

08211-17282

$2.70

SPRING

09443-12018

$2.92

PIN

09261-02001

$1.56

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

PLATE, CLUTCH PRESSURE

21460-28200

Unavailable

RACK This part replaces 23165-48000.

23165-46000

$22.21

THRUST BEARING

09263-10002

$10.19

WASHER | 10.1x21.5x0.8 This part replaces 09160-10021.

09160-10121

$2.03

PINION, RELEASE This part replaces 23261-48000.

23261-28300

$45.38

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

BOLT

09135-06009

$2.23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

ARM, CLUTCH RELEASE

23271-29300

$29.50

BOLT This part replaces 01107-06208.

01500-06207

$2.28
