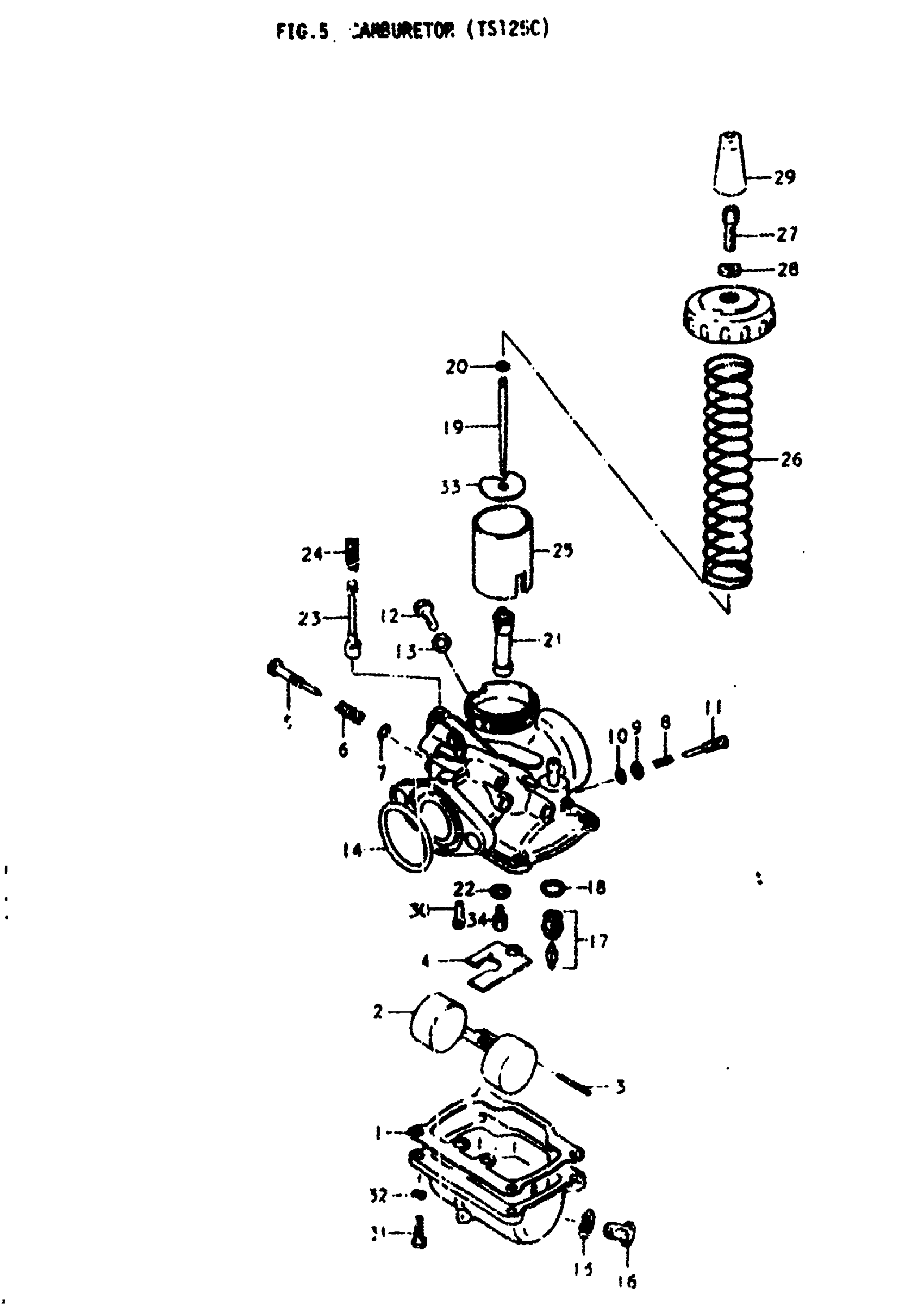

Suzuki TS125 (1979) CARBURETOR (TS125C) Diagram

#

Description
Price

0

CARBURETOR ASSY This part replaces 13200-48011.

13200-48120

$322.07

0

CARBURETOR ASSY | Includes Item(s) 1 This part replaces 13200-48111.

13200-48120

$322.07

1

GASKET, FLOAT CHAMBER

13251-11010

$5.62

2

FLOAT | Includes Item(s) 3 - 34

13252-11010

$24.87

3

.PIN, FLOAT

13254-01010

$3.62

4

PLATE

13259-97010

$5.50

5

SCREW, THROTTLE STOP

13267-41640

$19.15

6

SPRING

13268-48110

$4.64

7

O RING This part replaces 13294-30010.

13278-02340

$1.91

8

SPRING, PILOT AIR

13271-96110

Unavailable

9

WASHER This part replaces 13291-41640.

13606-18E00

$4.57

10

O RING

13278-45010

$6.30

11

SCREW, PILOT AIR

13269-41640

Unavailable

12

PLUG

13664-18654

$8.98

13

WASHER

13663-31010

$2.80

14

O RING This part replaces 13295-28010.

13295-28011

$3.35

15

GASKET

13249-05010

$1.98

16

SCREW

13247-05010

$5.11

17

VALVE,NEEDLE This part replaces 13370-28010.

13370-48051

$62.80

18

GASKET, NEEDLE VALVE

13392-58600

$1.82

19

NEEDLE, JET | 4DH7-2

13383-33010

$20.13

20

CLIP, NEEDLE

13394-10010

$5.45

21

NOZZLE, NEEDLE | N-8

09494-00207

Unavailable

22

WASHER, NEEDLE JET

13382-03110

$2.80

23

VALVE, STARTER

13411-15010

Unavailable

24

SPRING

13417-18630

$6.00

25

VALVE, THROTTLE | CA:1.5

13551-48110

Unavailable

26

SPRING, THROTTLE VALVE This part replaces 13573-97010.

13573-30900

$7.20

27

ADJUSTER, CABLE

13577-48110

$8.30

28

NUT, CABLE ADJUSTER

13661-16600

$4.64

29

BOOT, CABLE ADJUSTER

13681-16601

$8.26

30

JET, PILOT (30) | #30 This part replaces 09492-30003.

09492-30006

$9.55

31

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

32

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

33

SEAT, THROTTLE VALVE SPRING

13581-28010

$7.95

34

JET, MAIN | #85 FOR 13200-48111

09491-85002

Unavailable

34

JET, MAIN | #90 FOR 13200-48011

09491-90002

Unavailable

34

JET, MAIN | OPT #75

09491-75002

Unavailable

34

JET, MAIN | OPT #80

09491-80003

Unavailable

34

JET, MAIN | OPT #85

09491-85002

Unavailable

34

JET, MAIN | OPT #95 This part replaces 09491-95002.

09491-95006

Unavailable

34

JET, MAIN | OPT #100

09491-20002

Unavailable

34

JET, MAIN | OPT #110

09491-22003

Unavailable
