1972 Suzuki TS125 Turn Signal Lamp Diagram

← All diagrams

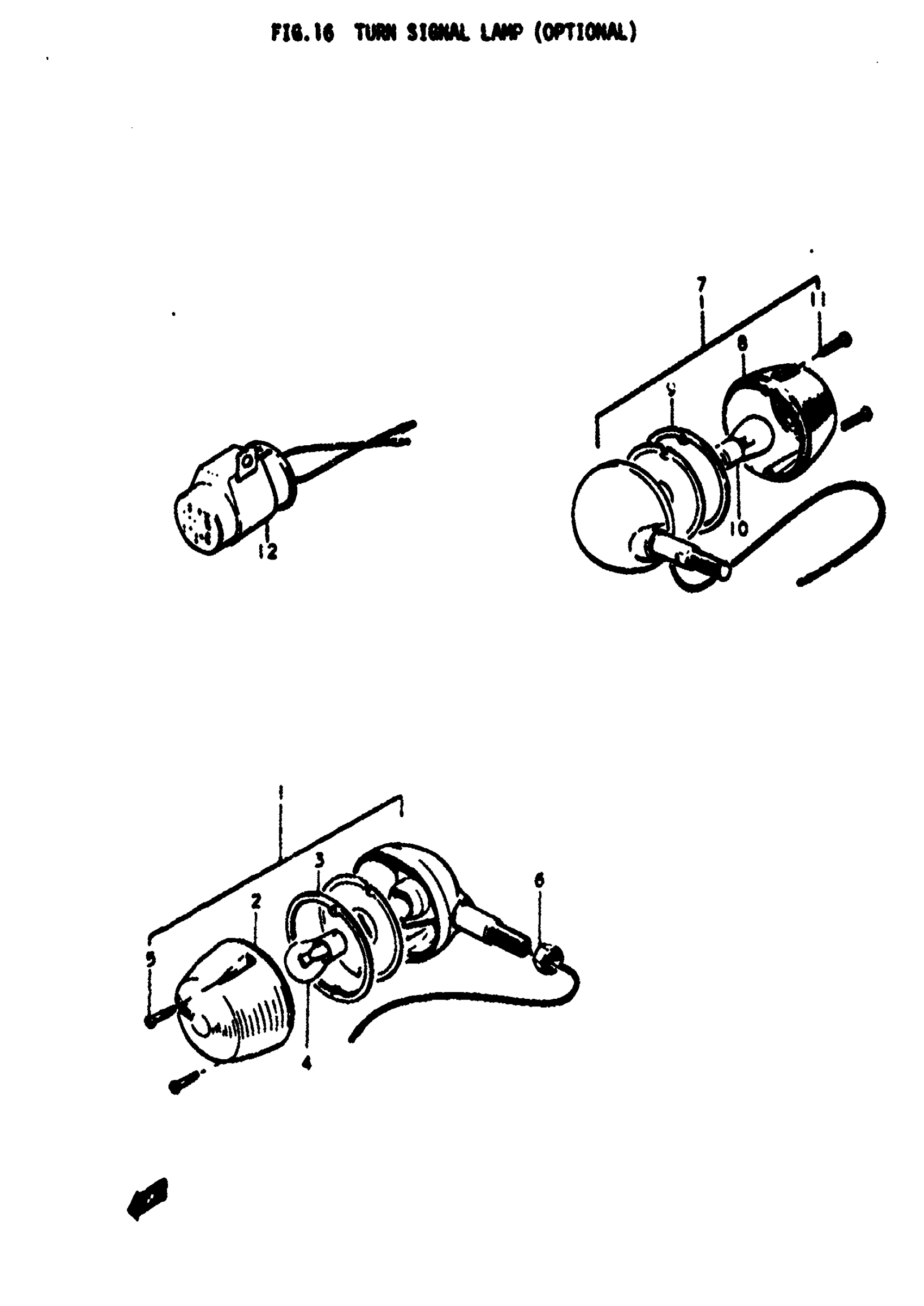

Find the part on the Turn Signal Lamp diagram for your 1972 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS125 Turn Signal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT TURN SIGNAL | Includes Item(s) 2 - 6

35601-28610

2
Out of stock

2

LENS

35612-12611

2
Out of stock

3

GASKET

35613-03610

2
Out of stock

4

BULB | 6V, 21CP US#1129

09471-06011

2
Out of stock

5

SCREW This part replaces 02133-03167.

02132-03167

4
Out of stock

6

NUT This part replaces 08312-31108.

08310-00107

2
Out of stock

7

LAMP ASSY, REAR TURN SIGNAL | TO 35603-28611; Includes Item(s) 8 - 11 This part replaces 35603-28610.

35603-28611

2
Out of stock

8

LENS

35652-22610

2
Out of stock

9

GASKET

35613-03610

2
Out of stock

10

BULB | 6V,-ICP US#1129

09471-06011

2
Out of stock

11

SCREW This part replaces 02133-03167.

02132-03167

4
Out of stock

12

RELAY ASSY,TRN This part replaces 38610-28610.

38610-05X50

1
Out of stock
