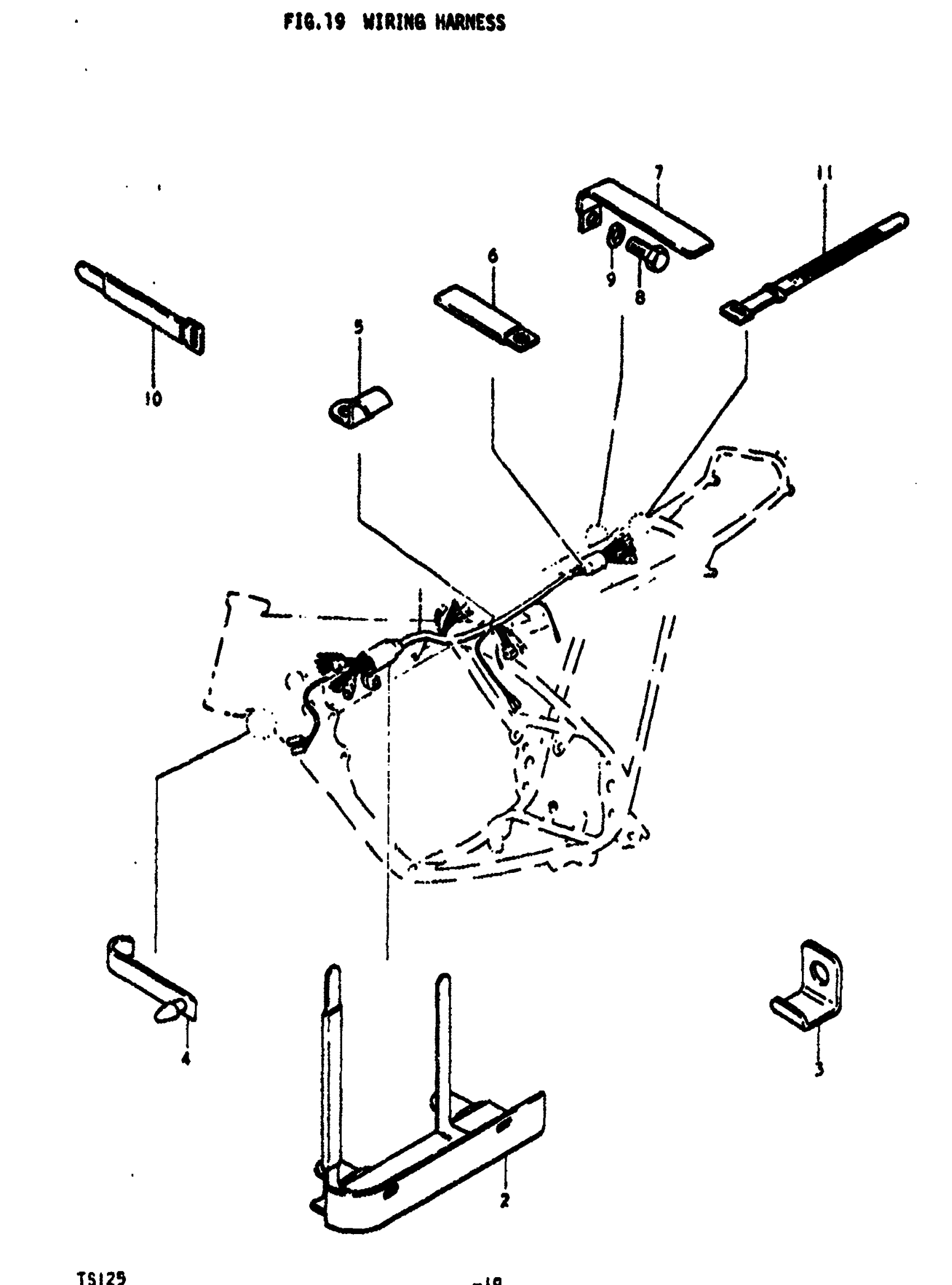

Suzuki TS125 (1972) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-28610

Unavailable

2

BOX, HARNESS CONECTOR

36670-28000

Unavailable

3

STAY,HARNESS CLAMP

36652-28000

Unavailable

4

BAND, WIRING HARNESS

33881-18400

Unavailable

5

CLAMP, HARNESS A | TO 09403-12304 This part replaces 09403-10305.

09403-12304

Unavailable

6

CLAMP | L:60 This part replaces 09403-00069.

09404-06037

Unavailable

7

CLAMP, BOOT | L:100

09403-00058

Unavailable

8

BOLT This part replaces 01112-06128.

01500-06127

$2.01

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

10

CLAMP | L:90 This part replaces 09407-09301.

09407-09303

$2.10

11

CLAMP, HARNESS

09407-12402

$2.82
