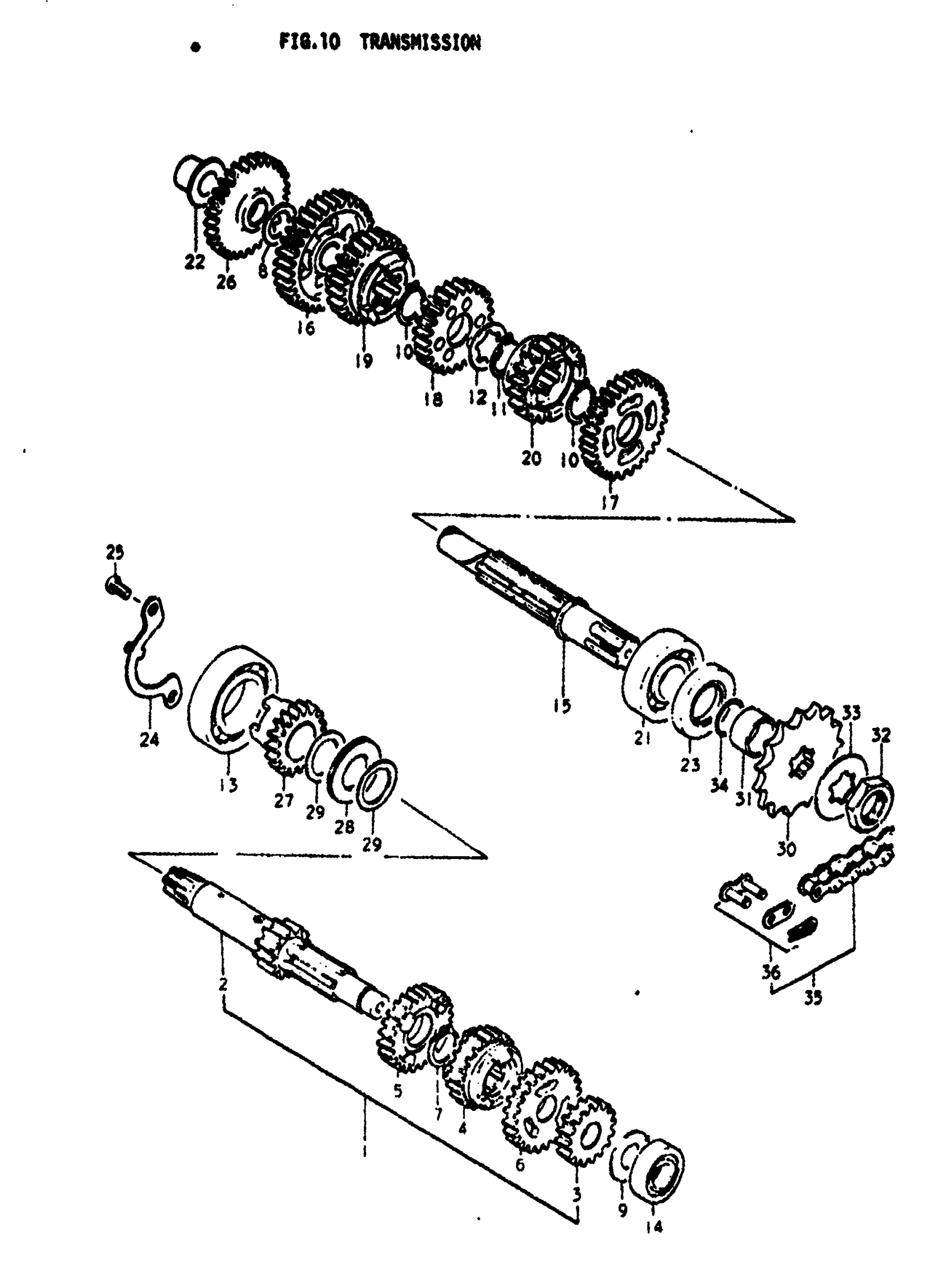

Suzuki TS125 (1972) TRANSMISSION Diagram

#

Description
Price

1

SHAFT ASSY, COUNTER | R; TO 24120-28002 USE WITH 25231-289001

24120-28001

Unavailable

1

SHAFT ASSY, COUNTER | R; TO 24120-28003

24120-28002

Unavailable

1

NO DESCRIPTION AVAILABLE | J; TO 24120-28004 USE WITH 26281-36100 09263-19006; Includes Item(s) 2 - 7 This part replaces 24120-28003.

24120-28006

Unavailable

2

NO DESCRIPTION AVAILABLE | TO 24121-28002 USE WITH 26281-36100 09263-19006 This part replaces 24121-28001.

24121-28002

Unavailable

3

GEAR, 2ND DRIVE | NT:16

24221-28001

Unavailable

4

GEAR, 3RD DRIVE | R; NT:20 TO 24231-28001 USE WITH 25231-28001

24231-28000

Unavailable

4

GEAR, 3RD DRIVE | R; NT:20 TO 24241-28002 USE WITH 24251-28002

24231-28001

Unavailable

4

GEAR, 3RD DRIVE | J; NT:20

24231-28002

Unavailable

5

NO DESCRIPTION AVAILABLE | NT:23* This part replaces 24241-28000.

24241-28001

Unavailable

6

GEAR, 5TH DRIVE | R; NT:25 TO 24251-28001 USE WITH 24231-28001

24251-28001

Unavailable

6

GEAR, 5TH DRIVE | J; NT:25 TO 24251-28003 This part replaces 24251-28002.

24251-28003

Unavailable

7

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

8

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

9

WASHER | 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

10

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

11

CIRCLIP, 3RD DRIVEN GEAR

09380-20006

$2.90

12

LOCK WASHER, LH This part replaces 09167-20007.

09167-20022

Unavailable

13

BALL BEARING This part replaces 08110-60060.

08113-60060

$24.18

14

BALL BEARING

08113-60020

$16.01

15

SHAFT, DRIVE | SEE NOTE 1.

24131-28001

Unavailable

16

GEAR, 1ST DRIVEN | NT:33

24310-28000

Unavailable

17

GEAR, 2ND DRIVEN | NT:29 This part replaces 24321-28000.

24321-28001

$85.15

18

NO DESCRIPTION AVAILABLE | NT:25 This part replaces 24331-28001.

24331-28002

Unavailable

19

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24341-28002.

24341-28003

Unavailable

20

NO DESCRIPTION AVAILABLE | NT:20 SEE NOTE 1. This part replaces 24351-28001.

24351-28002

Unavailable

21

BEARING

08163-62050

$27.58

22

BUSHING, DRIVESHAFT | TO 09309-15004 This part replaces 09303-15003.

09303-15004

$5.07

23

SEAL,OIL,25X44X | 25x44x7 This part replaces 09283-25009.

09283-25107

$6.02

24

HOLDER, BEARING

24741-28001

Unavailable

25

SCREW This part replaces 02112-06108.

02112-06107

$1.49

26

NO DESCRIPTION AVAILABLE | NT:29 SEE NOTE 2. This part replaces 26260-28002.

26260-28003

Unavailable

27

GEAR, KICK STRT | NT:18 TO 26281-36200 This part replaces 26280-23000.

26280-23010

Unavailable

28

BEARING, DRIVEN GEAR | 21x35x2.8 FROM 09360-21004

09263-21006

$15.48

29

WASHER, DRIVEN GEAR BEARING | 21x30x0.8

09160-21007

$2.92

30

SPROCKET, ENGINE | #428, NT:15, TO 27511-27100 This part replaces 27511-20000.

27511-27100

$29.03

30

SPROCKET, ENGINE | #428, NT:16, OPT

27511-20710

Unavailable

30

SPROCKET,ENGINE | #428, NT:14, OPT This part replaces 27511-36200.

27511-13700

Unavailable

31

SPACER, ENGINE SPROCKET

09180-20039

$7.31

32

NUT, ENGINE SPROCKET

09140-20001

$3.37

33

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

34

O RING

09280-20001

$1.65

35

CHAIN, DRIVE (RK428FDZ,124LE) | TO 27600-36011; Includes Item(s) 36 This part replaces 27600-36010.

27600-29B20-124

Unavailable

36

JOINT (RK) This part replaces 27620-20210.

27620-40220

$11.07
