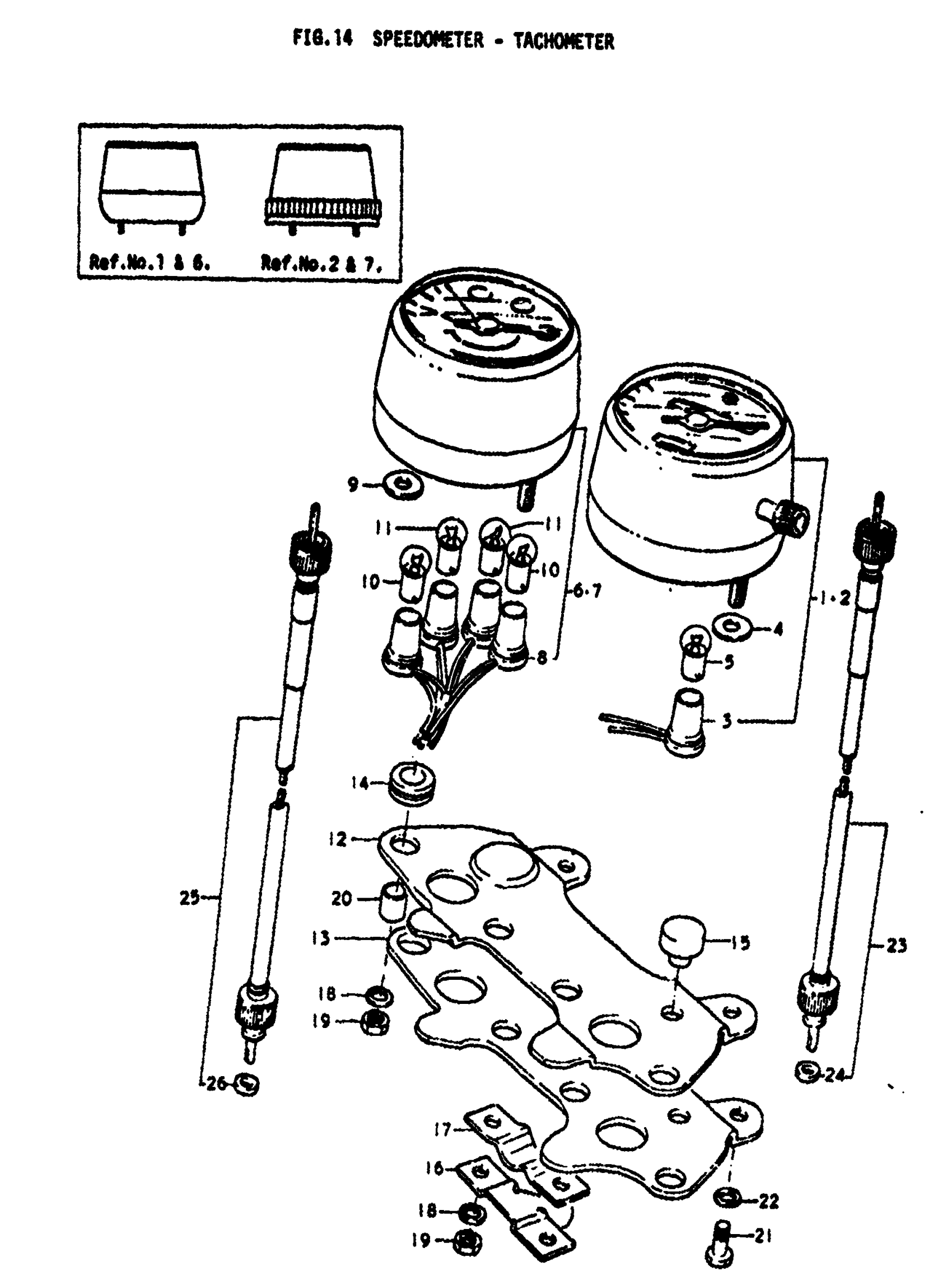

Suzuki TS125 (1972) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | R; NOT INCLUDES REF.NO.5

34100-28610-999

Unavailable

2

SPEEDOMETER ASSY | J; Includes Item(s) 3 - 5

34100-28611

Unavailable

3

SCOKET, SPEEDOMETER

34173-28010

Unavailable

4

WASHER (5.5X16X1.2) | J This part replaces 09160-05017.

09160-05043

$2.30

5

BULB | 6V,3W

09471-06002

$2.25

6

TACHOMETER ASSY | R; NOT INCLUDES REF.NO,10,11

34200-28010-999

Unavailable

7

TACHOMETER ASSY (SCALE PLATE | J; Includes Item(s) 8 - 11 This part replaces 34200-28011.

34201-28014

Unavailable

8

SCOKET, TACHOMETER

34270-28010

Unavailable

9

WASHER (5.5X16X1.2) | J This part replaces 09160-05017.

09160-05043

$2.30

10

BULB | 6V, 3W

09471-06002

$2.25

11

BULB | 6V, 3W

09471-06001

$2.18

12

BRACKET, METER | R

34950-28010

Unavailable

13

BRACKET, METER | J

34950-28011

Unavailable

14

CUSHION, METER (A)

34955-28010

$3.84

15

CUSHION, METER (B) | R

34956-28010

Unavailable

15

CUSHION, METER (B) | J

34956-28011

Unavailable

16

PLATE, METER | R

34961-28010

Unavailable

17

PLATE, METER | J

34961-28011

Unavailable

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

NUT This part replaces 08311-31058.

08310-00057

$1.84

20

SPACER, METER

34972-28010

Unavailable

21

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

CABLE ASSY, SPEEDOMETER | L:810; Includes Item(s) 24 This part replaces 34910-29031.

34910-21230

Unavailable

24

OIL SEAL

34928-01030

$2.92

25

CABLE ASSY, TACHOMETER | Includes Item(s) 26

34940-32030

Unavailable

26

OIL SEAL This part replaces 34928-08430.

34943-11030

$3.11
