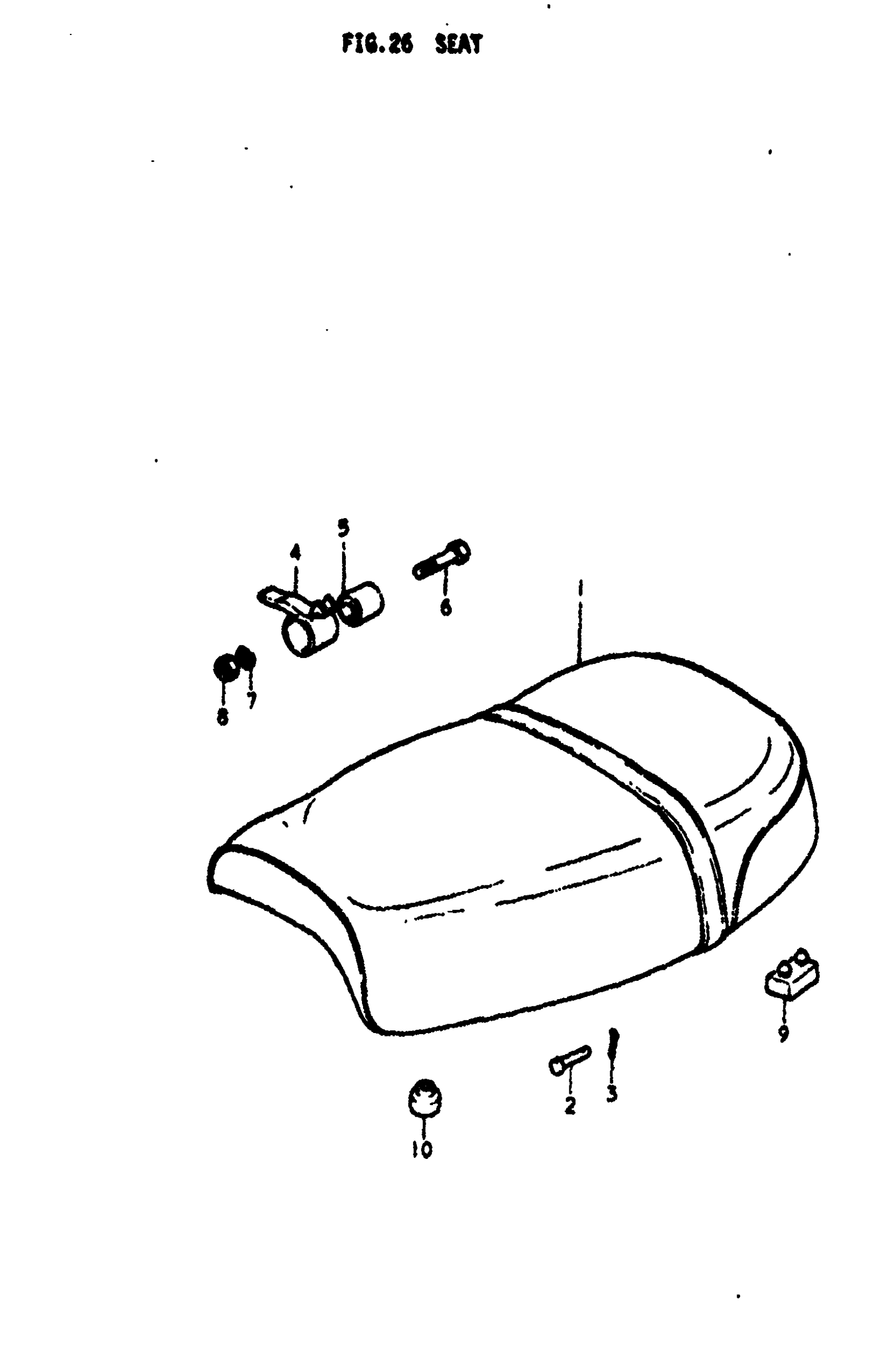

Suzuki TS125 (1972) SEAT Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | TO 45100-28830-403 This part replaces 45100-28000-403.

45100-28831-865

Unavailable

2

PIN, SEAT SUPPORT

09200-06018

$2.06

3

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

4

CLAMP, SEAT | TO 45211-26001; Includes Item(s) 5 This part replaces 45210-25000.

45211-26001

Unavailable

5

BUSHING, SEAT CLAMP

09319-08007

Unavailable

6

BOLT This part replaces 01122-08458.

01500-08453

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

NUT This part replaces 08312-11088.

08310-00087

$2.13

9

CUSHION, SEAT

09321-08006

$2.90

10

CUSHION, SEAT

09321-10002

$2.22
