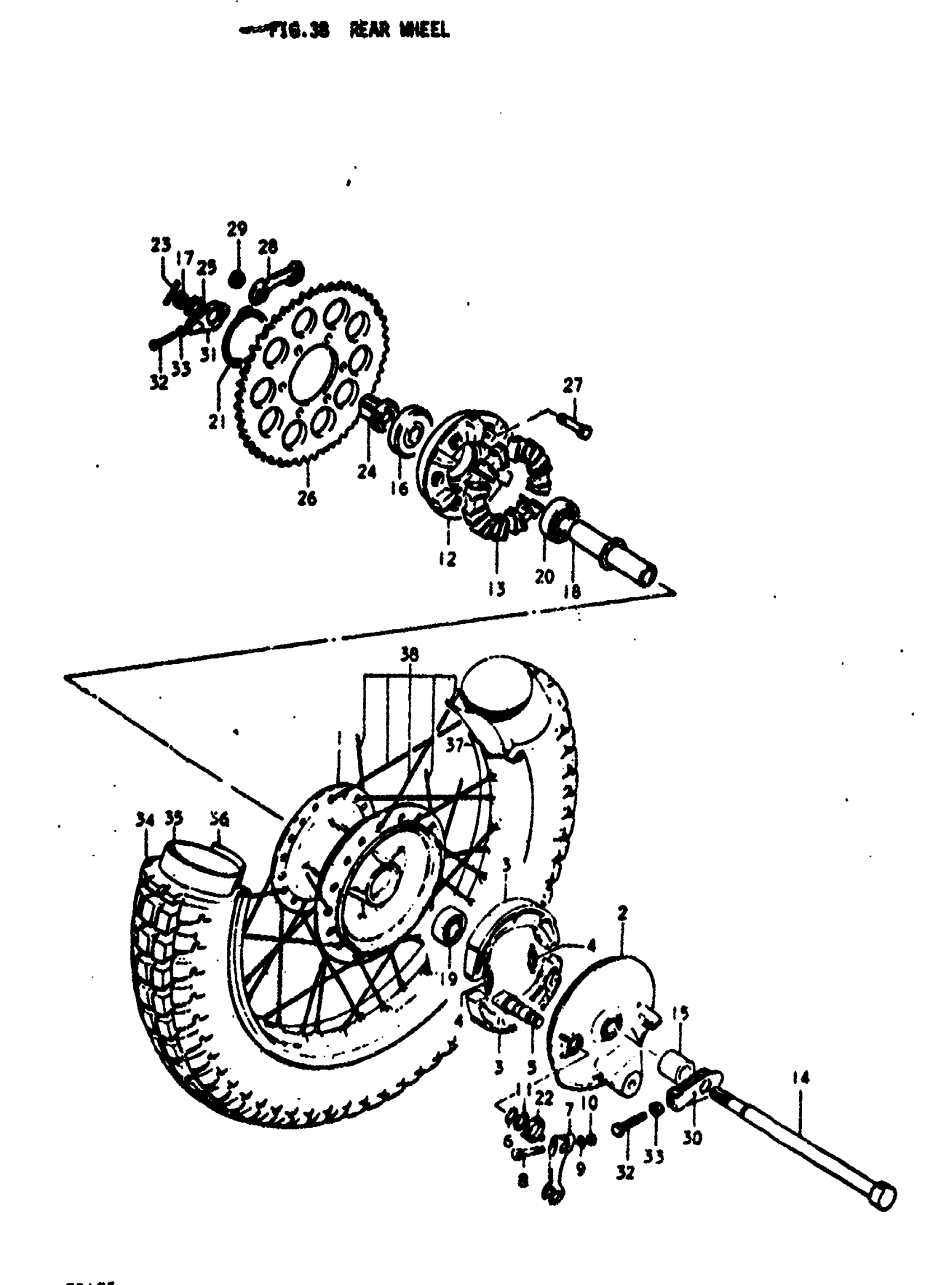

Suzuki TS125 (1972) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL | TO 64110-28002

64110-28001

Unavailable

2

PANEL | TO 64210-25500

64210-28002

Unavailable

3

SHOE SET, BRAKE | TO 54410-07002 This part replaces 54410-07001.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE

54441-28001

Unavailable

6

DUST GEAL, BRAKE CAM

09280-12001

$2.90

7

LEVER, BRAKE CAM

64451-28000

Unavailable

8

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

WASHER, DUST SUEL

09160-12011

$1.54

12

DRUM, SPROCKET MOUNTING

64610-28001

Unavailable

13

ASBORBER, HUB DRUM | TO 64650-28001 This part replaces 64650-28000.

64650-28002

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 64711-28001.

64711-4130V

Unavailable

15

SPACER, RH This part replaces 09180-15010.

09180-15038

$7.77

16

SPACER, REAR AXLE LH

64750-28000

Unavailable

17

NUT This part replaces 08314-31128.

08314-3112A

$2.41

18

SPACER, BEARING

64730-28000

Unavailable

19

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

20

BEARING This part replaces 08123-63020.

08123-6302B

$22.74

21

CIRCLIP This part replaces 08331-11558.

08331-31559

$6.20

22

SPRING, CAM LEVER

09448-27003

Unavailable

23

PIN This part replaces 04111-30308.

04111-3030A

$1.49

24

SPACER, CHAIN ADJUSTER | L:25

64791-28000

Unavailable

24

SPACER, CHAIN ADJUSTER | L:27

64791-28001

$23.32

25

NUT This part replaces 09140-18001.

09140-18501

$2.93

26

SPROCKET, REAR | NT:50

64511-28000

Unavailable

26

SPROCKET, REAR | NT:49, OPT

64511-28700

Unavailable

26

NO DESCRIPTION AVAILABLE | NT:51, OPT This part replaces 64511-28710.

64511-28770

Unavailable

27

BOLT, REAR SPROCKET | R

09105-08006

Unavailable

27

BOLT, REAR SPROCKET | J

09105-08001

$2.06

28

WASHER, REAR SPROCKET

09169-08013

$2.23

29

NUT This part replaces 08312-11088.

08310-00087

$2.13

30

ADJUSTER, CHAIN RH | 6SCREW

61410-28001

Unavailable

30

ADJUSTER,CHAIN, | 8SCREW This part replaces 61410-28002.

61410-28005

$10.09

31

ADJUSTER, CHAIN LH | 6SCREW

61420-28001

Unavailable

31

LH CHAIN ADJUST | 8SCREW This part replaces 61420-28002.

61420-28004

$11.48

32

BOLT, ADJUSTER | 6SCREW

09100-06065

$2.47

32

BOLT | 8SCREW This part replaces 09100-08099.

09100-08146

$2.82

33

.NUT | 6SCREW This part replaces 08311-11068.

08310-00067

$2.13

33

NUT | 8SCREW This part replaces 08312-11088.

08310-00087

$2.13

34

TIRE, REAR | 3,25-18 SEMI-KNOBBY

65100-28610

Unavailable

35

TUBE ASSY, WHEEL INNER | 3.25-18 This part replaces 65200-18010.

65200-44AA0

$53.43

36

IN TUBE PROTECT This part replaces 65261-11010.

55261-26F10

$4.39

37

RIM, REAR WHEEL

65311-29601

Unavailable

38

SPOKE SET, REAR

65300-28807

Unavailable
