1972 Suzuki TS125 Rear Swinging Arm Diagram

← All diagrams

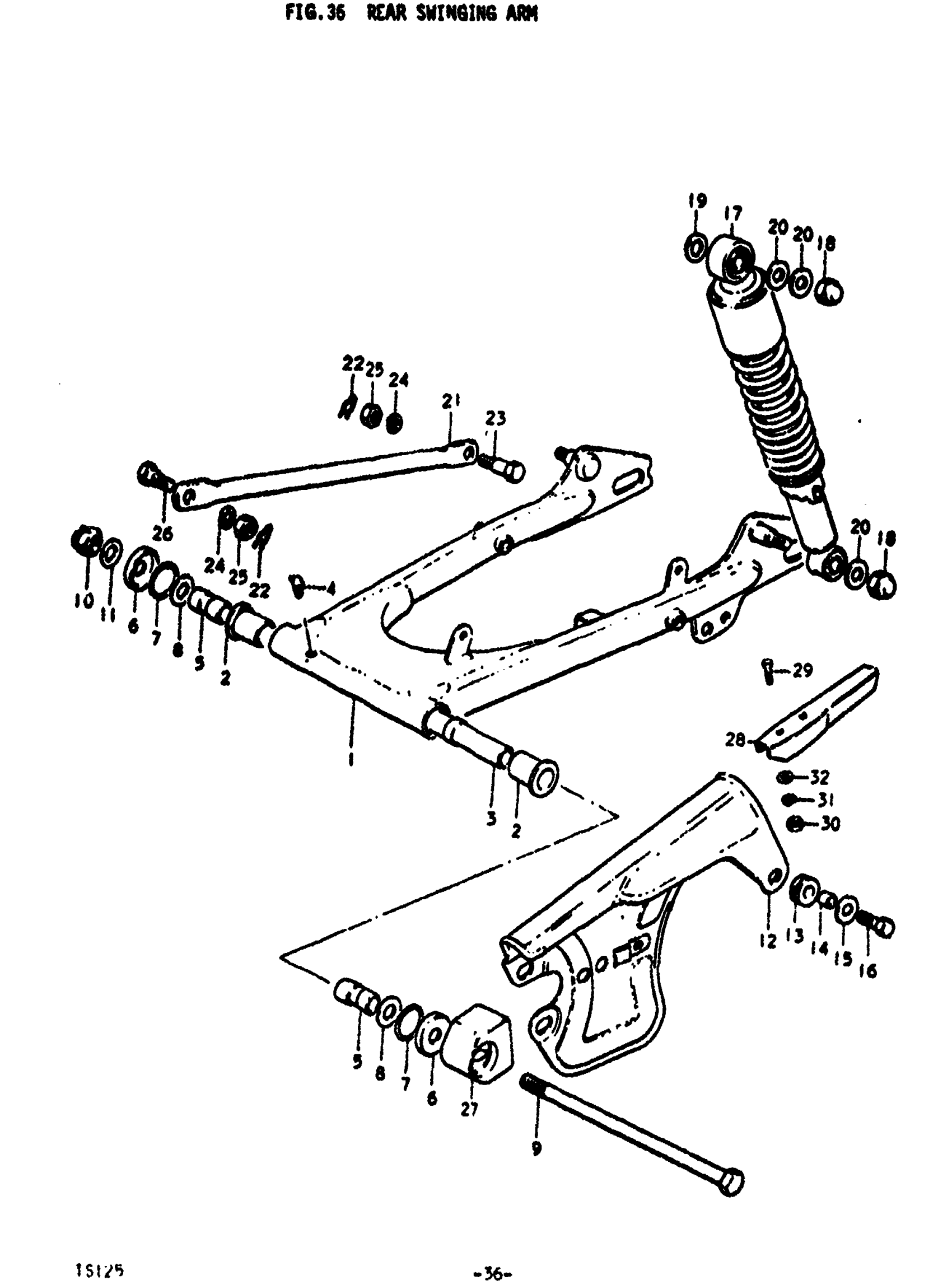

Find the part on the Rear Swinging Arm diagram for your 1972 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS125 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | TO 61100-28841-019; Includes Item(s) 2 - 4

61100-28840-019

—
Out of stock

2

BUSHING This part replaces 09307-18001.

09307-18002

2
Out of stock

3

SPACER, ARM CENTER

61280-28000

1
Out of stock

4

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

1
Out of stock

5

SPACER, ARM PIVOT

61251-28000

2
Out of stock

6

COVER, DUST SEAL

61262-09200

2
Out of stock

7

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

2
Out of stock

8

THRUST WASHER

09160-12005

2
Out of stock

9

SHAFT, PIVOT

61211-28600

—
Out of stock

10

NUT, PIVOT

09159-12101

—
Out of stock

11

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

12

CASE, CHAIN This part replaces 61310-28000-126.

61310-28000-019

1
Out of stock

13

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

3
Out of stock

14

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

3
Out of stock

15

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

3
Out of stock

16

BOLT This part replaces 01112-06128.

01500-06127

3
Out of stock

17

SHOCK ABSORBER ASSY, REAR | CHROMN-PLATED

62100-28600

—
Out of stock

18

NUT This part replaces 08313-11107.

08313-10107

4
Out of stock

19

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

20

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

6
Out of stock

21

TORQUE LINK REA This part replaces 64311-28000.

64311-28000-019

1
Out of stock

22

CLIP, REAR TORQUE LINK

09384-06001

2
Out of stock

23

BOLT, REAR BRAKE PANEL

09111-08013

1
Out of stock

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

2
Out of stock

25

NUT, REAR TORQUE LINK

09140-08008

2
Out of stock

26

BOLT, REAR TORQUE LINK

09111-08015

1
Out of stock

27

BUFFER,CHAIN TO This part replaces 61273-28000.

61273-28002

1
Out of stock

28

END, CHAIN CASE | OPT

61331-30000

1
Out of stock

29

BOLT | OPT This part replaces 01112-06108.

01500-06107

2
Out of stock

30

NUT | OPT

08311-11066

—
Out of stock

31

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

2
Out of stock

32

WASHER | OPT This part replaces 08322-21068.

08322-01067

2
Out of stock
