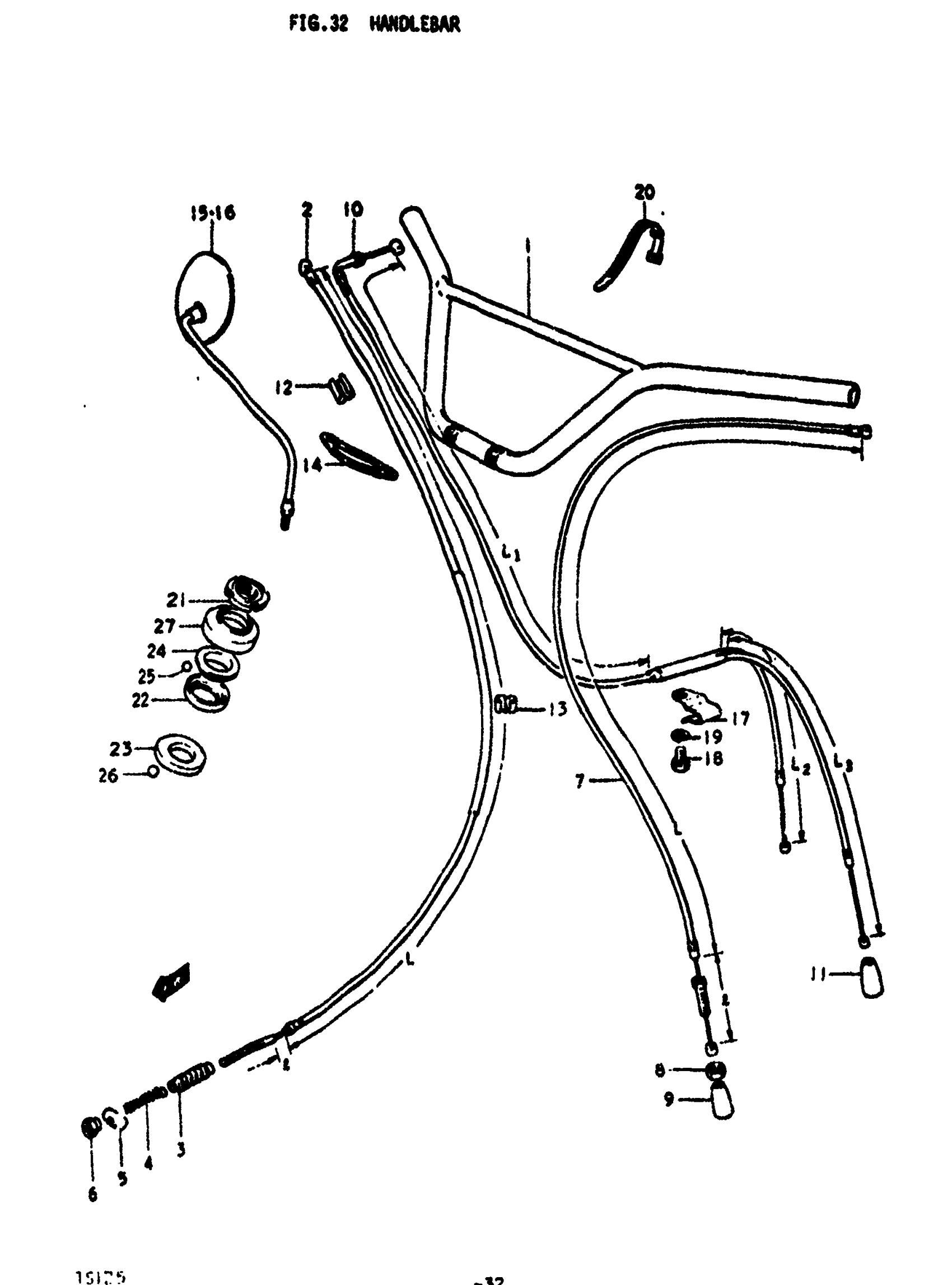

Suzuki TS125 (1972) HANDLEBAR Diagram

#

Description
Price

1

HANDLEABAR

56110-28000

Unavailable

2

CABLE,FR BRAKE | L:1110, L:66; Includes Item(s) 3 - 6 This part replaces 58100-28100.

58100-28090

$19.30

3

DUST SEAL, BRAKE CABLE

09287-07001

$2.01

4

SPRING, BRAKE CABLE

09440-06003

$2.67

5

PIN, BRAKE CABLE

09209-10001

$1.33

6

NUT, CABLE ADJUSTING

09150-05101

$2.80

7

CABLE ASSY, CLUTCH | L:1000, l:121; Includes Item(s) 8 - 9

58200-28000

Unavailable

8

NUT This part replaces 08312-11088.

08310-00087

$1.83

9

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.50

10

CABLE,THROTTLE | L1:806, L2:193 L3:414 This part replaces 58300-28000.

58300-28002

Unavailable

11

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.50

12

CLIP, CABLE A | L:25

09408-00001

Unavailable

13

CLIP, CABLE B | L:10

09408-00002

$2.20

14

GUIDE, CABLE

58621-28000

Unavailable

15

MIRROR ASSY,RR This part replaces 56500-19010.

56500-19013

Unavailable

16

MIRROR ASSY,RR This part replaces 56600-19010.

56600-19013

Unavailable

17

CLAMP, CONNECTOR

09403-09308

Unavailable

18

BOLT This part replaces 01112-06108.

01500-06107

$2.07

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

20

BAND

09407-12402

$2.80

21

NUT, STEARING STEM

51631-28000

$19.60

22

RACE,STEERING INNER UPPER

51611-20002

$13.50

23

INNER RACE, STEERING LOWER

51611-33002

$13.02

24

RACE,STEERING OUTER UPPER

51621-28000

$13.50

25

STEEL BALL

06111-06003

$1.24

26

STEEL BALL

06111-08003

$1.30

27

DUST SEAL,STEERING UPPER

51643-25001

$4.17
