1972 Suzuki TS125 Piston - Crankshaft Diagram

← All diagrams

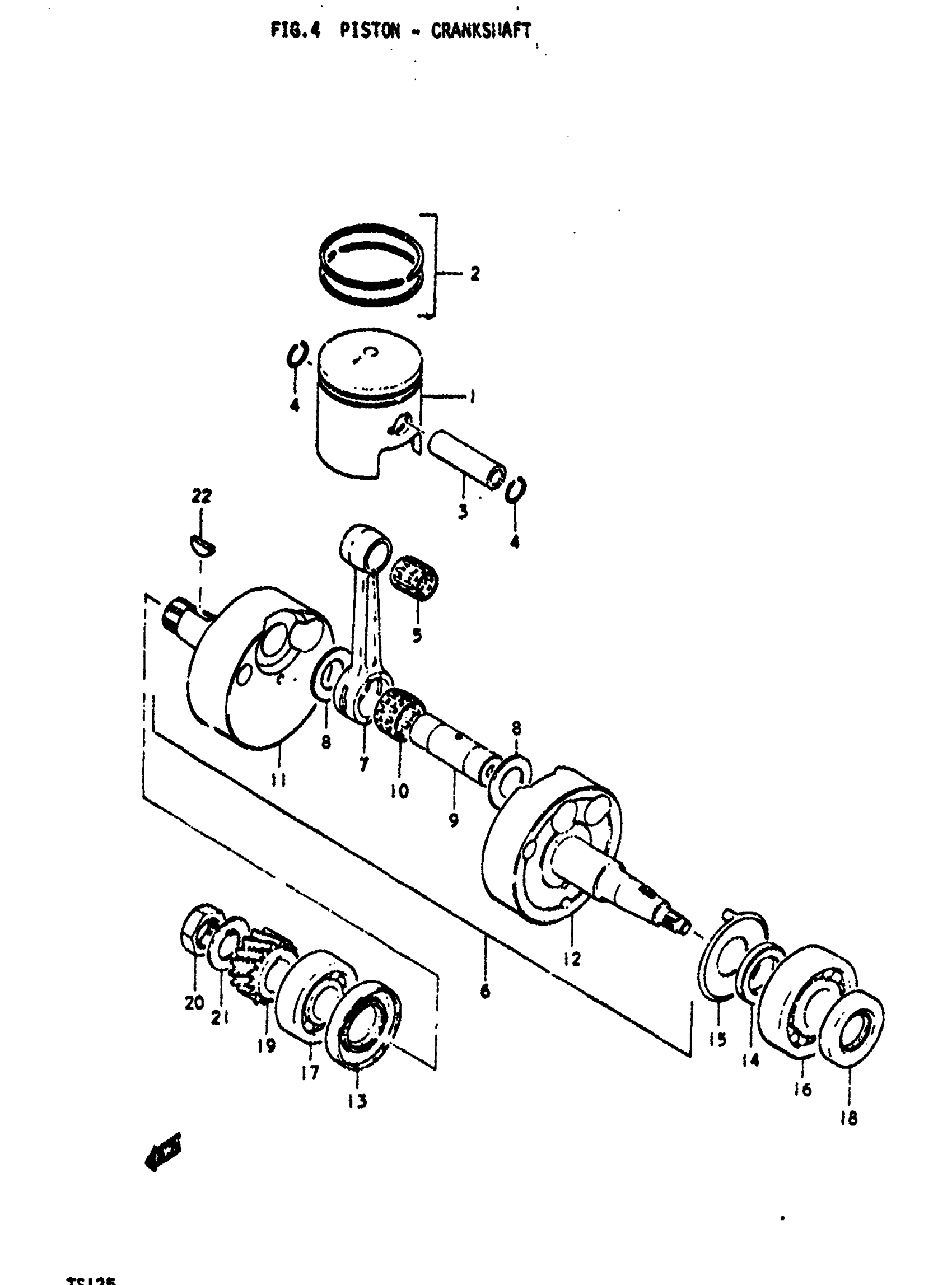

Find the part on the Piston - Crankshaft diagram for your 1972 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS125 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD | TO 12110-28001 This part replaces 12110-28000.

12110-48001

1
Out of stock

1

PISTON SET,OS:. | 05:0.5 TO 12110-28711 This part replaces 12110-28710.

12100-48000-050

1
Out of stock

1

PISTON SET,OS:1 | O.S:1.0 TO 12110-28721 This part replaces 12110-28720.

12100-48000-100

1
Out of stock

2

RING SET, PISTO This part replaces 12140-28010.

12140-28021

1
Out of stock

2

RING SET PISTON | OS:0.5 This part replaces 12140-28710.

12140-28011-050

1
Out of stock

2

RING SET PISTON | OS:1.0 This part replaces 12140-28720.

12140-28011-100

1
Out of stock

3

PIN This part replaces 12151-28000.

12151-05200

1
Out of stock

4

RING

09381-14001

2
Out of stock

5

ROLLR BRG,14X18 This part replaces 09263-14004.

09263-14022

1
Out of stock

6

CRANKSHAFT SET | TO 12200-28830; Includes Item(s) 7 - 12

12003-28803

—
Out of stock

7

CONNECTING ROD This part replaces 12161-12000.

12161-39300

1
Out of stock

8

THRUST WASHER | 19x32x1

09160-19001

2
Out of stock

9

CRANK PIN

12211-28000

1
Out of stock

10

BEARING | TO 09263-19007 This part replaces 09263-19003.

09263-19009

1
Out of stock

11

CRANKSHAFT, RH | TO 12221-28002

12221-28001

—
Out of stock

12

NO DESCRIPTION AVAILABLE | TO 12261-28003 This part replaces 12261-28002.

12261-41001

1
Out of stock

13

OIL SEAL, CRANK RH | J; 26x52x7

09283-26007

1
Out of stock

14

SPACER, CRANKSHAFT | 30x25x4.5

09180-25041

1
Out of stock

15

PLATE, OIL GUIDE

12511-28002

1
Out of stock

16

BEARING, CRANK LH | R; TO 09269-25013 This part replaces 09269-25006.

09269-25013

1
Out of stock

16

BEARING, CRANK SHAFT LH | J

09269-25013

1
Out of stock

17

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

1
Out of stock

18

OIL SEAL, LH This part replaces 09283-25037.

09283-25066

1
Out of stock

19

NO DESCRIPTION AVAILABLE | NT:16 This part replaces 21111-28000.

21111-28001

1
Out of stock

20

NUT

09140-18002

1
Out of stock

21

WASHER

09166-18001

1
Out of stock

22

KEY

08341-31059

1
Out of stock
