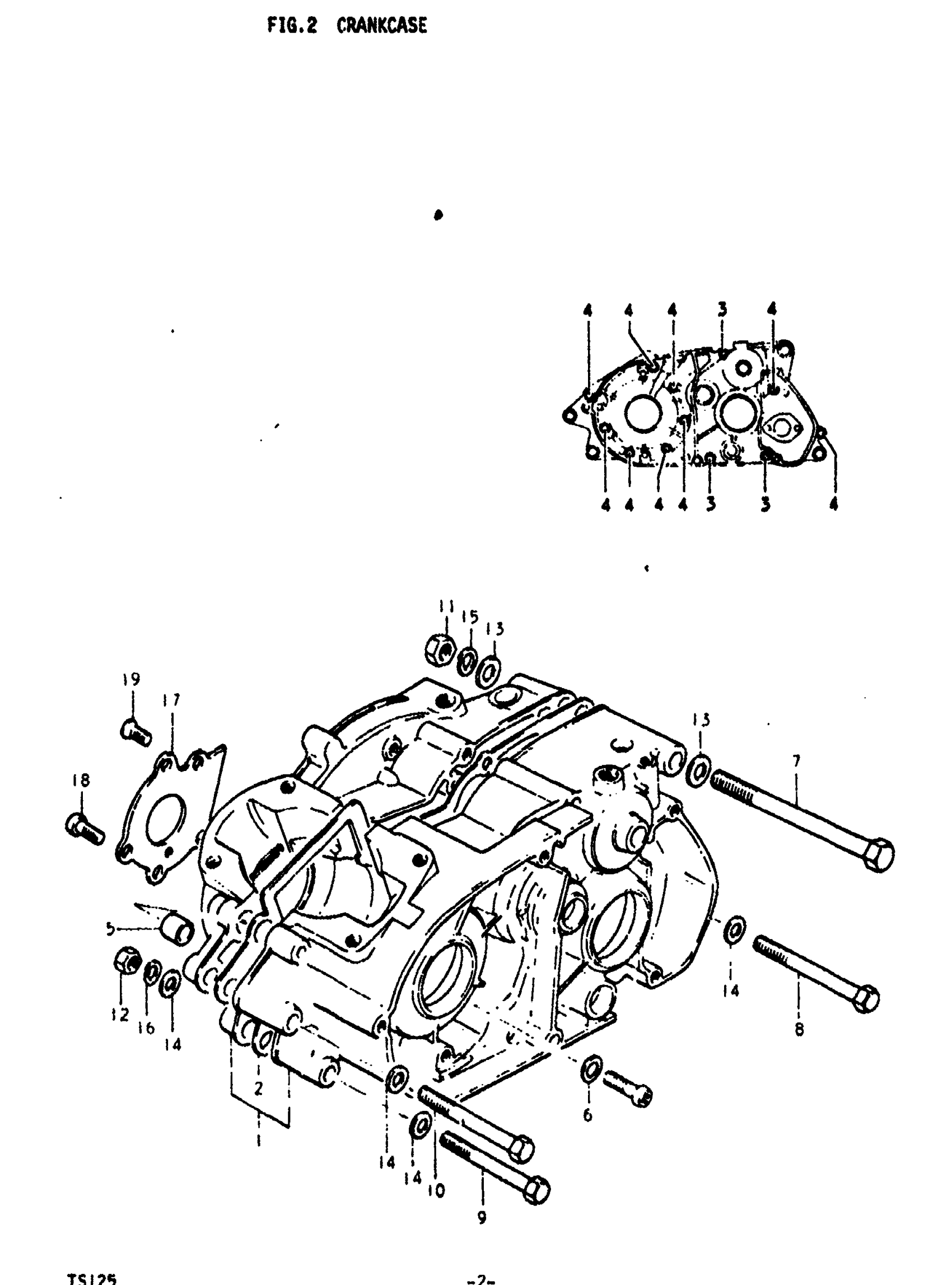

Suzuki TS125 (1972) CRANKCASE Diagram

#

Description
Price

1

CRANNCASE SET | TO 11300-28830 SEE NOTE; Includes Item(s) 2 - 6 This part replaces 11301-28802.

11300-28831

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-28000.

11481-28001

Unavailable

3

SCREW

02112-06657

$2.64

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.77

5

PIN This part replaces 09206-13001.

04211-13189

$2.19

6

.WASHER This part replaces 08322-11068.

08322-0106B

$2.24

7

BOLT | 10x115 This part replaces 09100-10060.

09116-10032

$6.27

8

BOLT This part replaces 01122-08808.

01500-0880B

$4.45

9

BOLT This part replaces 01122-08758.

01500-0875B

$4.45

10

BOLT This part replaces 01122-08708.

01500-0870B

$4.45

11

NUT This part replaces 08312-11108.

08310-00107

$2.19

12

NUT This part replaces 08312-11088.

08310-00087

$1.83

13

WASHER This part replaces 08322-11108.

08322-01107

$1.88

14

WASHER This part replaces 08322-11088.

08322-01087

$1.86

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

17

PLATE, OIL RESERVOIR | FROM 12561-28002

12521-28002

Unavailable

18

SCREW This part replaces 02122-06128.

02122-06127

$1.83

19

SCREW This part replaces 02122-06168.

02122-06167

$1.45
