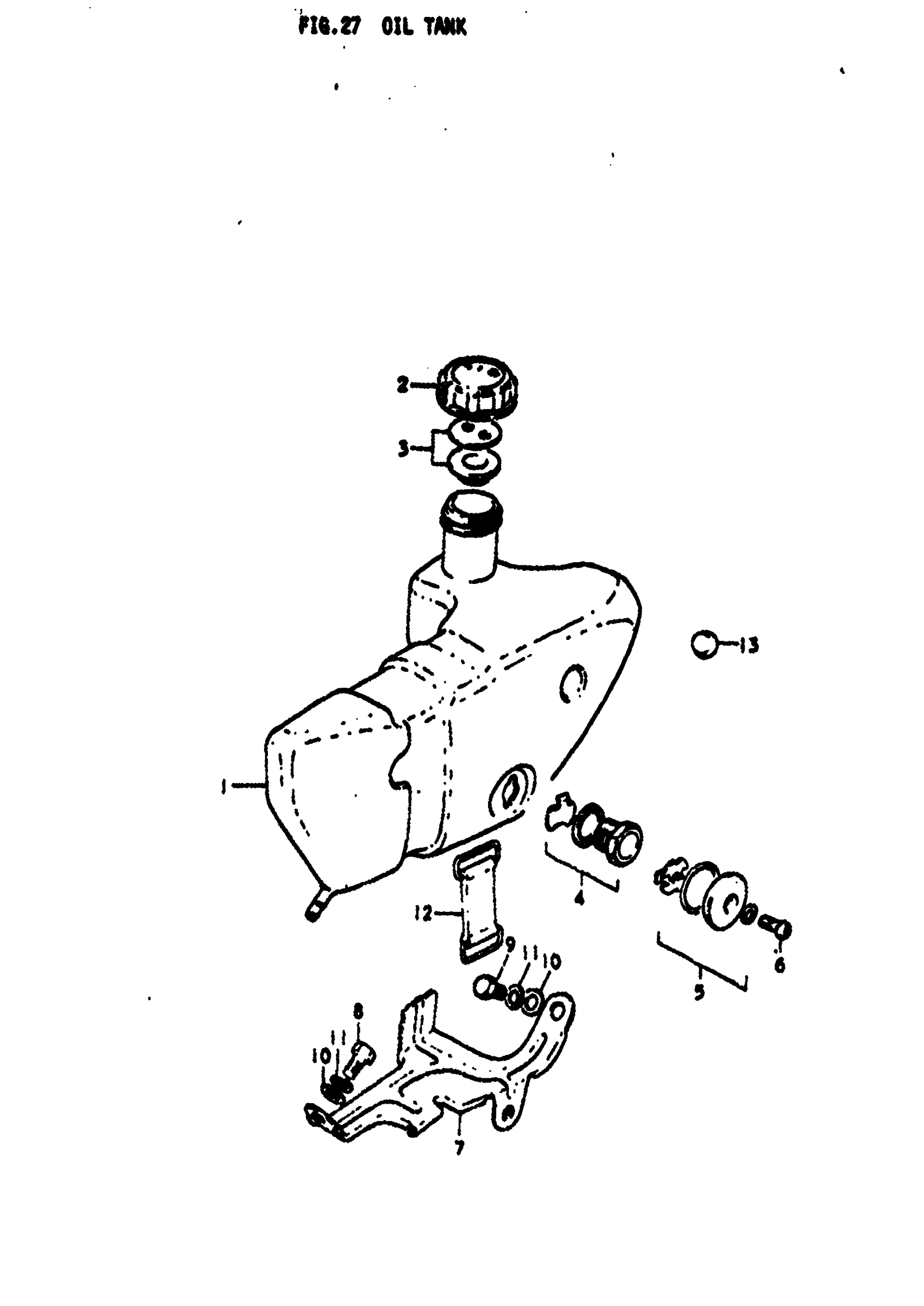

Suzuki TS125 (1972) OIL TANK Diagram

#

Description
Price

1

TANK, OIL

44611-28002

Unavailable

2

CAP, OIL TANK This part replaces 44651-05000.

44651-05003

$5.05

3

GASKET SET This part replaces 44600-35820.

44600-30833

$5.42

4

OIL LEVEL INSPE | J This part replaces 44600-31830.

44600-31832

$11.07

5

LENS SET, OIL INSPECTION | R

44640-11844

Unavailable

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

HOLDER, OIL TANK | TO 44820-28001 This part replaces 44820-28000.

44820-28001

Unavailable

8

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

9

BOLT This part replaces 01112-06108.

01500-06107

$2.06

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

BAND, OIL TANK

09462-00043

$4.11

13

CUSHION This part replaces 09321-06013.

09321-06036

$1.52
