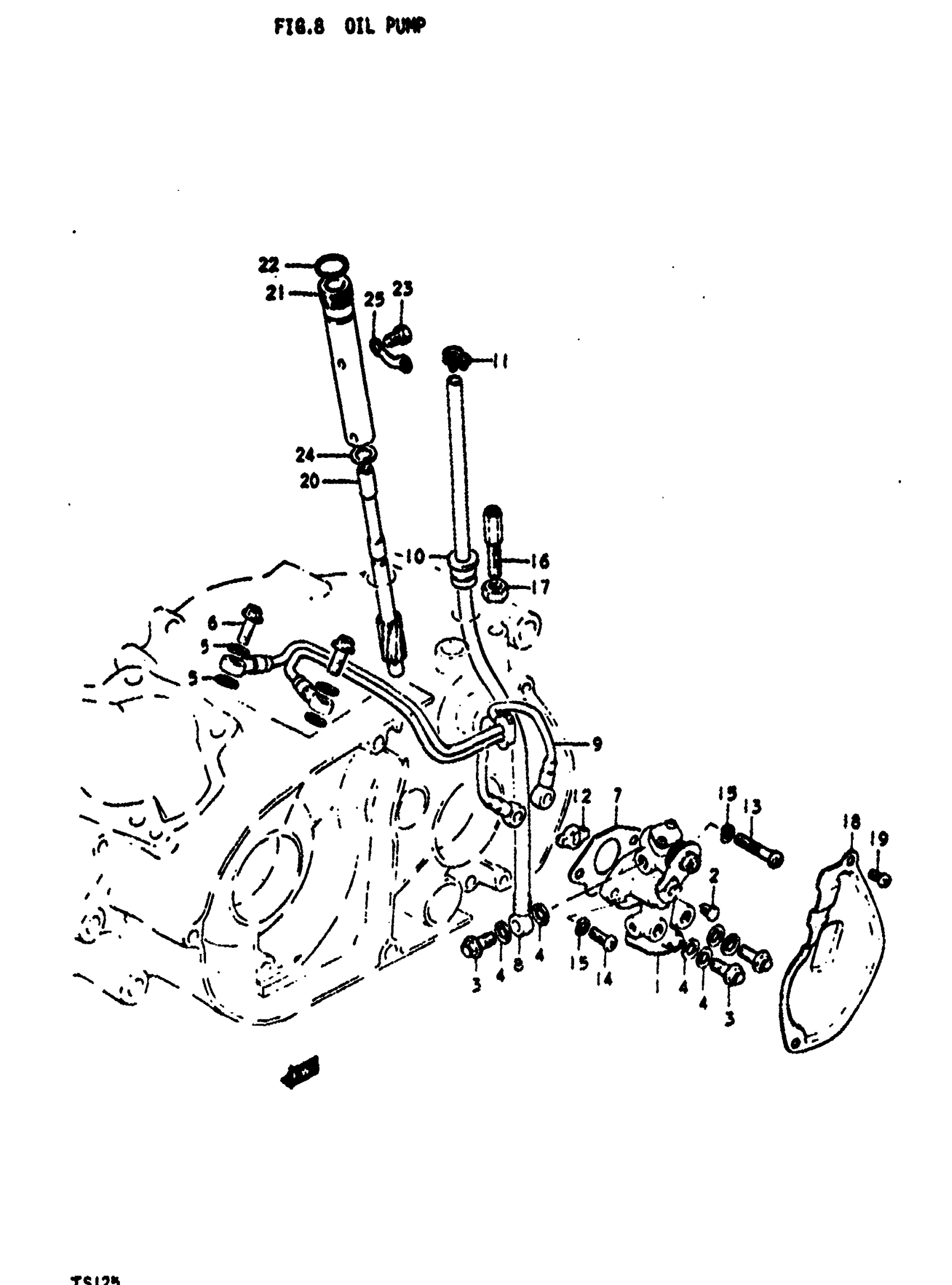

Suzuki TS125 (1972) OIL PUMP Diagram

#

Description
Price

1

OIL PUMP SET | Includes Item(s) 2 - 4

16100-28830

Unavailable

2

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

$5.05

3

UNION BOLT, OIL HOSE

09360-06003

$3.76

4

GASKET This part replaces 09168-06002.

09168-06004

$1.49

5

GASKET, OIL HOSE UNION

09168-06003

Unavailable

6

UNION BOLT, OIL PUMP

09360-06003

$3.76

7

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

8

HOSE, OIL (L:512!97) This part replaces 16810-35030.

16810-07520

Unavailable

9

HOSE, OIL B

16820-28030

Unavailable

10

GROMMET, OIL HOSE INLET

09305-09002

Unavailable

11

OIL HOSE CLAMP This part replaces 09400-10301.

09400-10302

Unavailable

12

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

$3.65

13

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

14

SCREW This part replaces 02112-05168.

02112-05167

$1.97

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

BOLT, CABLE ADJUSTER

09119-08014

$3.55

17

NUT This part replaces 08312-11088.

08310-00087

$2.13

18

CAP, OIL PUMP INSPECTION | TO 11380-27300

11385-25001

Unavailable

19

SCREW This part replaces 02112-06108.

02112-06107

$1.49

20

GEAR, TACHOMETER DRIVEN | NT:10

26431-28001

Unavailable

21

SLEEVE,TACHOMET This part replaces 26441-28001.

26441-28002

$24.20

22

O RING, GEAR SLEEVE

09280-10001

$2.02

23

BOLT, GEAR SLEEVE

09135-06009

$2.23

24

WASHER

09160-08003

$2.23

25

CLAMP, BATTERY EXHAUST PIPE | TO 09404-07704

09404-07702

Unavailable
