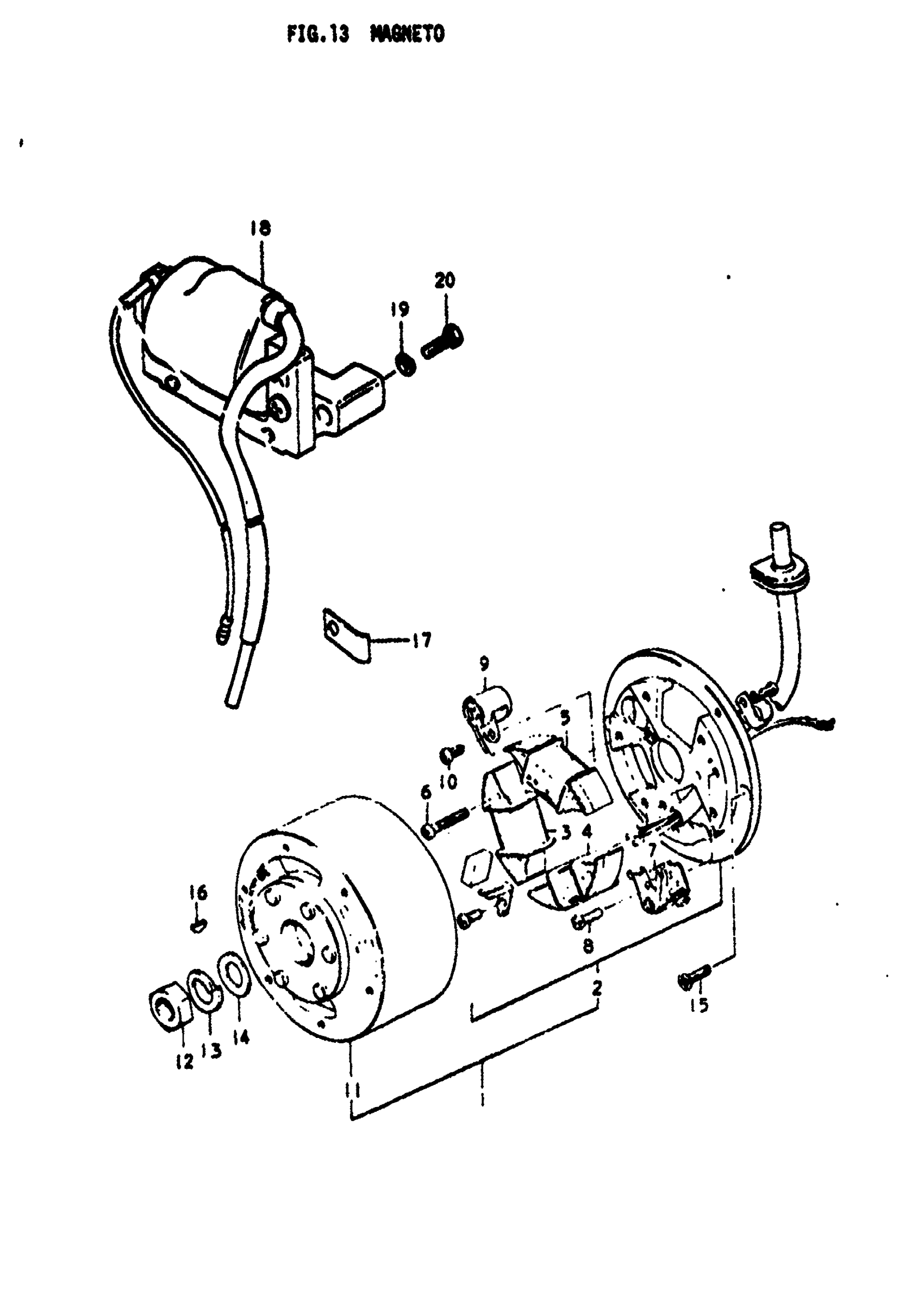

Suzuki TS125 (1972) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | TO 32100-28611; Includes Item(s) 2 - 11

32100-28610

Unavailable

2

STATOR ASSY | TO 32101-28611 This part replaces 32101-28610.

32101-28611

Unavailable

3

COIL, LIGHTING A

32120-28610

Unavailable

4

COIL, LIGHTING B | TO 32130-28611

32130-28610

Unavailable

5

COIL, PRIMARY

32140-28010

Unavailable

6

SCREW (4X30) This part replaces 02111-04308.

09125-04023

$2.30

7

CONTACT POINT This part replaces 32240-28010.

32240-43012

$38.45

8

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

9

CONDENSER | TO 32341-12011 This part replaces 32341-12010.

32341-12011

Unavailable

10

SCREW This part replaces 02111-04107.

02112-04107

$1.55

11

ROTOR | TO 32102-28011

32102-28010

Unavailable

12

NUT This part replaces 09140-10003.

09140-10041

$2.38

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

14

WASHER This part replaces 08322-21108.

08322-01107

$2.15

14

WASHER This part replaces 08322-11108.

08322-01107

$2.15

15

SCREW This part replaces 02122-06168.

02122-06167

$1.49

16

KEY

08341-31039

$1.89

17

CLAMP | TO 09404-06401 This part replaces 09403-00075.

09404-06039

$1.74

18

IGNITION COIL A This part replaces 33410-22220.

33410-22221

Unavailable

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

BOLT, RUBBER STOP This part replaces 01111-05128.

01500-05127

$2.10
